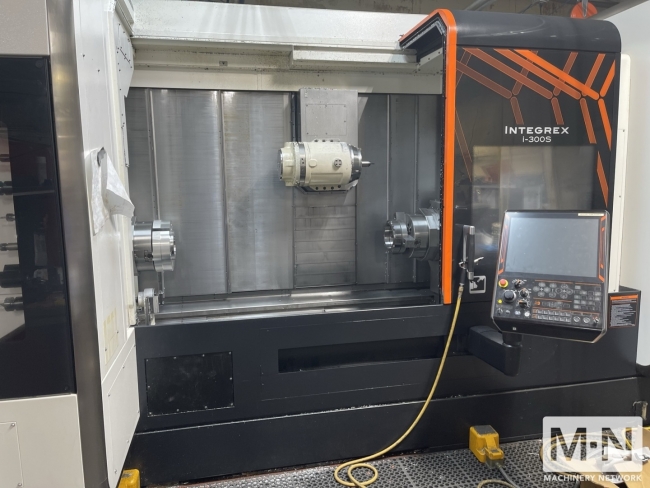

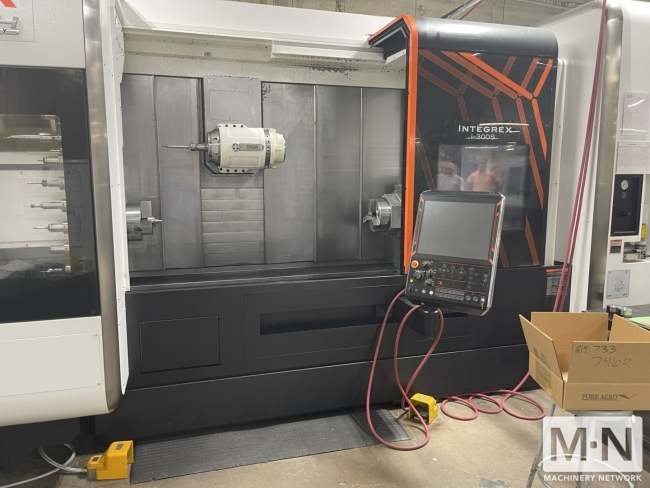

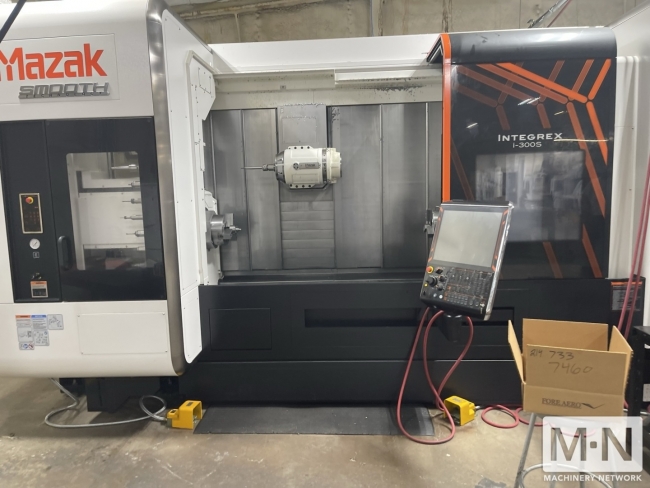

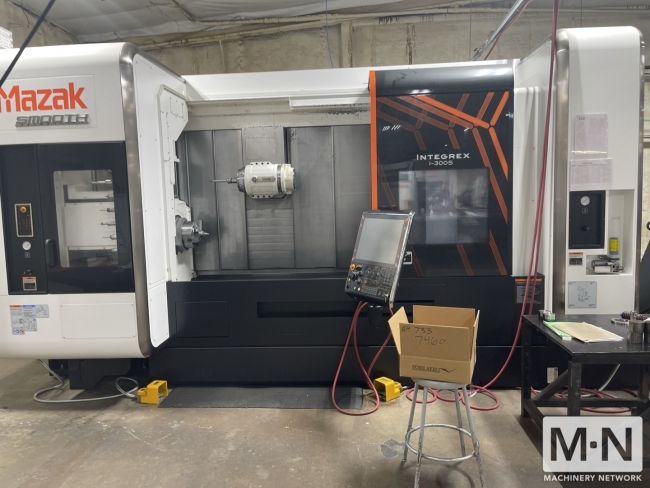

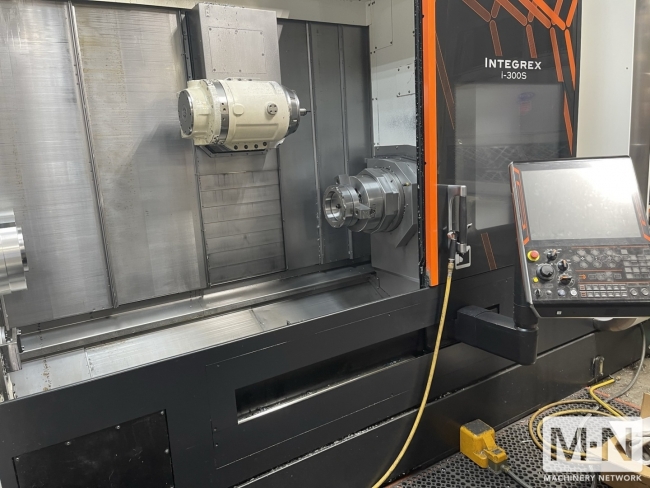

Mazak Integrex i-300S-1500 5-Axis DELIVERED NEW 10/21
Type:
Multitasking Machining Centers
Manufacturer:
MAZAK
Model:
INTEGREX I-300S-1500U
Condition:
Not Specified
Year:
2020
Stock #:
41105
Status:
Sold
Description:
5-Axis Turning Center, 36 ATC, Mazatrol Smooth X Control, 25.91” Max Swing, 25.910” Max Machining Dia, 59.8” Max Machining Length, 3.2” Max Bar Work Capacity, 4000 RPM Main Spindle, 4000 RPM Sub Spindle, 12,000 RPM Milling Spindle, 240 Degree B-Axis Travel, X-24.21”, Y-10.24”, Z-62.40”, W-61.97”
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
X
Y
Z
Power
RPM
# ATC
# Axis
Machine New on 11/19 BUT Delivered New to Customer on 10/21

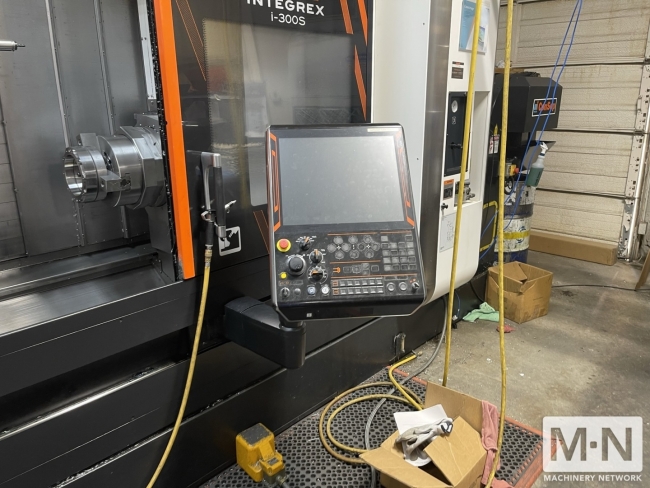

MAZATROL SMOOTHX CNC
19" COLOR LCD (TOUCH SCREEN)
EIA/ISO PACKAGE
3-D COORDINATE CONVERSION
B)G00 SLOPE CONSTANT
B)CYLINDRICAL (G07) & POLAR COORDINATE (G12)(EIA)
SMOOTH SYNCHRONOUS TAPPING (MILLING-SPINDLE)
EIA 1ST SPINDLE & MILL SPINDLE INDEPENDENT ROTATION
INCH/METRIC CONVERSION
SD MEMORY I/F(1-PORT) + USB I/F(1-PORT)
LAN PORT
USB I/F (1-PORT)
ROLLER GUIDES
SAFETY SHIELD (AUTOMATIC & MANUAL OPERATION)
ABSOLUTE POSITIONING SYS (LINEAR AXES)
X,Y,Z PITCH ERROR COMPENSATION INPUT
COMPLETE COOLANT SYSTEM
COOLANT THROUGH MILLING HEAD
15KG/213 PSI THRU COOLANT/ FLOOD SIMUL-FLOWABLE
PREPARATION FOR CHIP CONVEYOR (SIDE/CONSEP OR HINGE) US
1ST SPINDLE BORE DIA.91MM(3.58")
1ST SPINDLE MOTOR AC 30KW(40HP)/A2-08 NOSE
1ST SPINDLE SPEED 4000 RPM
C1-AXIS POSITIONING 0.0001 DEG CONTOURING (FIRST SPINDLE)
SECOND SPINDLE MOTOR AC26KW(35HP)/A2-08 NOSE
SECOND SPINDLE SPEED 4000 RPM
C2-AXIS 0.0001 DEG. CONTOURING WITH C-AXIS C1-C2 SYNCHRONOUS
CHUCK AIR BLAST (SECOND SPINDLE)
10" THRU-HOLE CHUCK B210A0815X W/S2078-15Y CYL. (1ST SPINDLE)
10" THRU-HOLE CHUCK B210A0815X W/NON-THRU CYL. (2ND SPINDLE)
36 CAPTO-TOOL MAGAZINE
NUMBER DISPLAY MAGAZINE PANEL (TOOL ID N/A)
MILL-SPINDLE SPEED 12000 RPM (OIL & AIR LUBRICATION) 24KW
B-AXIS 0.0001 DEGREE CONTOURING (REQUIRES EIA/ISO)
ONE SET OF MANUALS (CD)
FOUNDATION KIT(PLATES)
MAZAK STANDARD COLOR (FROST WHITE / SATIN BLACK)
TOOL EYE (AUTOMATIC)
AUTO CHUCK JAWS OPEN/CLOSE (1ST & 2ND SPINDLE)
CHUCK OPEN/CLOSE CONFIRMATION (1ST & 2ND SPINDLE)
AUTO POWER ON/OFF + WARM-UP
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
COOLERS FOR BALL SCREW (X-AXIS)
ELECTRICAL CONTROL BOX UL STANDARD(240V)
POWER TRANSFORMER FOR NORTH AMERICAN MARKET
RELOCATION DEVICE
WINDOWS 8 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
5 CERTIFIED FOUNDATION DRAWING DPT#5
9 STANDARD UNLIMITED PROGRAM TRAINING FOR 3 YEARS DPT#9
9 PROPOSAL IS ONLY VALID FOR THE ADDRESS SHOWN ABOVE. DPT#9
9 BUYER MUST COMPLY WITH EXPORT LAW #22 ACKNOWLEDGEMENT DPT#9
SECOND YEAR PART ONLY WARRANTY FROM FACTORY DPT#69 / DPT#0
3 SIGNAL TOWER (3 COLORS LIGHTS,SQUARE)
CONSEP WS CHIP CONVEYOR SIDE DISPOSAL FOR 60" (MAYFRAN)
RE-THREADING FUNCTION
EIA DYNAMIC COMPENSATION 2 (INCLUDES 1)
SMOOTH GEAR HOBBING (REQUIRES HOBBING & ESCAPE FUNCTION)
SMOOTH GEAR MILLING
5-AXIS MACHINING PACKAGE FOR SMOOTHX
2ND SPDL. SIMULTANEOUS 5 AXES SOFTWARE(REQ. CONTOURING & 5X)
F)TOOL RADIUS COMPENSATION / 5-AXIS (G41.5 / G42.5)
TOOL LENGTH COMP IN TOOL AXIS DIRECTION (G43.1)
MAXIMUM PROGRAM SIZE : 32MB
MT CONNECT ADAPTER SOFTWARE DPT#3
ENG# 108145 - FIELD INSTALL HOBBING FUNCTION (W/OVERRIDE
W/O TOOL)
