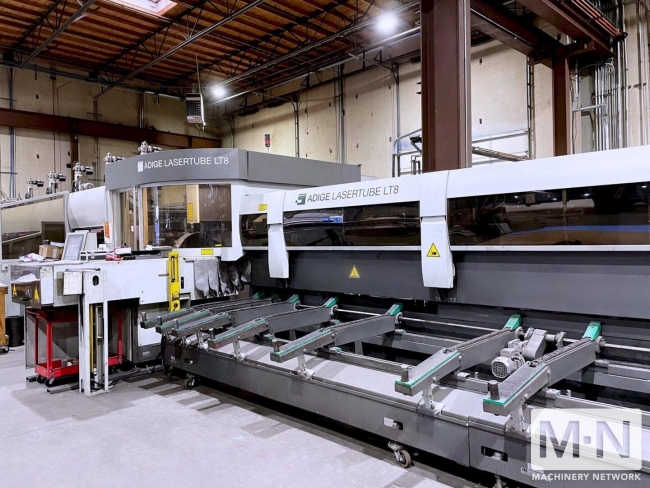

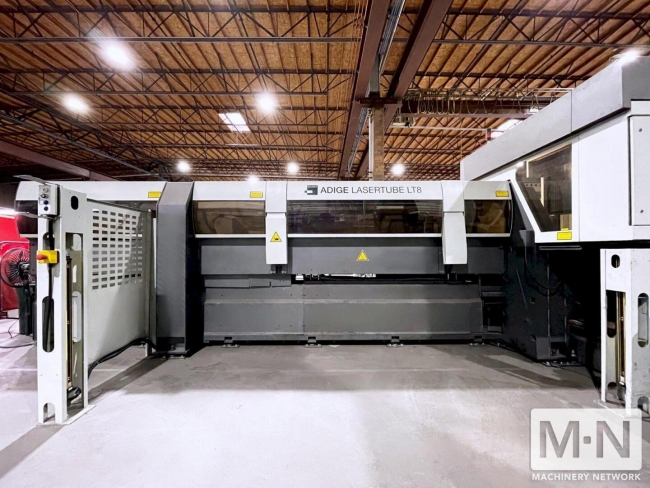

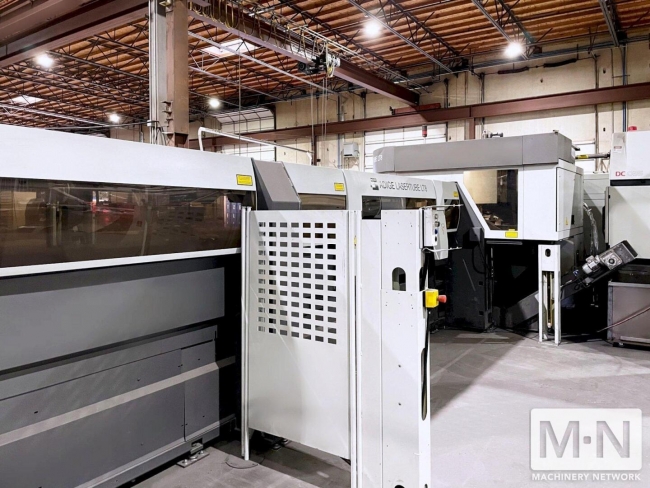

BLM LT8 CO2 Tube Laser with Tilt [3D] Cutting [2014]
Type:
LASERS
Manufacturer:
BLM
Model:
LT8
Condition:
Not Specified
Year:
2014
Stock #:
41053
Status:
For Sale
Description:
CO2 tube laser with tilt (3D) cutting, Siemens 840d CNC control, 3.5kW, 6-axis
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
Controller............................. Siemens 840d CNC
Resonator Type......................... CO2
Resonator.............................. Rofin Sinar DC035
Power Output........................... 3.5 KW
Head Type.............................. Tilt (3D) 8.5 - 6.5
Number Of Axis......................... 6 - Bevel Cut
Cut Capacity - Square tube (OD)........ .5" - 8"
Cut Capacity - Rectangular tube (OD)... .5" - 8"
Cut Capacity - Round tube (OD)......... .5" - 8.5"
Rear Automatic Bundle Loader........... 8'2" - 27'10"
Front Single Bar Manual Loader......... 8'2" - 27'10"
Min Bar Load Length For Auto Loading... 8.2"
Finished Part Unloader................. 21'3"
Front Unload Parts Conveyor............ Up To 19"
Bar Weight - Up To..................... 30 Lb/Ft.
Voltage................................ 480v, 60 Hz, 3 Phase
System Dims............................ L 64’ X W 22.5’ X H 8.5’
Machine Dims........................... L 49.25’ X W 22.5’ X H 8.5’
Weight................................. 47,400 Lbs.
Resonator Type......................... CO2
Resonator.............................. Rofin Sinar DC035
Power Output........................... 3.5 KW
Head Type.............................. Tilt (3D) 8.5 - 6.5
Number Of Axis......................... 6 - Bevel Cut
Cut Capacity - Square tube (OD)........ .5" - 8"
Cut Capacity - Rectangular tube (OD)... .5" - 8"
Cut Capacity - Round tube (OD)......... .5" - 8.5"
Rear Automatic Bundle Loader........... 8'2" - 27'10"
Front Single Bar Manual Loader......... 8'2" - 27'10"
Min Bar Load Length For Auto Loading... 8.2"
Finished Part Unloader................. 21'3"
Front Unload Parts Conveyor............ Up To 19"
Bar Weight - Up To..................... 30 Lb/Ft.
Voltage................................ 480v, 60 Hz, 3 Phase
System Dims............................ L 64’ X W 22.5’ X H 8.5’
Machine Dims........................... L 49.25’ X W 22.5’ X H 8.5’
Weight................................. 47,400 Lbs.

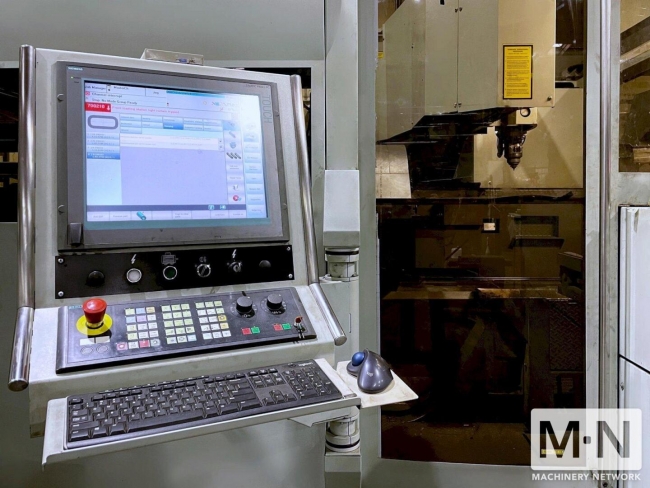

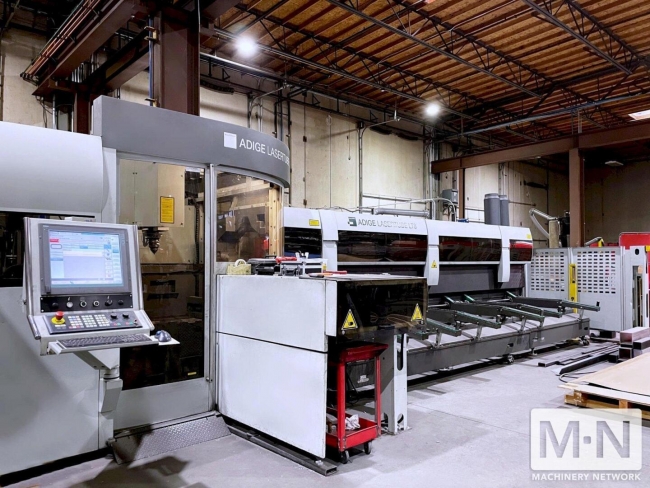

Siemens 840D CNC Controller

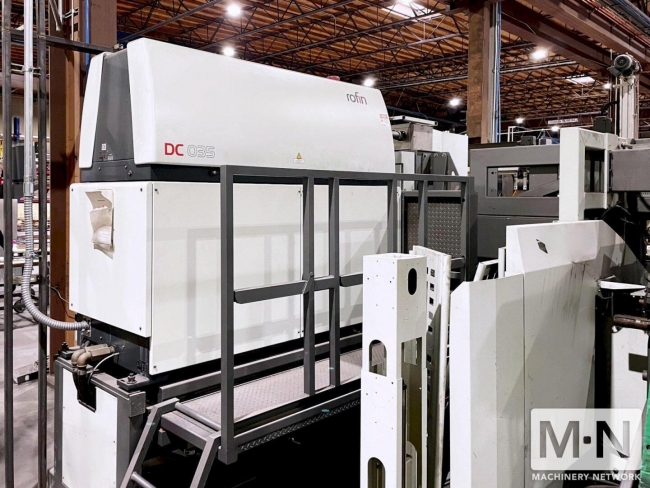

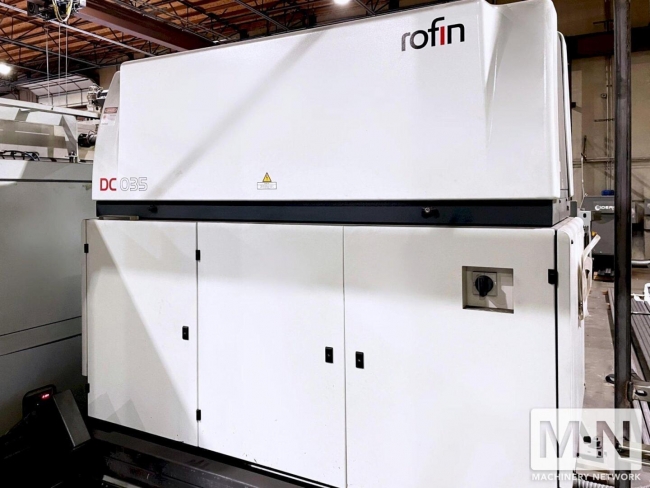

Rofin Sinar DCO35 3.5 KW Co2 Resonator

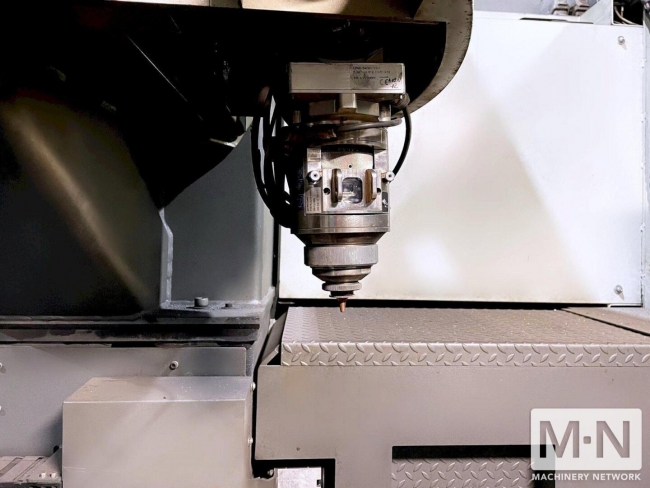

Tilting 3D Laser Head +/- 45°
Precitec DS 1.5" Focusing Unit
5” Lens And 7.5” Lens
High Speed Piercing/Booster Pulse
Bow/Twist Compensation
Active Focus
Active Piercing
Weld Seam Detection
Open Shapes Capability

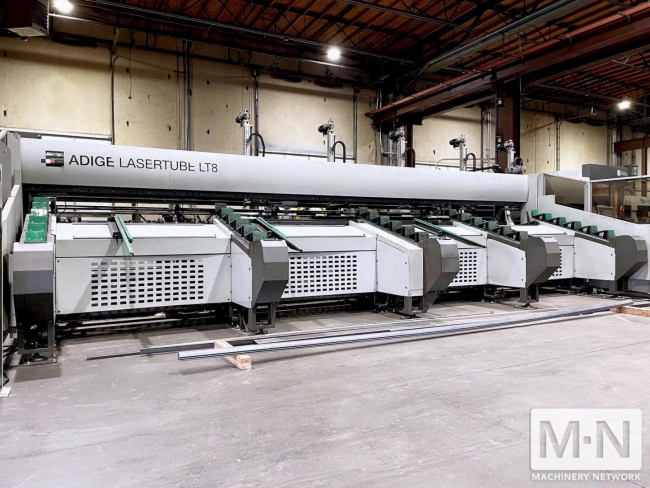

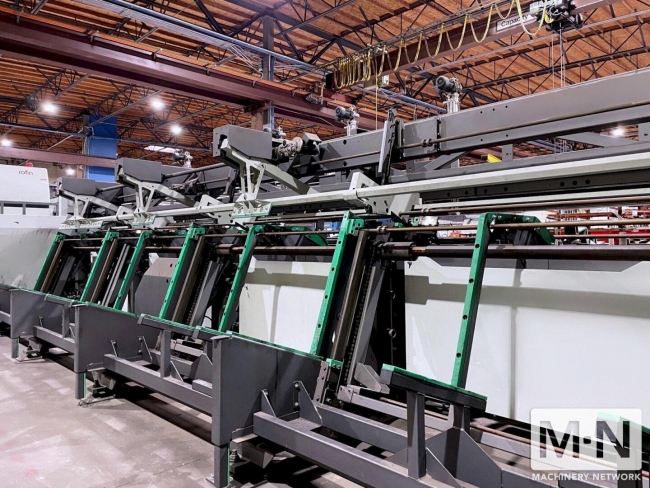

Rear Bundle Loader
Unload With Collection Tables
Auto Bundle Loader For 8' To 21' 10” Tubes
6 Step Semi-Auto Loader - Single Bars & Open Profiles

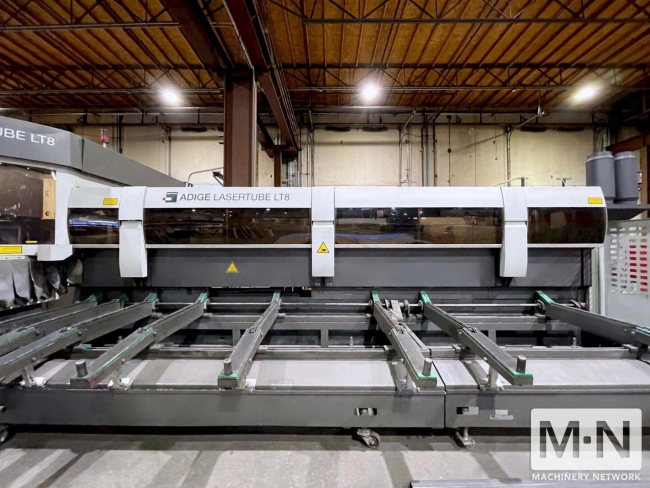

Auto Finished Parts Unloader
Small Parts Conveyor Up To 19” Long

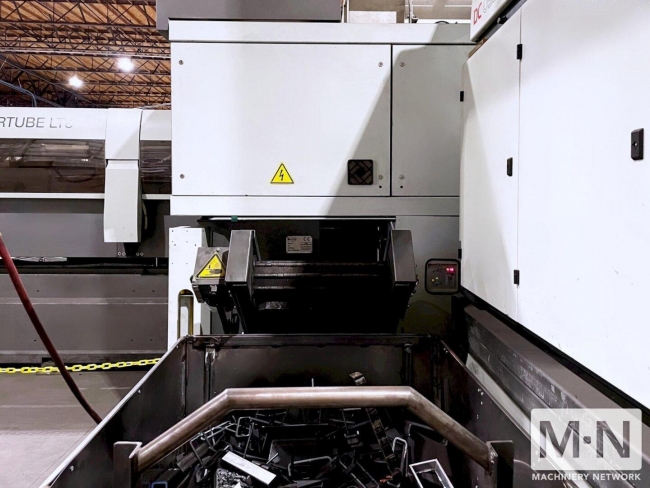

Scrap Conveyor
Remote Online Diagnosis

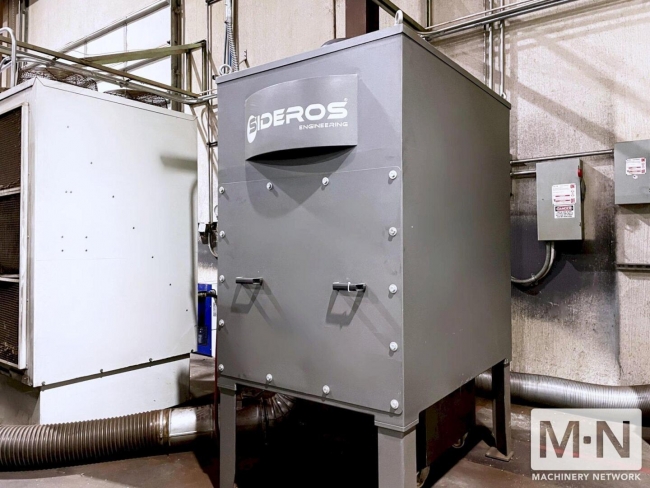

Dust Collector

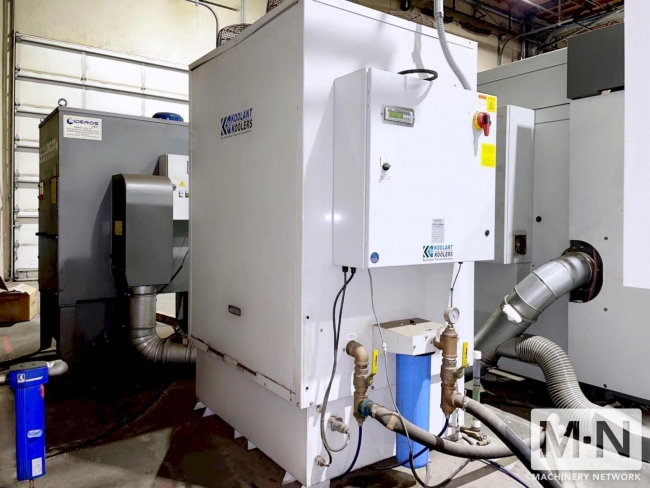

Closed Loop Chiller
