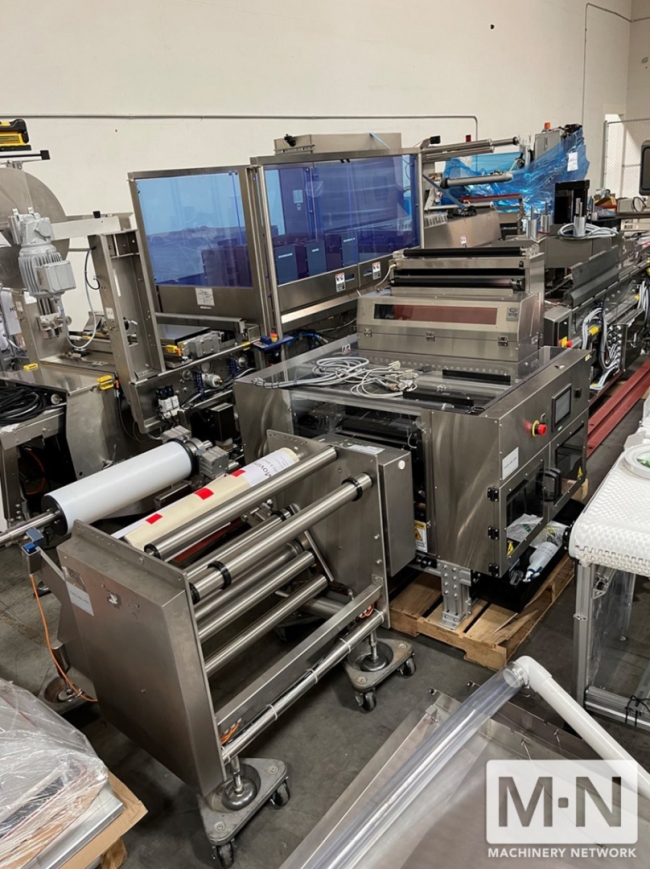

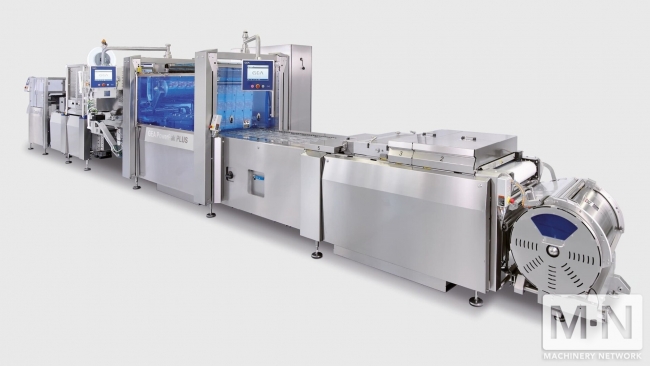

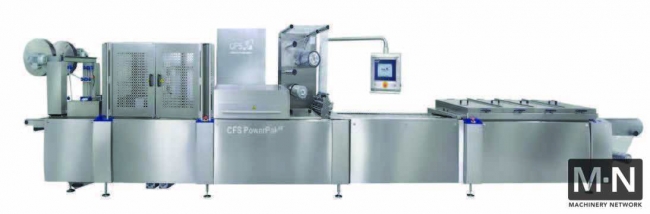

GEA Powerpak Plus Thermoformer Machine, 2016
Type:
THERMOFORMING MACHINES
Manufacturer:
GEA
Model:
POWERPAK PLUS
Condition:
Not Specified
Year:
2016
Stock #:
40943
Status:
For Sale
Description:
Web width: 540mm, 10-12 cycles per minute, 100psi, Busch 1144 BV forming pump, packaging material: rigid PETG up to .040"/ Tyvek, water: 45L per hour, forming web width: 540mm, non-forming web width: 530mm, forming/non-forming roll size: 500mm max OD
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
Products:...................... Medical Products
Type of package:............... Rigid
Web width of machine:.......... 540mm
Packaging material:............ Forming: Rigid, PETG up to .040 “
Non forming:................... Tyvek
Dieset configuration:.......... 4- up, (2tracks x 2row) 3- up, (3tracks x 1row)
Machine cycle speed:........... 10 to 12 cycles per minutes
Electrical:.................... 208 Volts, 3 Phase, 60 Cycle, * Amps (TBD)
Compressed Air:................ 100 PSI @ * CFM Dry Air (TBD)
Water:......................... 45 Liters per Hour/12 Gallons per Hour
Forming Web Width:............. 540mm +2 / -0
Non- Forming Web Width:........ 530mm + 2 -1mm
Film Cores:.................... 3” and 6”
Forming Film Roll Size:........ 500mm Max OD
Non Forming Roll Size:......... 500mm Max OD
Vacuum pumps:.................. Busch 1144 BV forming vacuum pump
Type of package:............... Rigid
Web width of machine:.......... 540mm
Packaging material:............ Forming: Rigid, PETG up to .040 “
Non forming:................... Tyvek
Dieset configuration:.......... 4- up, (2tracks x 2row) 3- up, (3tracks x 1row)
Machine cycle speed:........... 10 to 12 cycles per minutes
Electrical:.................... 208 Volts, 3 Phase, 60 Cycle, * Amps (TBD)
Compressed Air:................ 100 PSI @ * CFM Dry Air (TBD)
Water:......................... 45 Liters per Hour/12 Gallons per Hour
Forming Web Width:............. 540mm +2 / -0
Non- Forming Web Width:........ 530mm + 2 -1mm
Film Cores:.................... 3” and 6”
Forming Film Roll Size:........ 500mm Max OD
Non Forming Roll Size:......... 500mm Max OD
Vacuum pumps:.................. Busch 1144 BV forming vacuum pump
GEA B&R Control System UL 508A
Touch Screen Operator Panel
Cost Fox Data Collection System
Film Drive System
Forming Film Unwind system
2250mm Forming module with 130mm max dieset opening
3000mm Loading area
2000mm Sealing module
2000mm Cross cutting module
Longitudinal cutting module
PowerPak Formset with 575mm index length
PowerPak Formset with 390mm index length
OPTIONS:
1 Upper film registration
1 Splice detection for top and bottom film
1 Low film detection for upper and lower film
1 Stack light
1 Servo driven 1200mm reject conveyor
1 Film lift for top film including tool change lifting gear
1 Busch 1144 BV forming vacuum pump mounted below
Loading area:

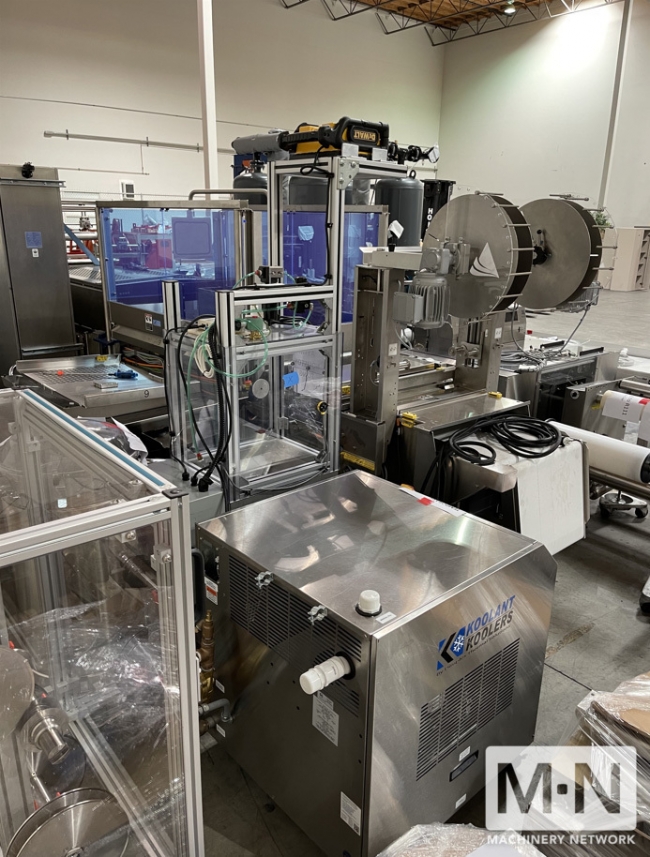

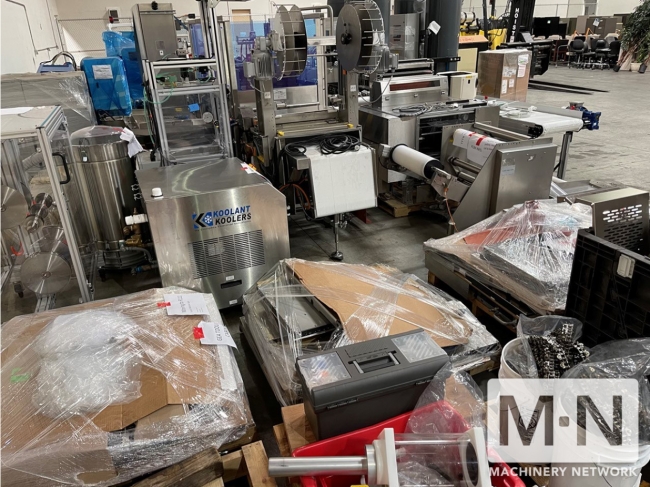

1 Coolmaster K-004.9 Water chiller
1 Servo cylinder for forming and seal station lift
1 Servo lift for strip punches
1 Servo drive for Optiform Plug drive
1 Jumbo forming film unwind with 6” expandable mandrel to accommodate a 1000mm diameter film roll
