ENGEL SILICONE VICTORY 200/100 LIM
Type:
INJECTION MOLDING, HORIZONTAL/VERTICAL
Manufacturer:
ENGEL
Model:
SILICONE VICTORY 200/100 LIM
Condition:
Not Specified
Year:
2015
Stock #:
40405
Status:
Sold
Description:

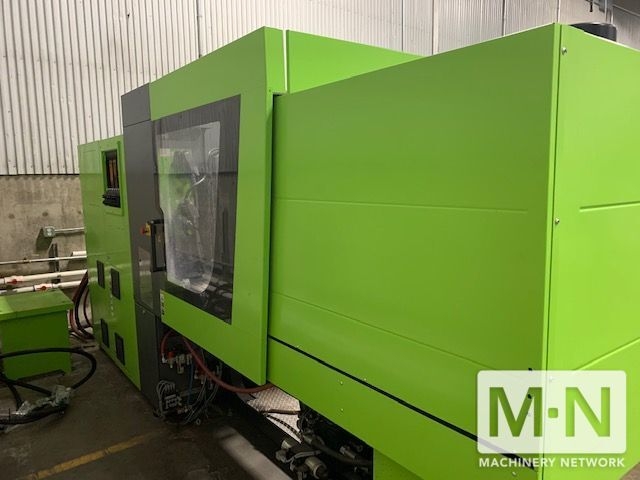

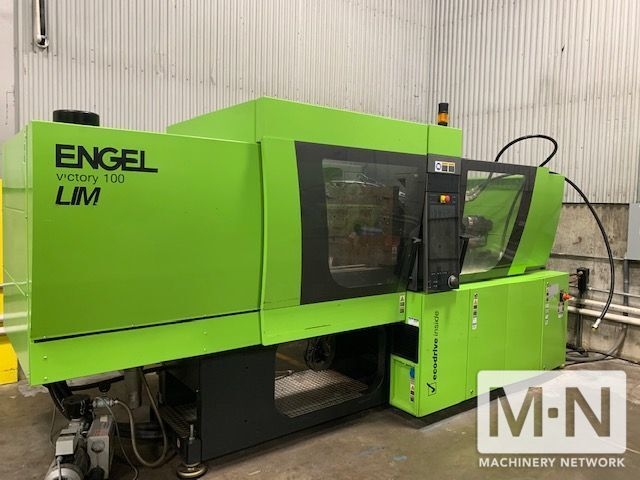

100 TON 3.3 OZ ENGEL MODEL VICTORY 200/100 LIM SILICONE INJECTION MOLDING MACHINE MFG 2015
Videos:
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
TONNAGE
SHOT SIZE
SCREW DIAMETER
PLATEN DIMENSIONS
CLAMP STROKE
DAYLIGHT MIN/MAX
MIN/MAX MOLD HEIGHT
CC300 CONTROL
APPROX 25,593 HOURS

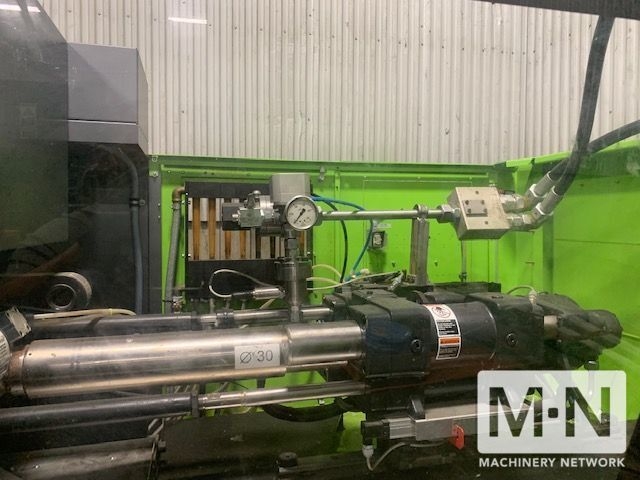

LSR-package (instead of thermoplastic equipment) consisting of:
- bi-metallic (M3), water cooled barrel, L/D=16
- nitrided (S1) screw including spring-loaded check disk 30 mm diameter
- material pressure gauge in material feeding
- preparation for material filter packet (housing only)
- preparation for pneum.material shut-off valve 1/2"
(electrical equipment, software and pneumatics)
- injection pressure limited in manual operating mode
- program flushing with LSR component
- program evacuation
(incl. the required inputs and outputs)
- screen text "cure time" instead of "cooling time"
meshes for LSR filter consisting of different mesh sizes
interface and program for ejection-handling,
including triple core pull
vacuum pump with 25m3/h capacity, incl. vacuum valve
vacuum monitoring on moving platen
setting and monitoring via machine controller
8 zone mold heating control
servo valve for injection speed, follow up
pressure and back pressure
hydraulic package ECODRIVE - SHV1
- with excellent energy efficiency by
high dynamic servo pump.
- closed-loop control of volume and pressure
by pump speed.
- servo valve for control of injection process.
Interface for robot/automation
does not include power supply receptacle
(Euromap 67 / AN-146)
