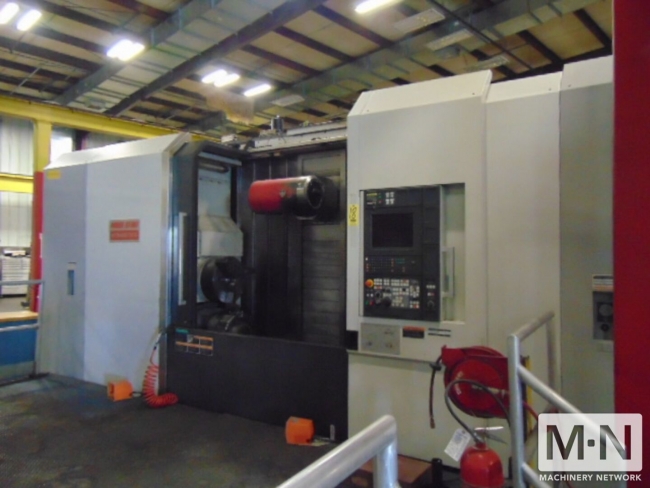

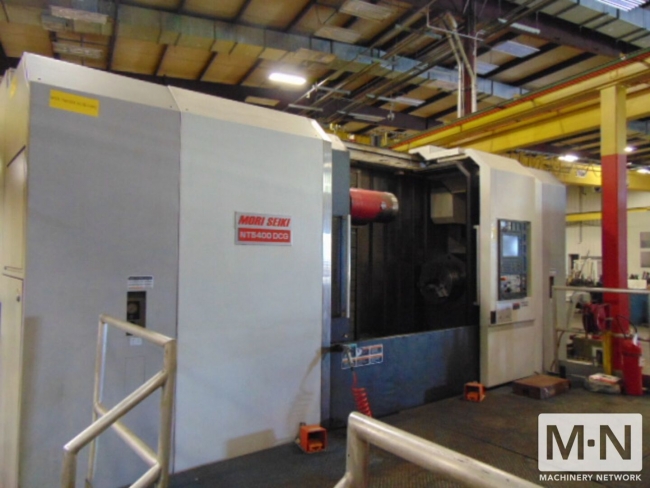

Mori Seiki NT5400 DGC/1800SZ 5-Axis Horizontal Turning Center
Type:
5-Axis or More CNC Lathes
Manufacturer:
MORI SEIKI
Model:
NT-5400 DCG-1800SZ
Condition:
Not Specified
Year:
2007
Stock #:
40358
Status:
For Sale
Description:

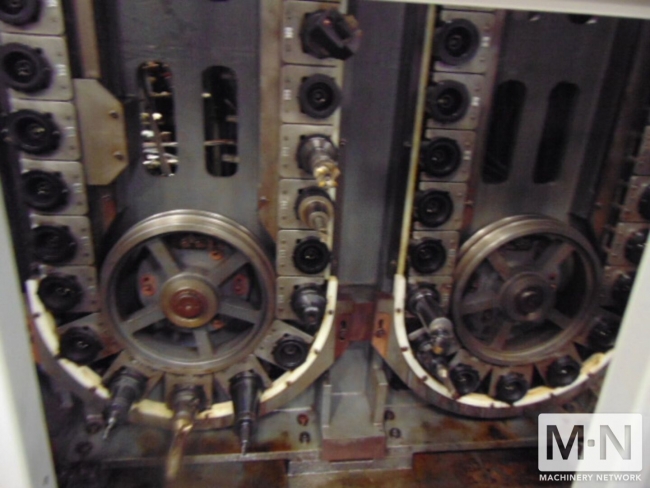

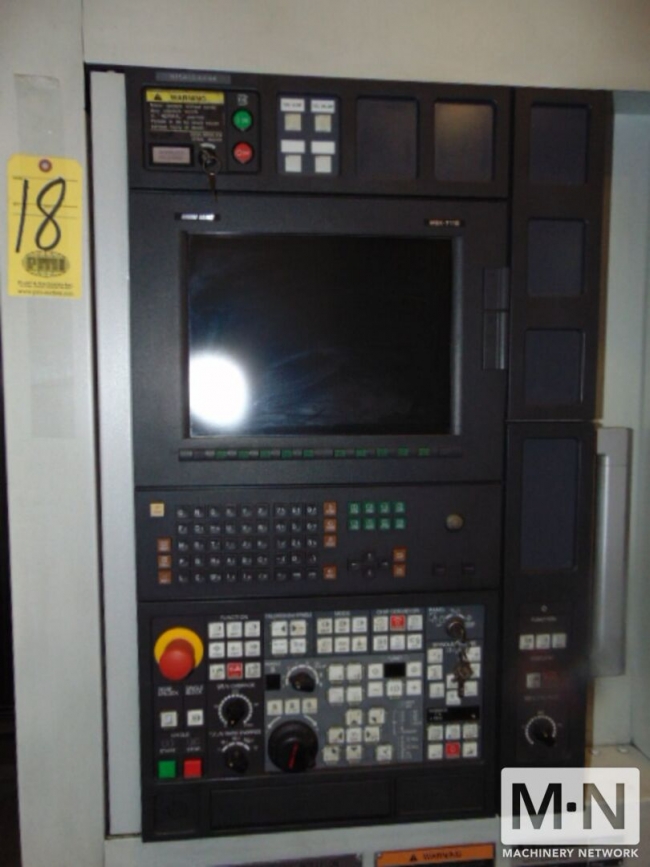

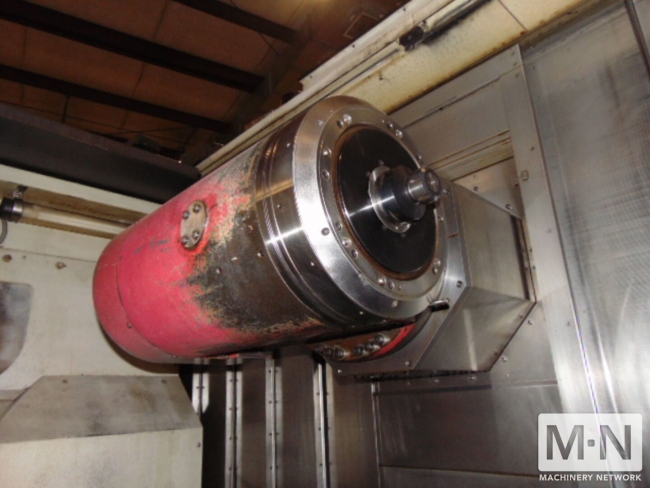

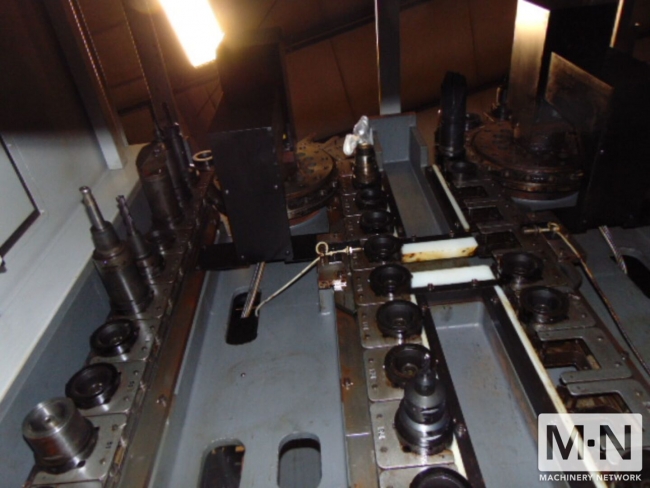

MXS-711 III CNC control, 36.2” max. turning dia., 75.6” max. turning length, 2,400 RPM integrated spindle motor w/ C-axis, 8,000 RPM max. rotational speed. of turning/milling spindle, 80-tool pockets, Capto C8 tooling, simultaneous 5-axis machining, 1,000 PSI Chip Blaster high pressure coolant, dual 19.5" SMW power chucks, milling on Turret 1
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
Machining Length
# Axis
Bar Capacity
Chuck Size
Power
Max RPM
Turning Dia
B-Axis (Yes/No)
Milling on Upper and Lower Turret
CAPTO C8 TOOLING
SIMULTANEOUS 5-AXIS MACHINING

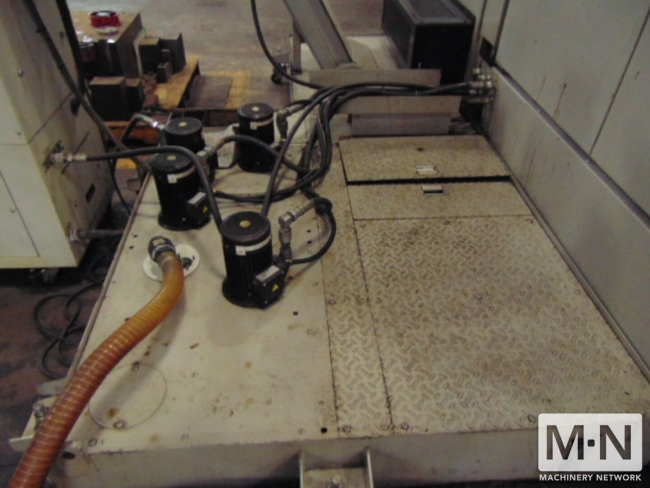

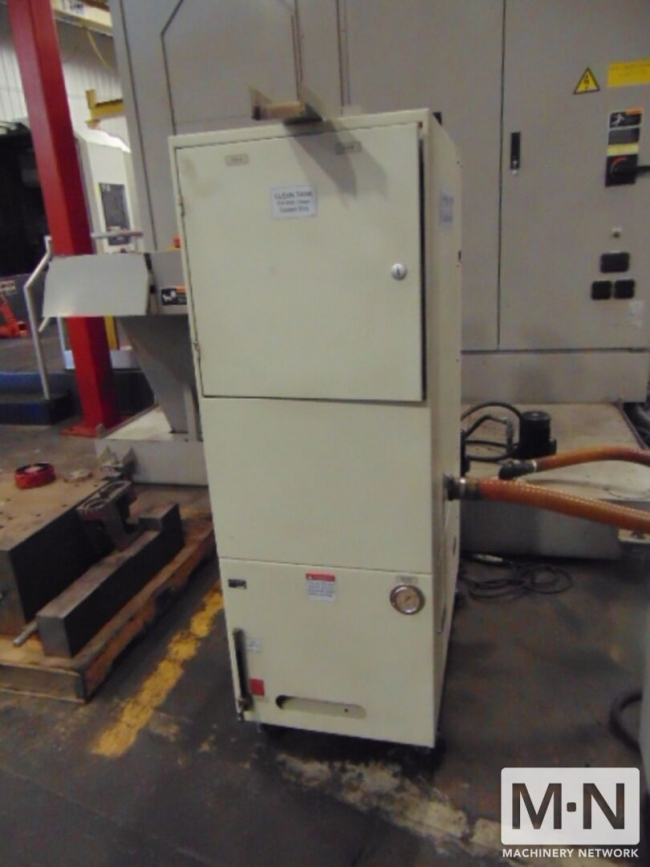

1,000 PSI CHIP BLASTER HIGH PRESSURE COOLANT

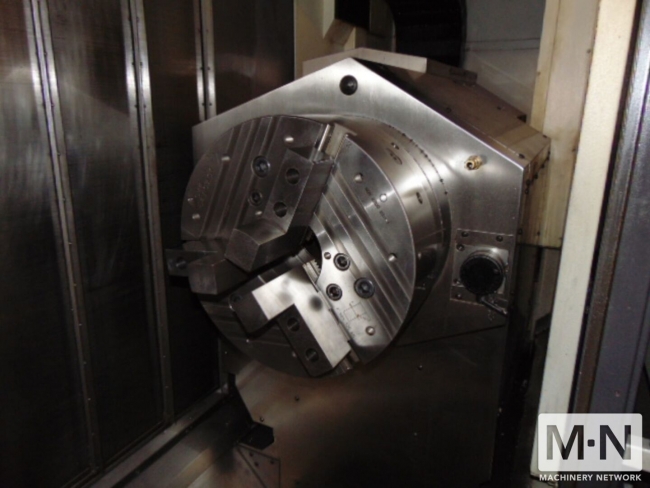

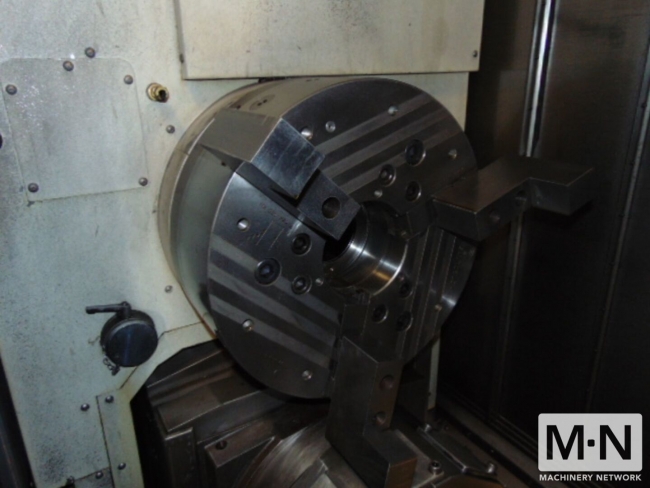

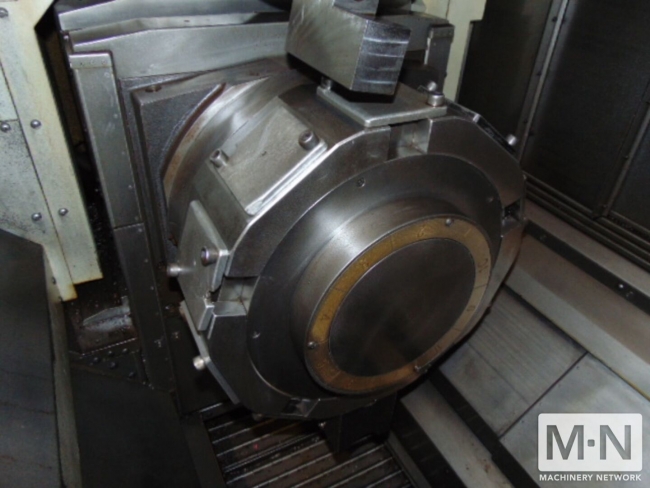

DUAL 18" POWER CHUCKS
MILLING ON TURRET 1

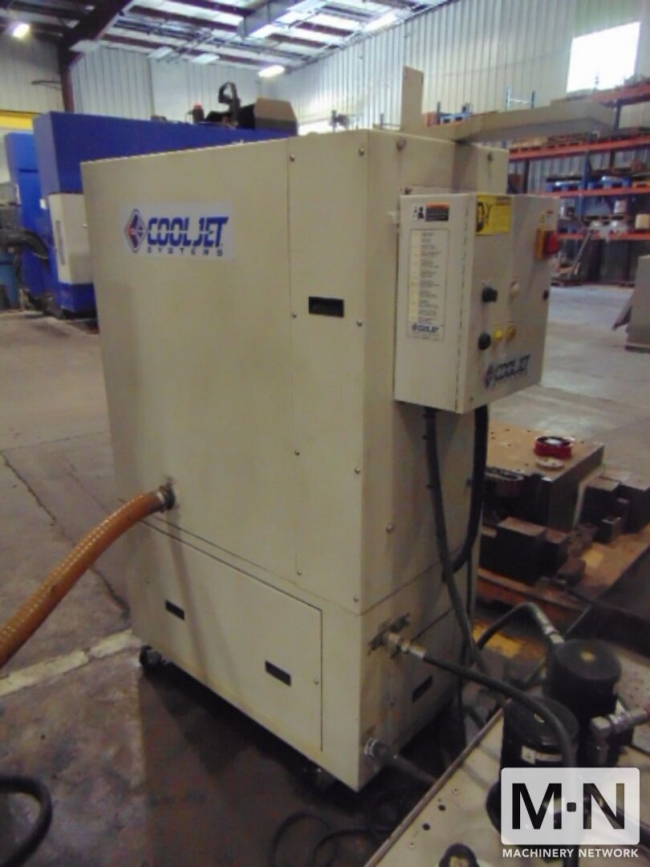

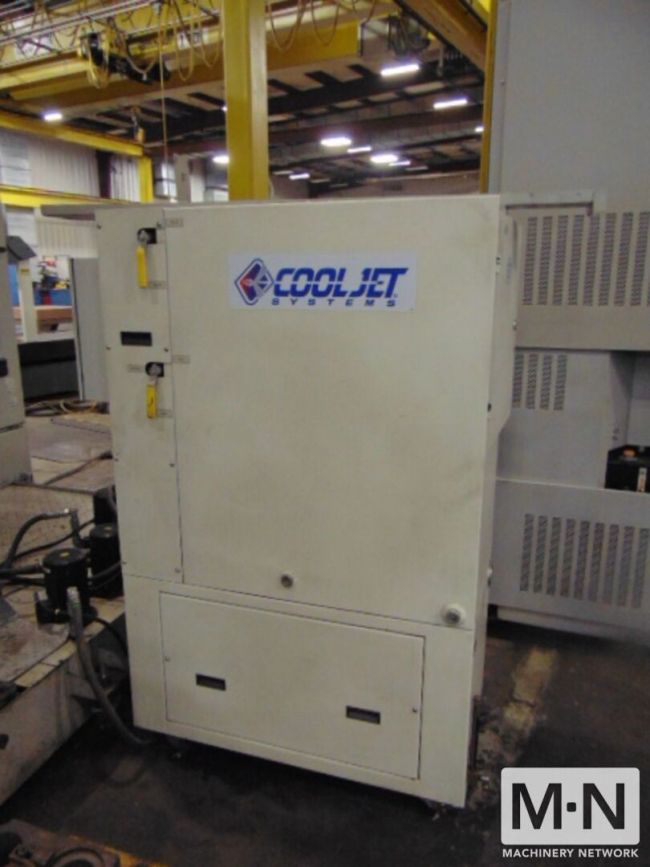

COOLJET COOLANT PUMP
TOOL CENTER POINT CONTROL
PART PROGRAM STRAGE (2MBYTE)
NUMBER OF STORED PROGRAMS: 1000
REMOTE COMMUNICATION FUNCTION: FAST DATA SERVER [100BASE-TX]
USER MEMORY AREA(BUILT-IN MAPPS): 50 MB
NUMBER OF TOOL OFFSET PAIRS: 240
TOOL OFFSET FOR 5-AXIS MACHINING: PROVIDED
NUMBER OF WORK COORDINATE SYSTEM PAIRS: 6
PROGRAMMABLE DATA INPUT: PROVIDED
NUMBER OF CUSTOM MACRO COMMON VARIABLES: 600
AI CONTOUR CONTROL: 2
DIAMETER/RADIUS DYNAMIC EXCHANGE: PROVIDED
TILTED WORKING PLANE COMMAND: PROVIDED
NANO SMOOTHING: PROVIDED
TOOL LIFE MANAGEMENT: B
NUMBER OF TOOL LIFE MANAGEMENT (MORI): MAX. 120 PAIRS * 8
LOAD MONITOR: B
