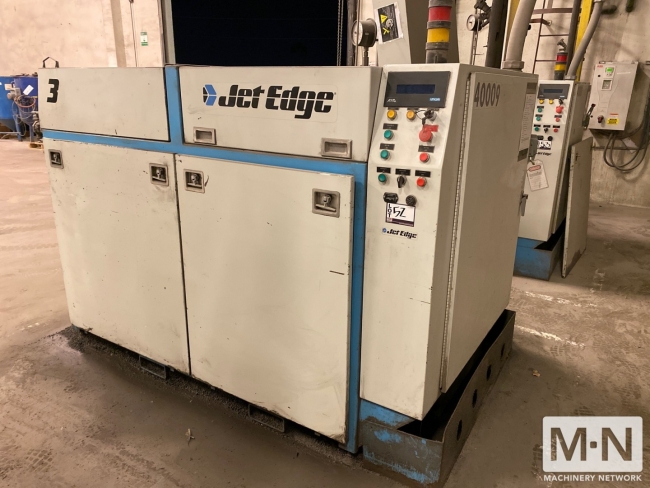

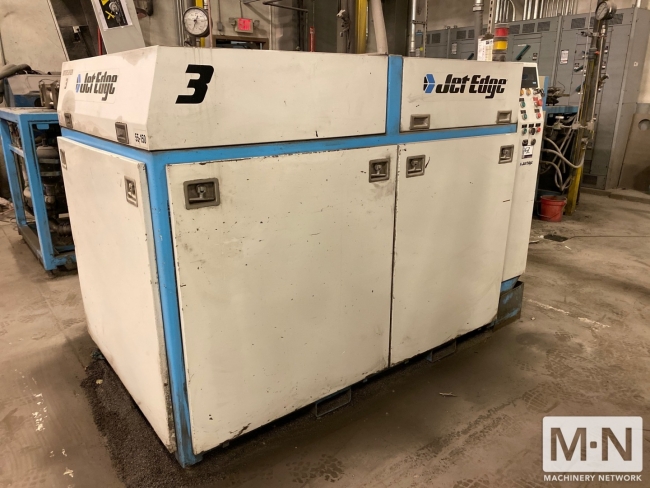

JET EDGE 55-150 WATERJET INTENSIFIER PUMP

Type:

WATER JET CUTTING, CNC

Manufacturer:

JET EDGE

Model:

55-150

Condition:

Not Specified

Year:

2008

Stock #:

40041

Status:

For Sale

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

General Specifications:

Pump PSI

Power

Equipped With

Upgraded 2015 at a cost of $25,489.00

The Jet Edge iP55-150 is a 150-horsepower waterjet intensifier pump rated at 60,000 psi (4,100 bar). It is capable of producing output pressures from 1,000 to 55,000 psi (3,800 bar) with flow rates of 0 to 3.2 gallons (12.11 liters) per minute to a variety of cutting, surface preparation or cleaning tools.

The iP55-150 water jet pump features a patented intensifier design combined with a certified attenuator, complying with ASME pressure vessel standards, to minimize pressure fluctuations. A 150-horsepower motor drives an axial piston, variable displacement, pressure-compensated type hydraulic pump. The high-efficiency, totally enclosed, fan cooled (TEFC) electric motor with wye-delta "soft start" ensures high reliability, long service life and minimal energy usage. A programmable logic controller (PLC) monitors and controls all machine functions, and automatically energizes relays to light the warning lamps in the event of potentially damaging conditions. The integrated water filter and booster system eliminates connections between other filtration systems.
