HAAS UMC-750

Type:

Vertical Machining Centers

Manufacturer:

HAAS

Model:

UMC-750

Condition:

Not Specified

Year:

2017

Stock #:

38498

Status:

Sold

Description:

5 Axis, 12,000 RPM

Location:

Kansas, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

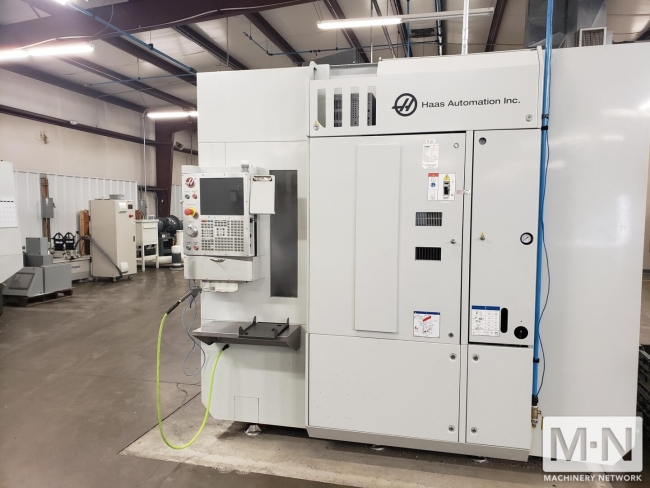

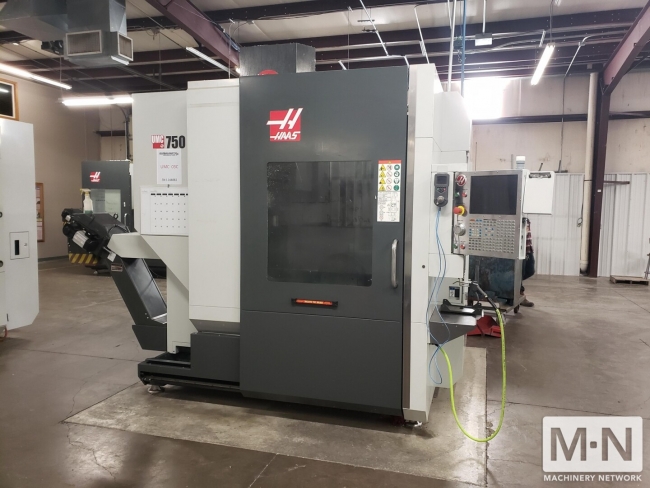

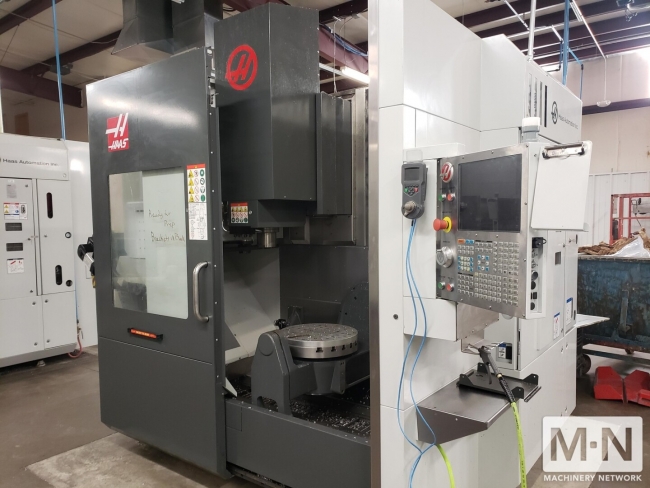

(1) USED HAAS UMC-750 5-AXIS CNC VERTICAL MACHINING CENTER
NEW 2017

SPECIFICATIONS:
TRAVELS
X AXIS............................... 30 "
Y AXIS............................... 20 "
Z AXIS............................... 20 "
B AXIS TILT.......................... +110° TO -35°
C AXIS ROTATION...................... 360 °
SPINDLE NOSE TO TABLE (~ MAX)........ 24 "
SPINDLE NOSE TO TABLE (~ MIN)........ 4 "
PLATTER
PLATTER LENGTH....................... 24.8 "
PLATTER WIDTH........................ 19.7 "
MAX WEIGHT ON PLATTER................ 660 LB
T-SLOT WIDTH......................... 5/8 "
T-SLOT CENTER DISTANCE............... 2.48 "
SPINDLE
MAX RATING........................... 30 HP
MAX SPEED............................ 12,000 RPM
MAX TORQUE........................... 90 FT-LB @ 2000 RPM
DRIVE SYSTEM......................... INLINE DIRECT-DRIVE
TAPER................................ CT-40

FEEDRATES
RAPIDS ON X.......................... 1200 IN/MIN
RAPIDS ON Y.......................... 1200 IN/MIN
RAPIDS ON Z.......................... 1200 IN/MIN
MAX CUTTING.......................... 650 IN/MIN
FEEDRATES (ROTARY)
RAPIDS ON B.......................... 50 °/SEC
RAPIDS ON C.......................... 50 °/SEC
MAX CUTTING (ROTARY)................. 50 °/SEC

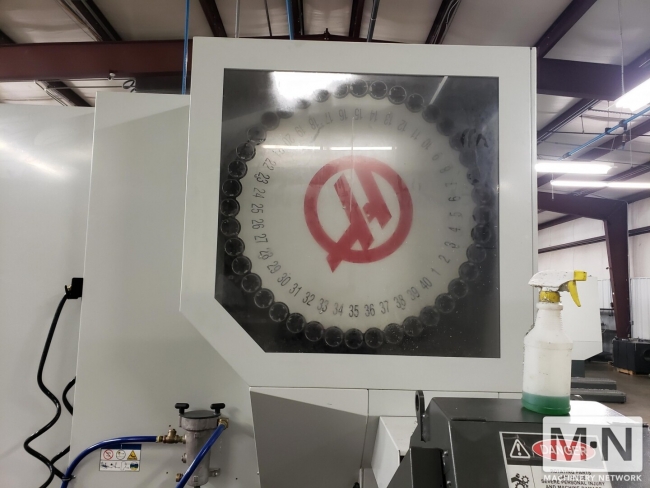

TOOL CHANGER
TYPE................................. SMTC
CAPACITY............................. 40+1
MAX TOOL DIAMETER (ADJACENT EMPTY)... 5 "
MAX TOOL DIAMETER (FULL)............. 3 "
MAX TOOL LENGTH (FROM GAGE LINE)..... 12 "
MAX TOOL WEIGHT...................... 12 LB
TOOL-TO-TOOL (AVG)................... 2.8 SEC
CHIP-TO-CHIP (AVG)................... 3.6 SEC

EQUIPPED WITH:

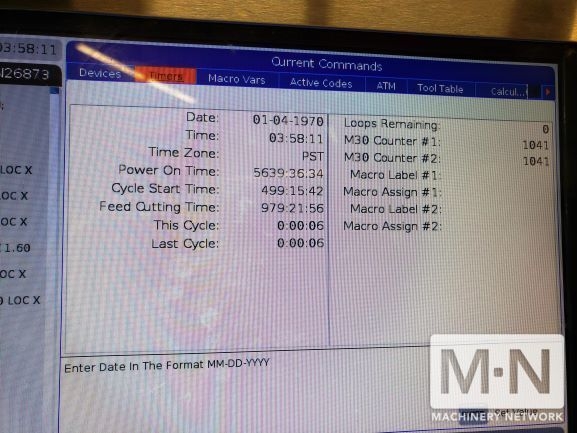

HAAS NEXT GENERATION CONTROL
WIRELESS INTUITIVE PROB
1 GIG MEMORY
ETHERNET
DYNAMIC WORK OFFSET
TOOL CENTER POINT CONTROL
REMOTE JOG HANDLE
SECOND HOME POSITION

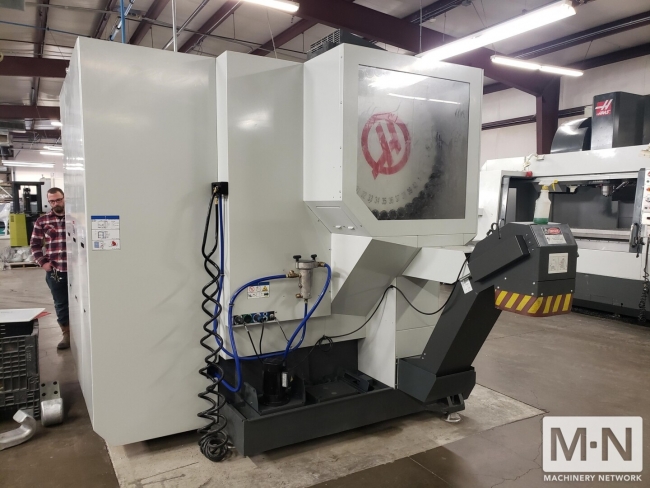

JORGENSEN CHIP CONVEYOR
PROGRAMMABLE COOLANT
RIGID TAPPING

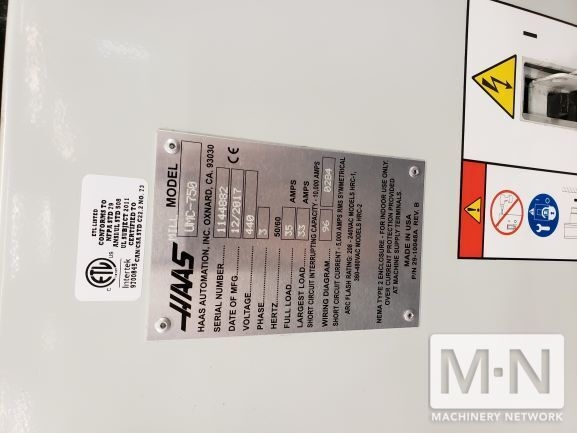

BUILT IN HIGH VOLTAGE TRANSFORMER
75 GALLON FLOOD COOLANT SYSTEM
HIGH SPEED MACHINING

Spec Sheet:

(1) USED HAAS UMC-750 5-AXIS CNC VERTICAL MACHINING CENTER
NEW 2017

SPECIFICATIONS:
TRAVELS
X AXIS............................... 30 "
Y AXIS............................... 20 "
Z AXIS............................... 20 "
B AXIS TILT.......................... +110° TO -35°
C AXIS ROTATION...................... 360 °
SPINDLE NOSE TO TABLE (~ MAX)........ 24 "
SPINDLE NOSE TO TABLE (~ MIN)........ 4 "
PLATTER
PLATTER LENGTH....................... 24.8 "
PLATTER WIDTH........................ 19.7 "
MAX WEIGHT ON PLATTER................ 660 LB
T-SLOT WIDTH......................... 5/8 "
T-SLOT CENTER DISTANCE............... 2.48 "
SPINDLE
MAX RATING........................... 30 HP
MAX SPEED............................ 12,000 RPM
MAX TORQUE........................... 90 FT-LB @ 2000 RPM
DRIVE SYSTEM......................... INLINE DIRECT-DRIVE
TAPER................................ CT-40

FEEDRATES
RAPIDS ON X.......................... 1200 IN/MIN
RAPIDS ON Y.......................... 1200 IN/MIN
RAPIDS ON Z.......................... 1200 IN/MIN
MAX CUTTING.......................... 650 IN/MIN
FEEDRATES (ROTARY)
RAPIDS ON B.......................... 50 °/SEC
RAPIDS ON C.......................... 50 °/SEC
MAX CUTTING (ROTARY)................. 50 °/SEC
TOOL CHANGER
TYPE................................. SMTC
CAPACITY............................. 40+1
MAX TOOL DIAMETER (ADJACENT EMPTY)... 5 "
MAX TOOL DIAMETER (FULL)............. 3 "
MAX TOOL LENGTH (FROM GAGE LINE)..... 12 "
MAX TOOL WEIGHT...................... 12 LB
TOOL-TO-TOOL (AVG)................... 2.8 SEC
CHIP-TO-CHIP (AVG)................... 3.6 SEC

EQUIPPED WITH:
HAAS NEXT GENERATION CONTROL
WIRELESS INTUITIVE PROB
1 GIG MEMORY
ETHERNET
DYNAMIC WORK OFFSET
TOOL CENTER POINT CONTROL
REMOTE JOG HANDLE
SECOND HOME POSITION
JORGENSEN CHIP CONVEYOR
PROGRAMMABLE COOLANT
RIGID TAPPING
BUILT IN HIGH VOLTAGE TRANSFORMER
75 GALLON FLOOD COOLANT SYSTEM
HIGH SPEED MACHINING
