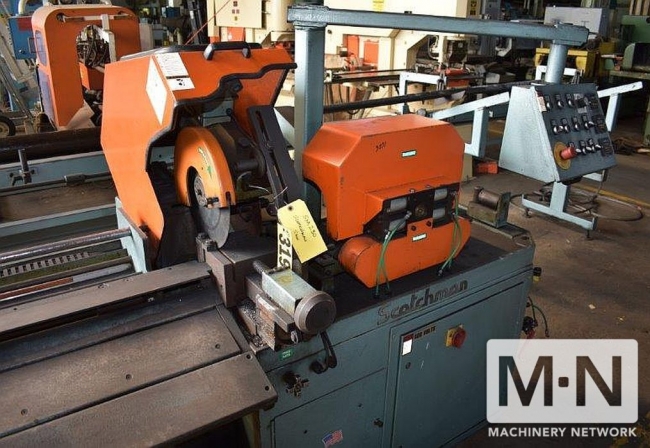

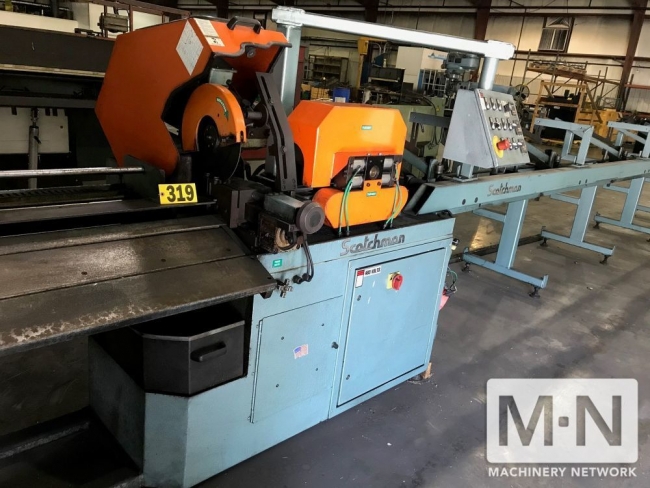

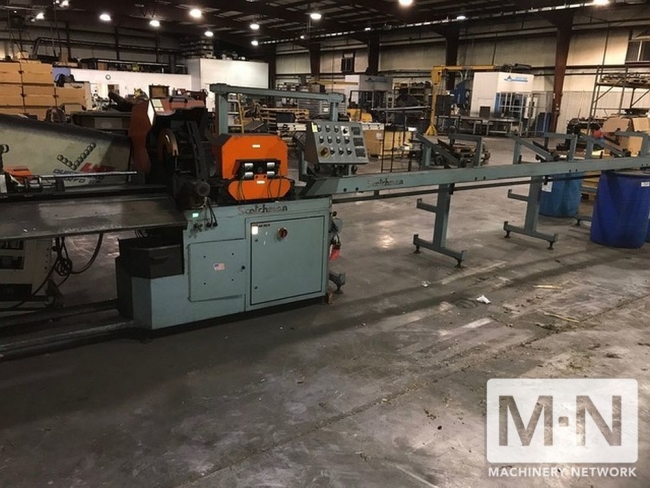

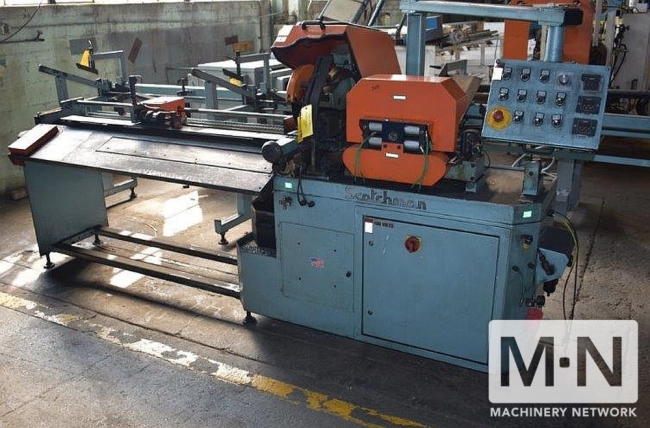

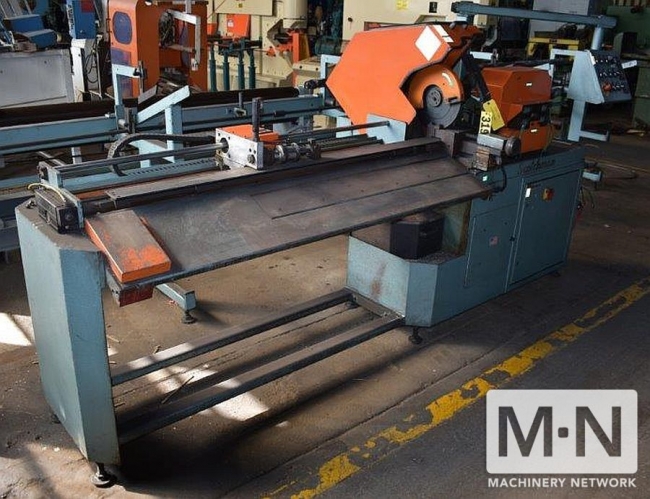

Scotchman CPO 315 RFA/HT Automatic Cold Saw
Type:
SAWS, CIRCULAR COLD
Manufacturer:
SCOTCHMAN
Model:
CPO 315 RFA/HT
Condition:
Used - Good
Year:
2005
Stock #:
38106
Status:
Sold
Description:
12 1/2" blade, Auto roller feed, mag loader, 3.5" max tube dia
Videos:
Location:
Ohio, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) Used Scotchman CPO 315 RFA Roller Feed Automatic Circular Saw New 2005
Specifications:
Cutting capacities (Mild steel)
Round tube ................... 3 1/2"
Round solid .................. 1 3/4"
Square tube .................. 3 1/8" x 3 1/8"
Square solid ................. 1 1/2" x 1 1/2"
Length tolerance .............. +/-0.006"
Minimum cut ................... 1 1/2"
Max cut length, single index .. 60"
Saw blade max. diameter ....... 12 1/2"
Saw motor ..................... 5 HP
Saw Speed ..................... 3,000 RPM
Dimensions .................... 384'L x 46'W x 63'H
Approx. weight ................ 3500 lbs
Electrical req. ............... 460V/3/60
Equipped with:
Automatic stock feed - 24' max stock length
Fully Automatic Cycle
Automatic Loading of each New Bar
Automatic Trim Cut of each New Bar
Automatic Tube Ejection
5 H.P. Variable RPM Speed Control
Interlocking Safety Hood
Blade Guides for Accurate Tolerances
Trim and Remnant Gate
Adjustable Stroke Control on the Saw Head for Feed Rate

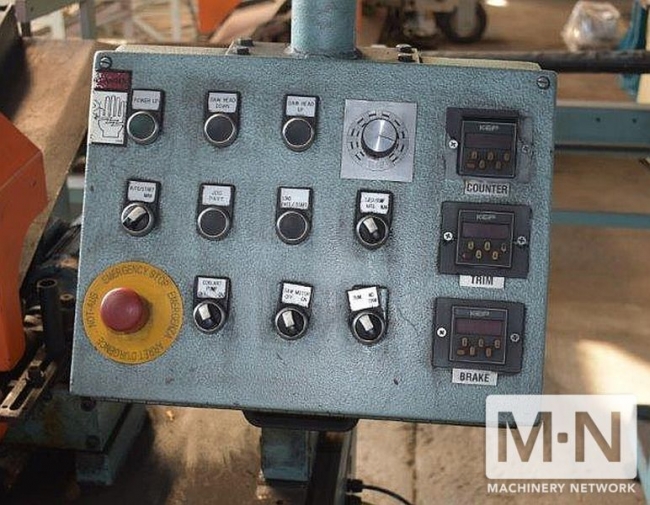

Piece Counter
Length Scale in Both Inches and Metric

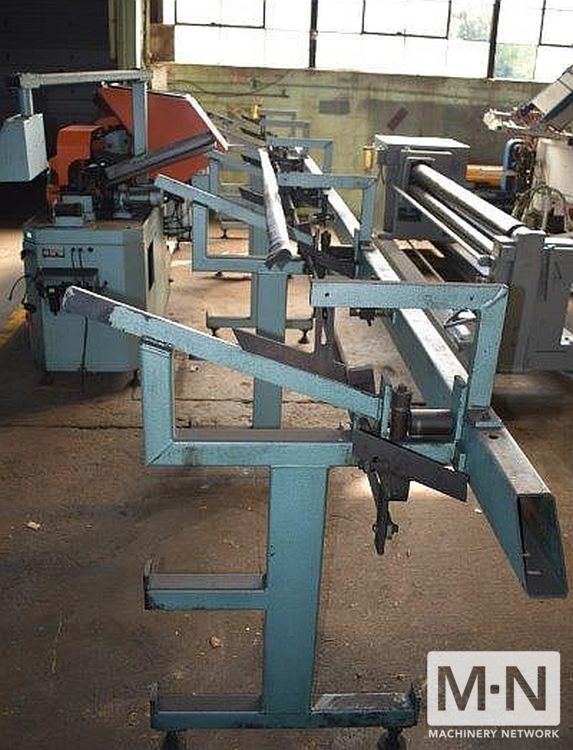

Supply Table takes up to 24' Material
Inspect under power in Cincinnati, OH
Specifications:
Cutting capacities (Mild steel)
Round tube ................... 3 1/2"
Round solid .................. 1 3/4"
Square tube .................. 3 1/8" x 3 1/8"
Square solid ................. 1 1/2" x 1 1/2"
Length tolerance .............. +/-0.006"
Minimum cut ................... 1 1/2"
Max cut length, single index .. 60"
Saw blade max. diameter ....... 12 1/2"
Saw motor ..................... 5 HP
Saw Speed ..................... 3,000 RPM
Dimensions .................... 384'L x 46'W x 63'H
Approx. weight ................ 3500 lbs
Electrical req. ............... 460V/3/60
Equipped with:
Automatic stock feed - 24' max stock length
Fully Automatic Cycle
Automatic Loading of each New Bar
Automatic Trim Cut of each New Bar
Automatic Tube Ejection
5 H.P. Variable RPM Speed Control
Interlocking Safety Hood
Blade Guides for Accurate Tolerances
Trim and Remnant Gate
Adjustable Stroke Control on the Saw Head for Feed Rate
Piece Counter
Length Scale in Both Inches and Metric
Supply Table takes up to 24' Material
Inspect under power in Cincinnati, OH
