OPS INGERSOLL GANTRY EAGLE 1200

Type:

ELECTRIC DISCHARGE MACHINES, CONVENTIONAL, N/C & CNC

Manufacturer:

OPS INGERSOLL

Model:

GANTRY EAGLE 1200

Condition:

Not Specified

Year:

2014

Stock #:

37841

Status:

Sold

Description:

39.4" x 49.2" x 23.6" trvls, C axis, 30 ATC, 3R

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

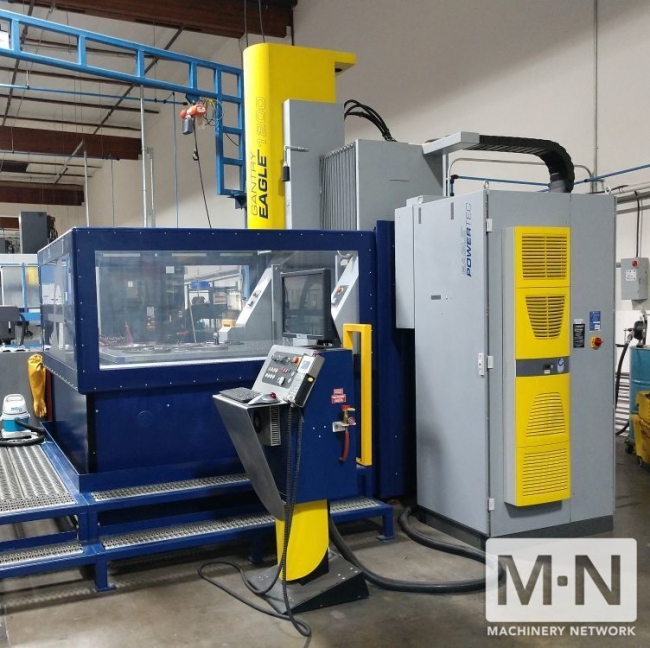

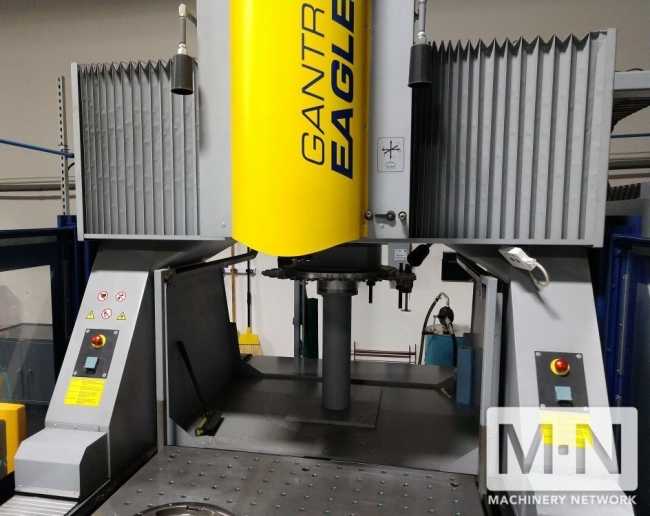

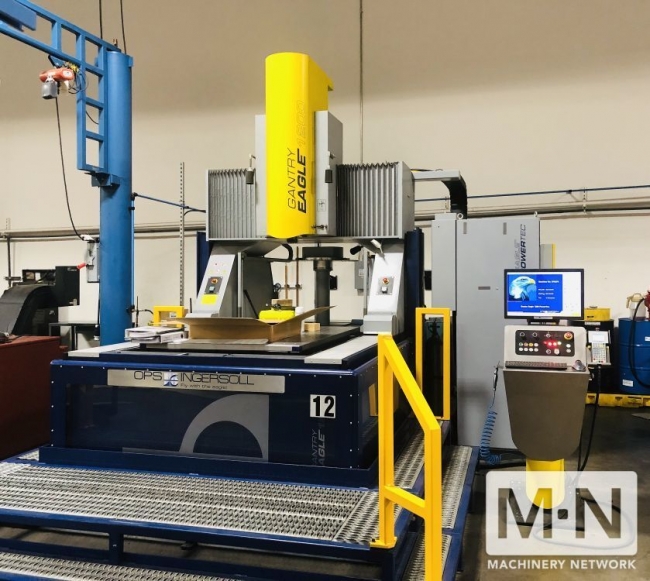

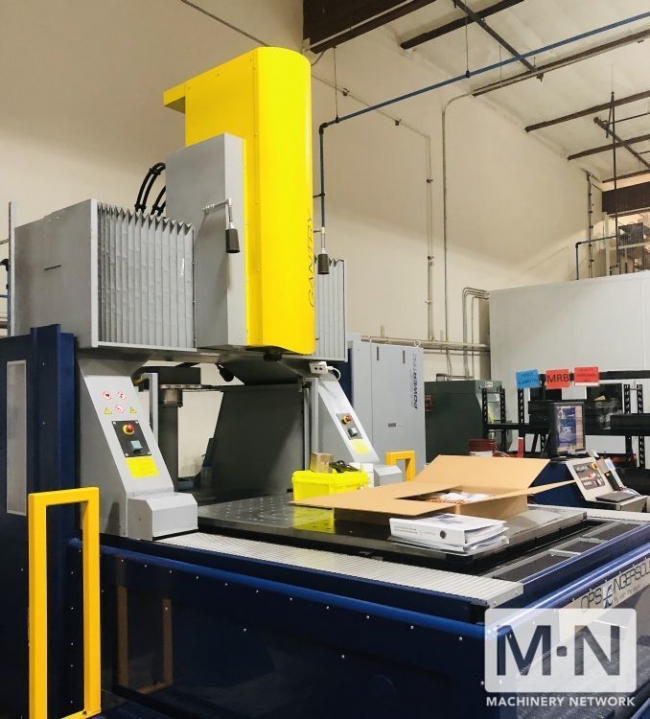

(1) Used OPS Ingersoll Gantry Eagle 1200 CNC Sinker EDM
New 2014 *Less than 200 hours*

Specifications:
Travels - X axis .......... 39.4"
- Y axis .......... 49.2"
- Z axis .......... 23.6"
Max. work piece size ...... 49.2" x 68.9" x 23.2"D
Work tank interior dims ... 50" x 69.7" x 26.8"
Max. work piece weight .... 16,535 lbs
Table dimensions .......... 44.9" x 64.5"
Max. electrode weight ..... 660 lbs
Table to C axis chuck ..... 5.9" - 31.5"
Electrode changer cap ..... 30
Approx. machine dims ...... 116" x 156" x 136"H
Approx. machine weight .... 33,100 lbs

Equipped with:

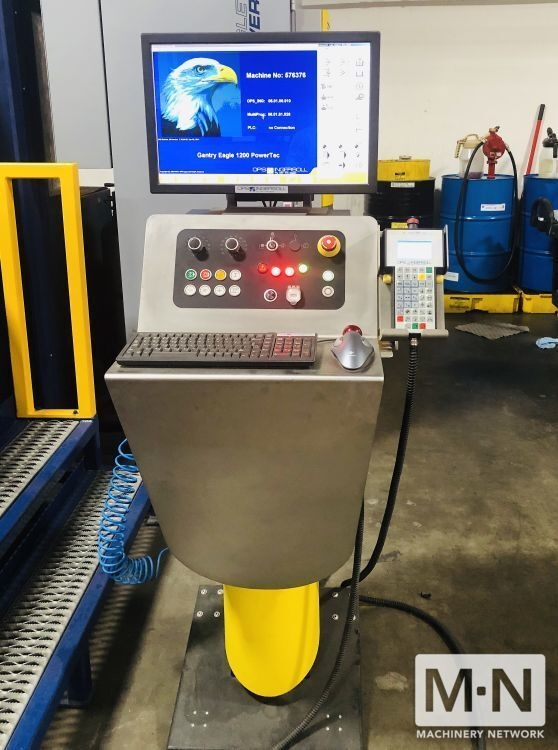

Dual 32 bit PC based control
PowerTec Power supply - 60A
4 sided drop tank design
C axis
3R tooling
