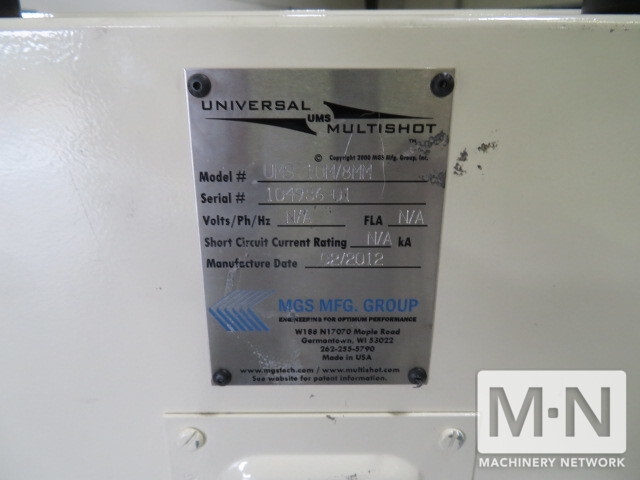

MGS INJECTION UNIT UMS-10M
Type:
PLASTIC & RUBBER EQUIPMENT
Manufacturer:
MGS
Model:
INJECTION UNIT UMS-10M
Condition:
Not Specified
Year:
2012
Stock #:
37541
Status:
Sold
Description:
INJECTION UNIT FOR 2-SHOT MOLDING . .08 OZ , 12 MM SCREW , MGS MFG IN 2012
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MGS INJECTION UNIT MODEL UMS-10M MFG 2012
SPECIFICATIONS:
INJECTION STROKE; 1.97"
INTENSIFICATION RATIO : 21,875
PLASTIC PRESSURE @ SYSTEM PRESSURE 26,250 PSI
SHOT SIZE . 0.089 OZ

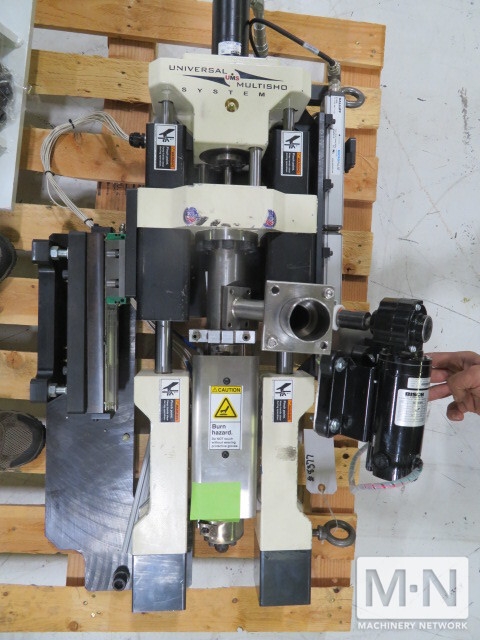

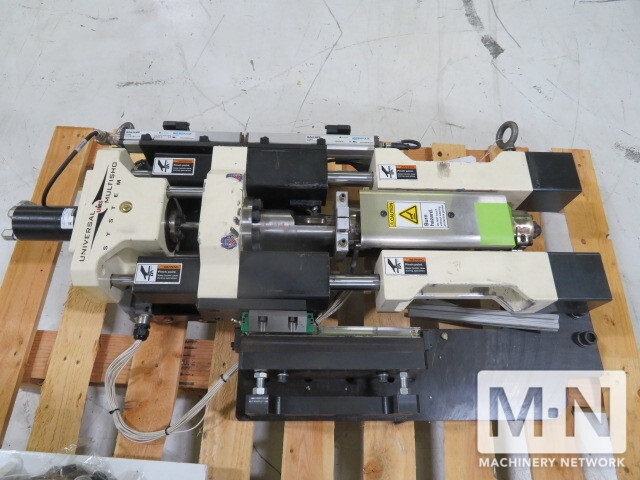

The injection unit had a combo plasticizer (12mm screw/ 8mm plunger) Screw section (feed) is 12mm; feed difficult if pellets are not small or consistent enough to gravity drop into screw flights. Melt routed in-line through ports into a 8mm plunger with ball-check
Closed loop injection speed & pressure control
injection speeds, 3.0 inches/second maximum velocity
hold pressures
Open loop screw speed
back pressure
Nozzle position Z axis (vertical) controlled at operator interface panel
Easy to set nozzle touch and sprue break set points

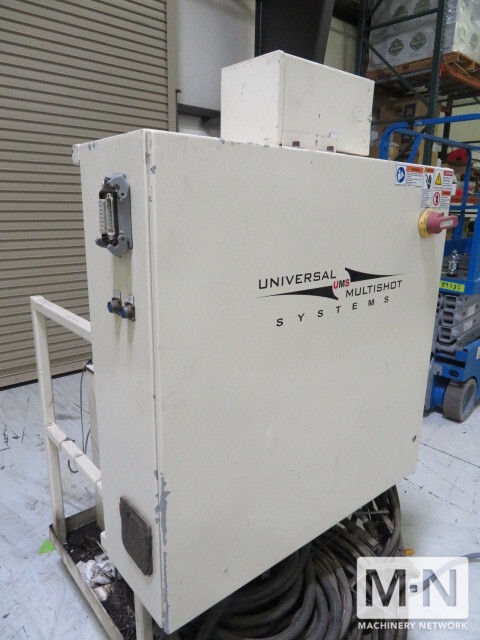

Allen-Bradley Programmable Logic Controller Mold Mount Injection Unit
Phone Modem for Program Support

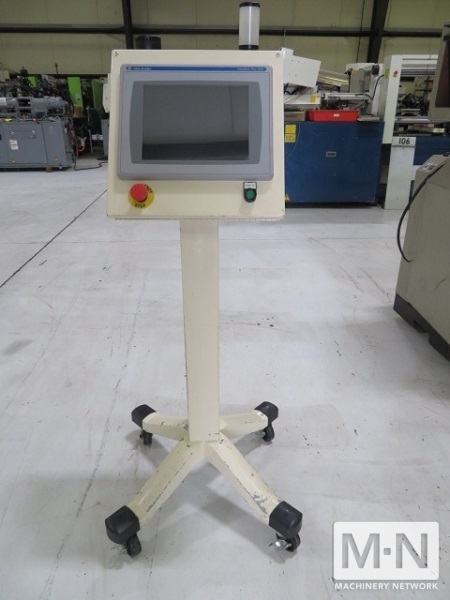

Color Touch Screen Operator Interface
Convenient data entry and monitoring
Quality Monitoring Screen
Tool Steel Screw and Barrel

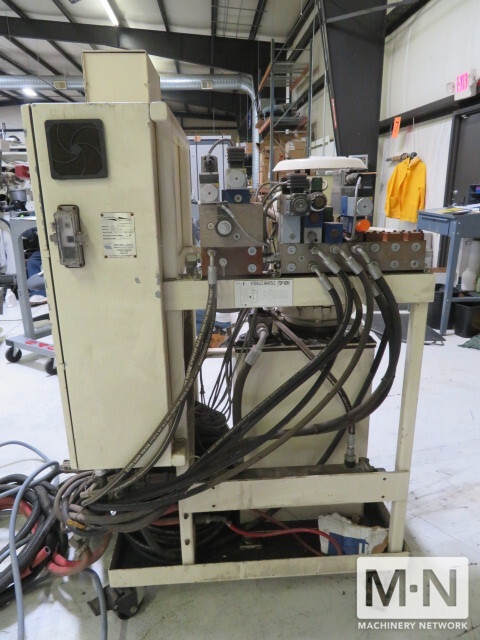

Independent Hydraulic System

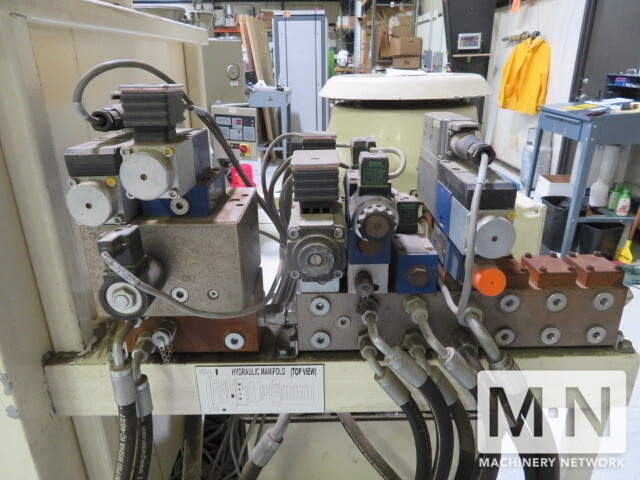

Variable Volume & Pressure Control, 20’ hose and cable length.
SPI interface, for communications with base machine

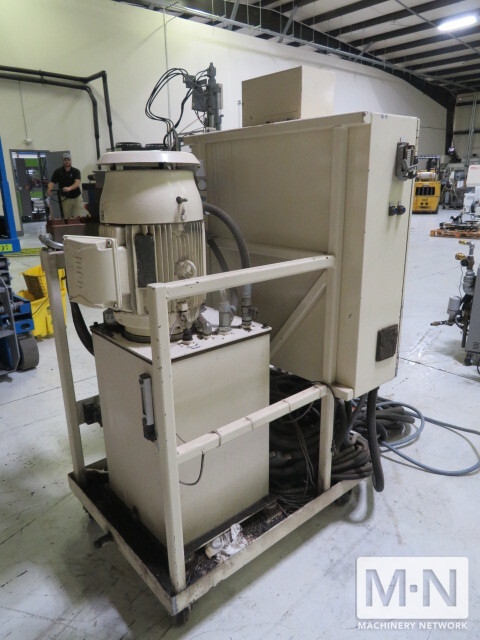

32 pin interface connector Hydraulic Unit
3 heater zones
• 2 set points per zone, Run and Standby
• 2 operation modes, Automatic and Manual
• Individual circuit breaker protection
SPECIFICATIONS:
INJECTION STROKE; 1.97"
INTENSIFICATION RATIO : 21,875
PLASTIC PRESSURE @ SYSTEM PRESSURE 26,250 PSI
SHOT SIZE . 0.089 OZ
The injection unit had a combo plasticizer (12mm screw/ 8mm plunger) Screw section (feed) is 12mm; feed difficult if pellets are not small or consistent enough to gravity drop into screw flights. Melt routed in-line through ports into a 8mm plunger with ball-check
Closed loop injection speed & pressure control
injection speeds, 3.0 inches/second maximum velocity
hold pressures
Open loop screw speed
back pressure
Nozzle position Z axis (vertical) controlled at operator interface panel
Easy to set nozzle touch and sprue break set points
Allen-Bradley Programmable Logic Controller Mold Mount Injection Unit
Phone Modem for Program Support
Color Touch Screen Operator Interface
Convenient data entry and monitoring
Quality Monitoring Screen
Tool Steel Screw and Barrel
Independent Hydraulic System
Variable Volume & Pressure Control, 20’ hose and cable length.
SPI interface, for communications with base machine
32 pin interface connector Hydraulic Unit
3 heater zones
• 2 set points per zone, Run and Standby
• 2 operation modes, Automatic and Manual
• Individual circuit breaker protection
