MAKINO UPV-3
Type:
ELECTRIC DISCHARGE MACHINES, WIRE, N/C & CNC
Manufacturer:
MAKINO
Model:
UPV-3
Condition:
Not Specified
Year:
2014
Stock #:
37047
Status:
Sold
Description:
14.6" X 10.6" X 8.7" TRVLS, HIRSCHMANN NC ROTARY TABLE
Videos:
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

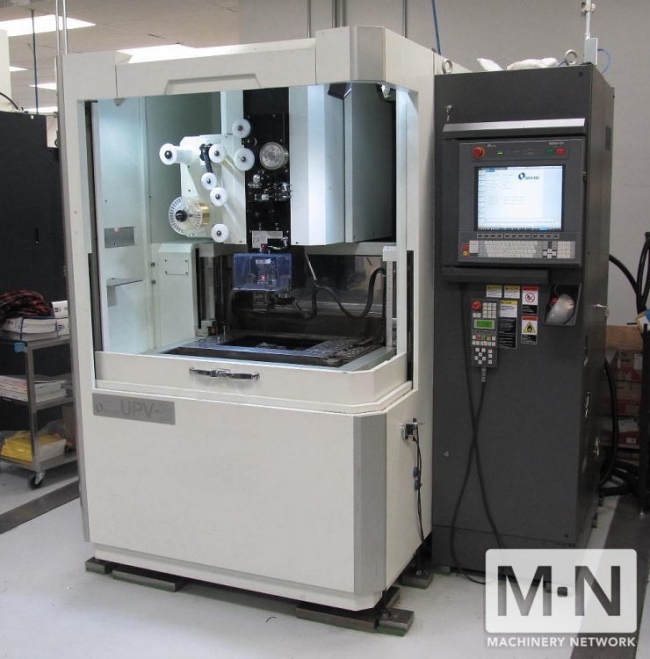

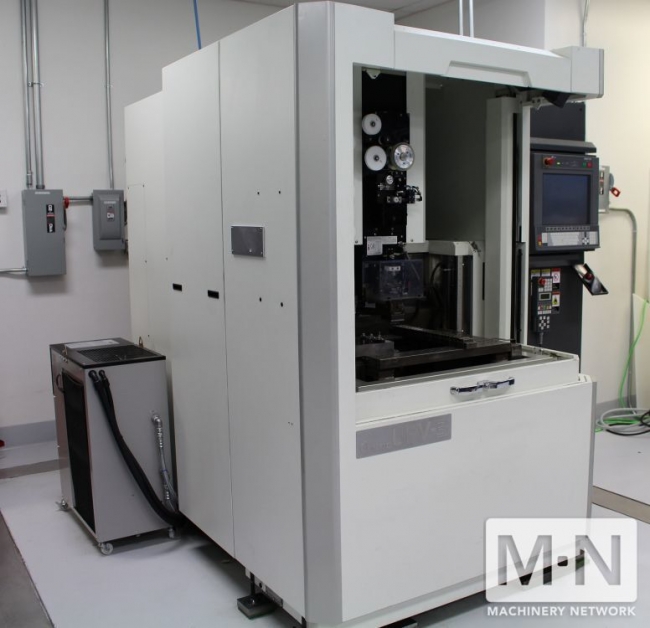

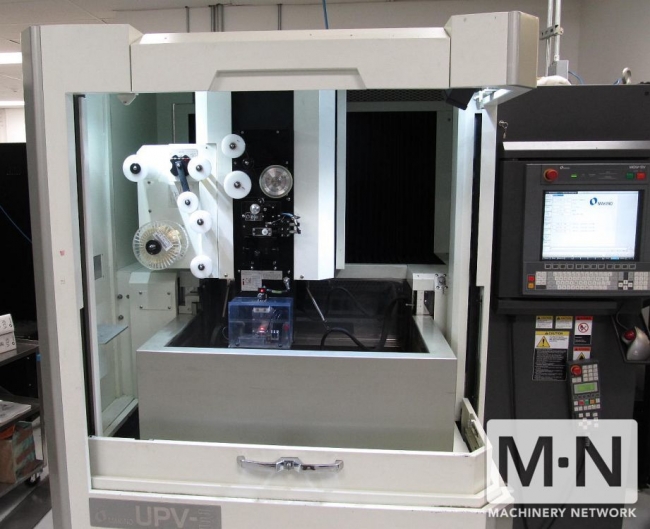

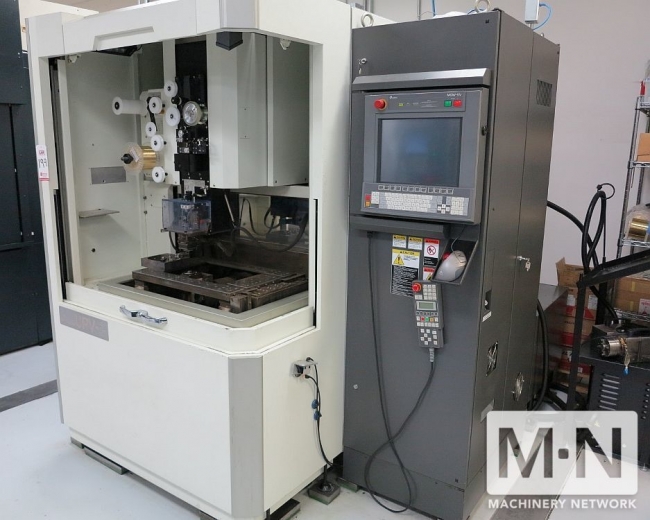

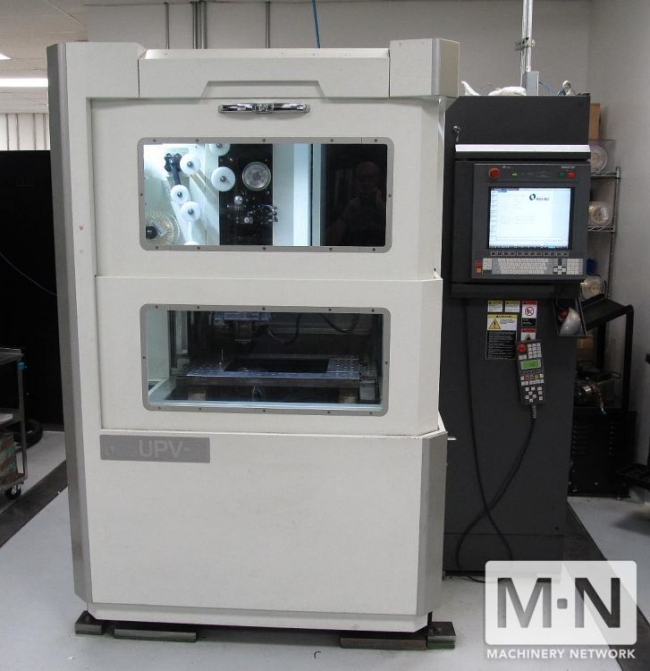

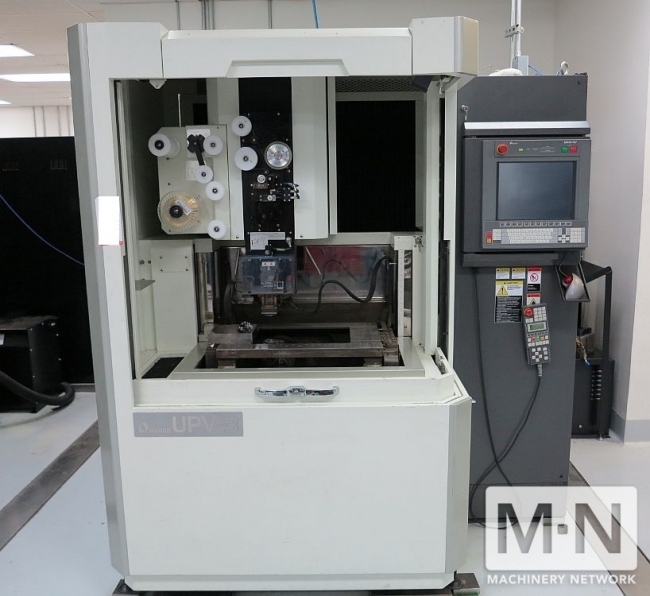

(1) Used Makino UPV-3 Precision Oil Dielectic CNC Wire EDM New 2014
Specifications:
-Travels - X axis : 14.56"
- Y axis : 10.63"
- Z axis : 8.66"
- U/V axes: 1.96"
-Taper cap with AWT: +/-15 deg, 3.94" thick
-Rapid traverse rate : 78.7 IPM
-Work table size : 24.8" x 17.7"
-Max. table load : 772 lbs
-Wire electrode diameters: 0.002" - .01"
-Linear position accuracy: +/- .000039" (X & Y )
-Dynamic shape precision : +/- .00006"
-Approx machine dims : 76" x 104" x 82"H
-Machine weight : 9100 lbs
Equipped with:

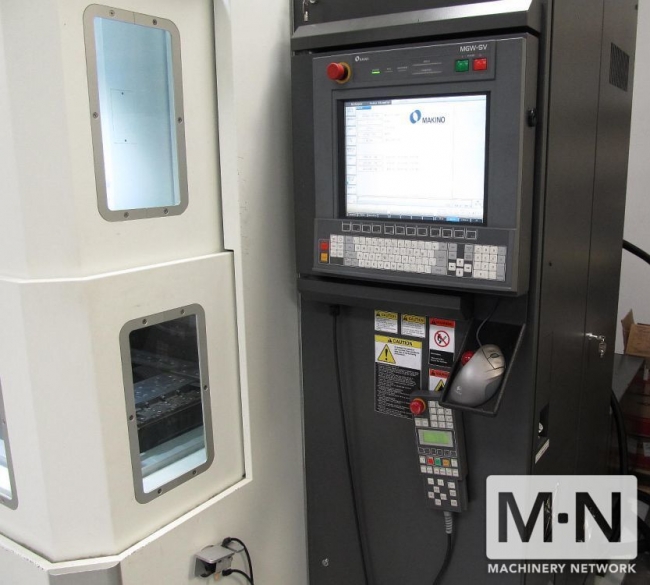

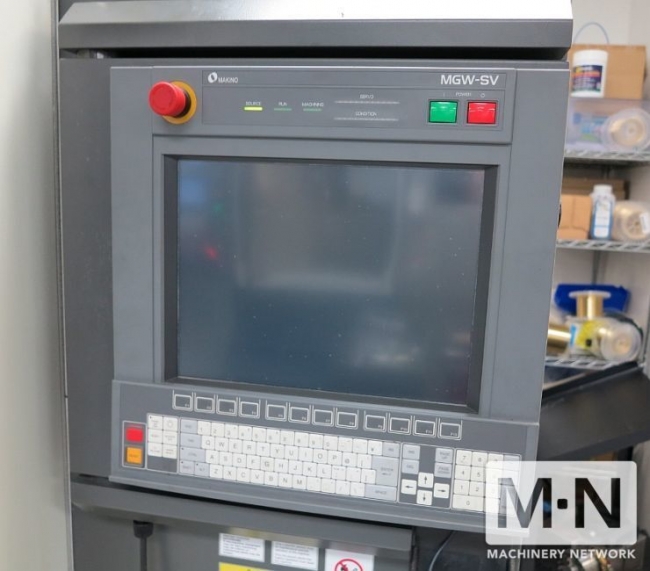

-Makino MGW-SV 5 Axis CNC control (4 axis continuous)

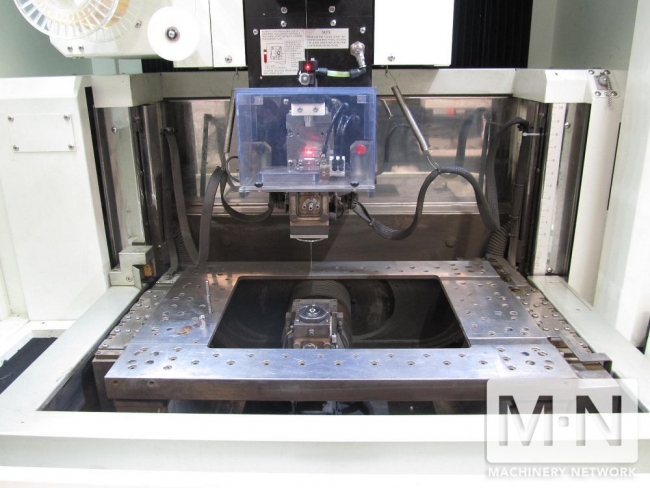

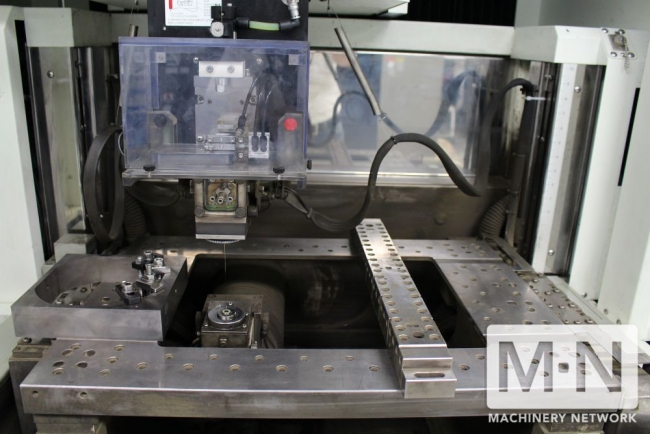

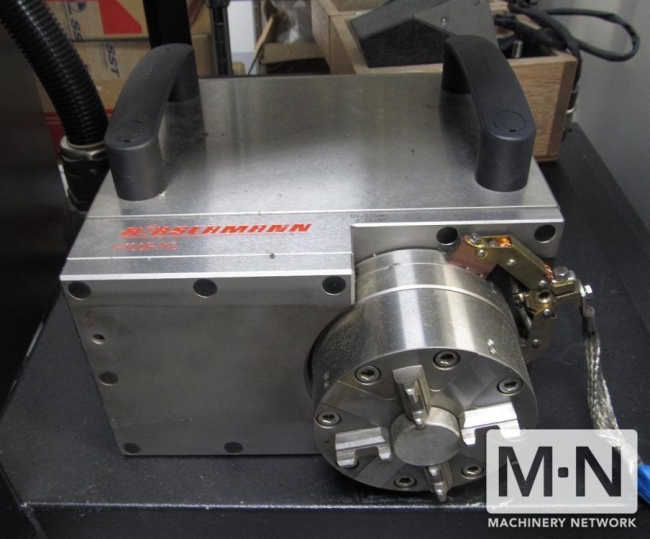

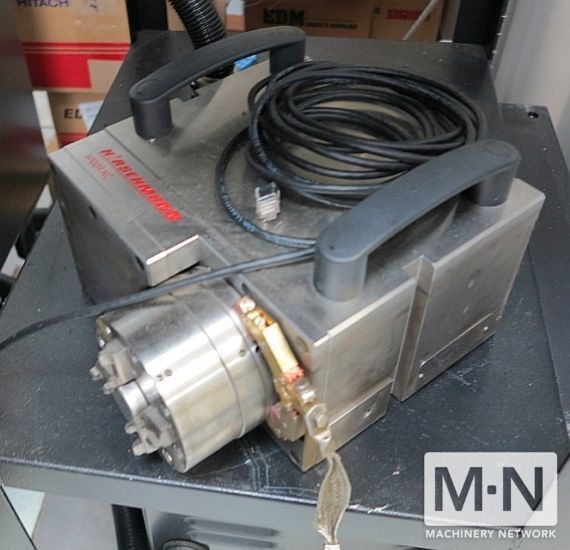

-3.9" Hirschmann H100R.NC Precision Rotary Table
-Twin Jet Automatic Wire threading
-Submerged machining
-Turn & burn
-.002" wire diam. option for fine corner machining
-.05 Micron scale feedback option
- Thermal Guard option
- Chiller
- Manuals
- Exceptional machine
- Maintained by Makino service
Specifications:
-Travels - X axis : 14.56"
- Y axis : 10.63"
- Z axis : 8.66"
- U/V axes: 1.96"
-Taper cap with AWT: +/-15 deg, 3.94" thick
-Rapid traverse rate : 78.7 IPM
-Work table size : 24.8" x 17.7"
-Max. table load : 772 lbs
-Wire electrode diameters: 0.002" - .01"
-Linear position accuracy: +/- .000039" (X & Y )
-Dynamic shape precision : +/- .00006"
-Approx machine dims : 76" x 104" x 82"H
-Machine weight : 9100 lbs
Equipped with:
-Makino MGW-SV 5 Axis CNC control (4 axis continuous)
-3.9" Hirschmann H100R.NC Precision Rotary Table
-Twin Jet Automatic Wire threading
-Submerged machining
-Turn & burn
-.002" wire diam. option for fine corner machining
-.05 Micron scale feedback option
- Thermal Guard option
- Chiller
- Manuals
- Exceptional machine
- Maintained by Makino service
