HAAS VR-11/40
Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VR-11/40
Condition:
Not Specified
Year:
2013
Stock #:
36612
Status:
Sold
Description:
120"X40"X30", CAT 40, 15K RPM, 30 HP,
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

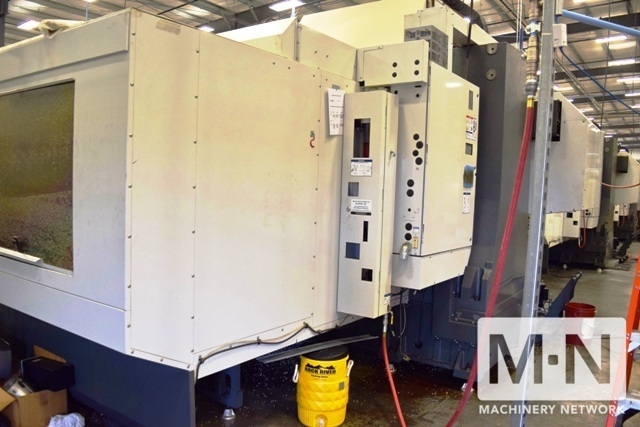

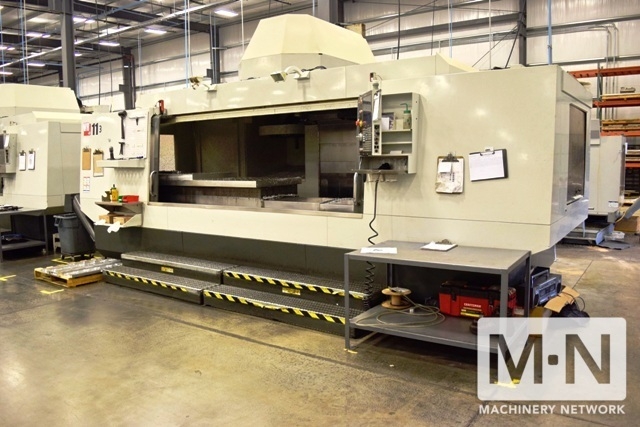

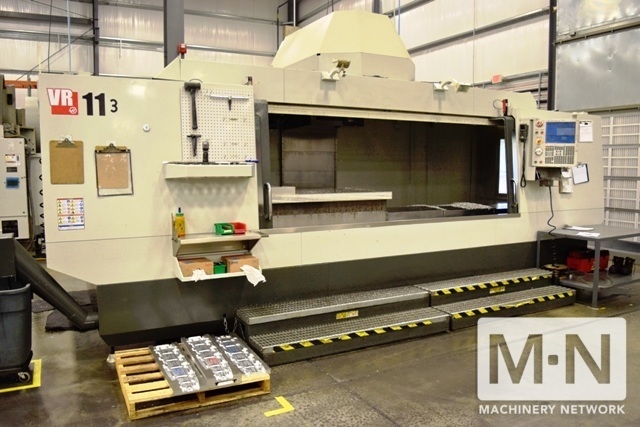

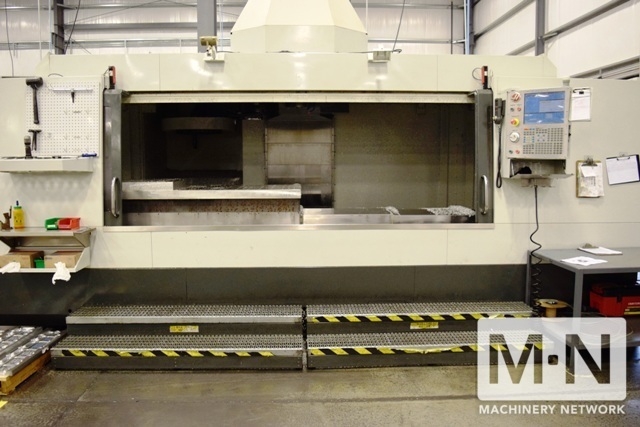

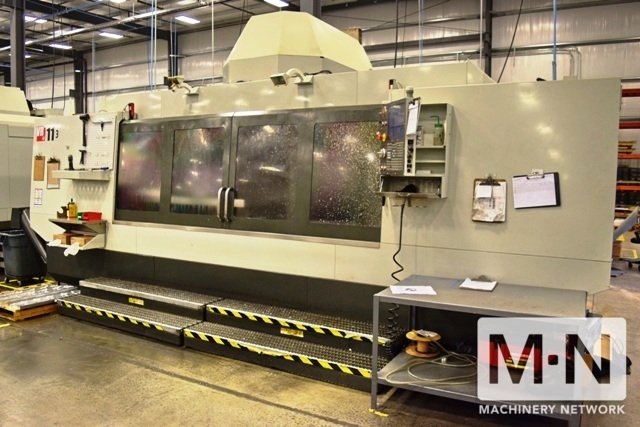

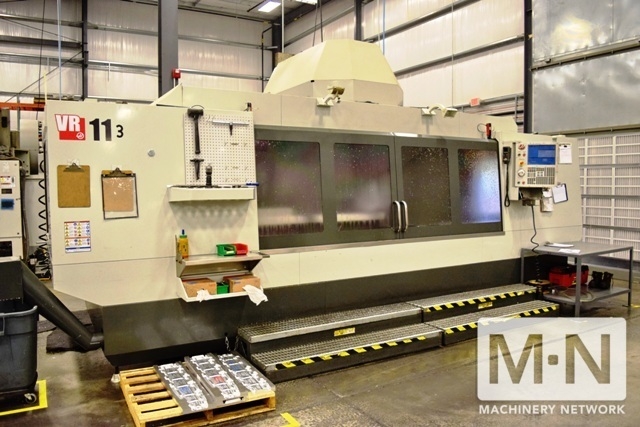

(1) USED HAAS VR-11/40 CNC VERTICAL MACHINING CENTER
NEW 2013
SPECIFICATIONS
X - AXIS TRAVEL (INCHES) 120"
Y - AXIS TRAVEL (INCHES) 40"
Z - AXIS TRAVEL (INCHES) 30"

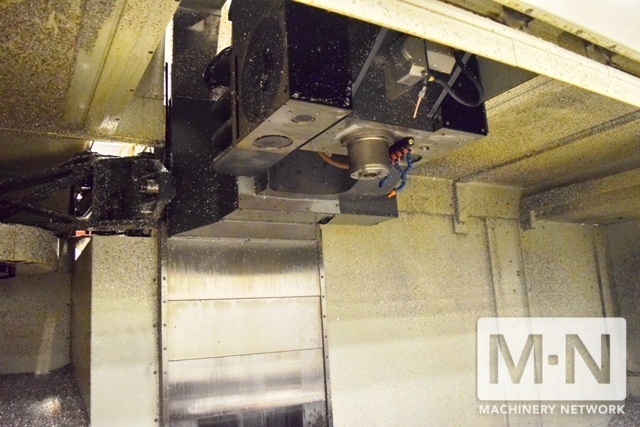

A AXIS (TILT) ± 32 °
B AXIS (ROT) ± 32 °
SPINDLE TAPER (CAT/BT) CAT 40
SPINDLE SPEED 15,000 RPM
SPINDLE MOTOR (HP) 30 HP

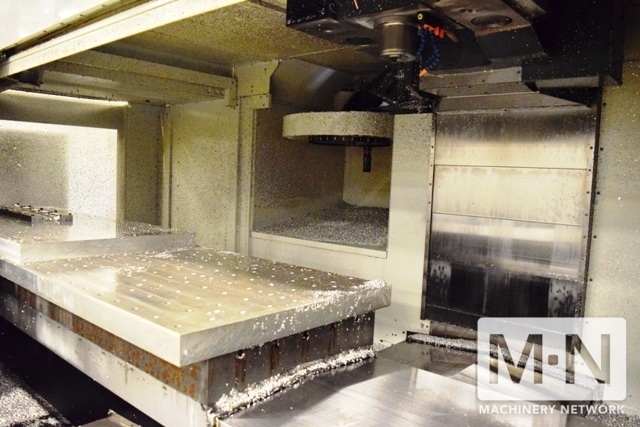

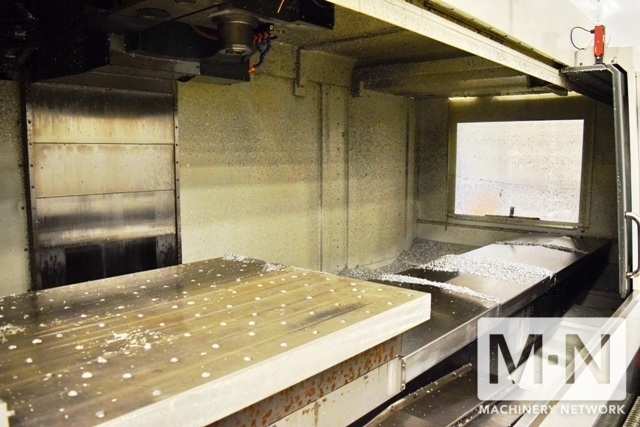

TABLE SIZE - W 28"
TABLE SIZE - L 120"
TOOL CHANGER TYPE 32 Carousel
RAPIDS ON A 1900 °/MIN
RAPIDS ON B 1900 °/MIN
RAPIDS ON X/Y &Z 360 IN/MIN / 600 IN/MIN
AIR REQUIRED 9 SCFM, 100 PSI
DRIVE SYSTEM Vector Drive
MAX RATING X/Y&Z 7.5 HP / 5.0 HP
MAX THRUST X,Y, & Z 3400 LB
MAX CUTTING SPEED (IPM) 360 IPM
MAX CUTTING A & B 600 °/MIN
MAX TOOL DIAMETER 3.5"
MAX TOOL WEIGHT 12 LB
TOOL-TO-TOOL (AVG) 11.0 Sec
COOLANT CAPACITY 95 GAL
BEARING LUBRICATION Air/Oil Injection
REPEATABILITY A & B AXES 10 ARC-SEC
T-SLOT WIDTH 5/8"
EQUIPPED WITH:

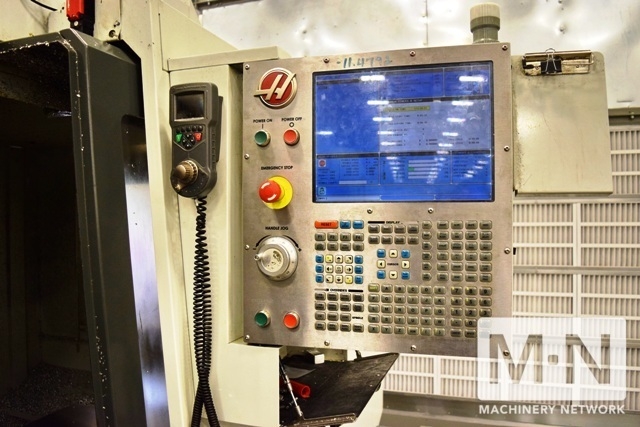

5 AXIS CNC
40 TAPER PROGRAMMABLE COOLANT NOZZLE
750 MB PROGRAM MEMORY
RIGID TAPPING
15000-RPM SPINDLE
WIRELESS INTUITIVE PROBING SYSTEM TOOL PROBE
HIGH INTENSITY LIGHTING
ETHERNET INTERFACE
32-STATION CAROUSEL TOOL CHANGER

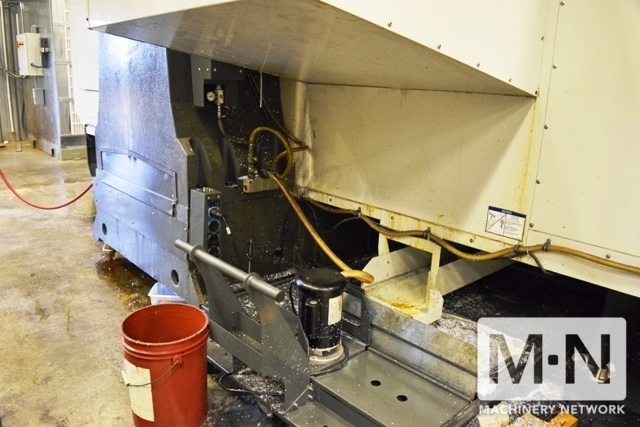

AUTOMATIC CHIP AUGER
HIGH SPEED MACHINING
FLOOD COOLANT SYSTEM
30 HP (22.4 KW) VECTOR DRIVE
WORK PROBE INCLUDED
DUAL HALOGEN LAMPS DOOR ACTIVATED
NEW 2013
SPECIFICATIONS
X - AXIS TRAVEL (INCHES) 120"
Y - AXIS TRAVEL (INCHES) 40"
Z - AXIS TRAVEL (INCHES) 30"
A AXIS (TILT) ± 32 °
B AXIS (ROT) ± 32 °
SPINDLE TAPER (CAT/BT) CAT 40
SPINDLE SPEED 15,000 RPM
SPINDLE MOTOR (HP) 30 HP
TABLE SIZE - W 28"
TABLE SIZE - L 120"
TOOL CHANGER TYPE 32 Carousel
RAPIDS ON A 1900 °/MIN
RAPIDS ON B 1900 °/MIN
RAPIDS ON X/Y &Z 360 IN/MIN / 600 IN/MIN
AIR REQUIRED 9 SCFM, 100 PSI
DRIVE SYSTEM Vector Drive
MAX RATING X/Y&Z 7.5 HP / 5.0 HP
MAX THRUST X,Y, & Z 3400 LB
MAX CUTTING SPEED (IPM) 360 IPM
MAX CUTTING A & B 600 °/MIN
MAX TOOL DIAMETER 3.5"
MAX TOOL WEIGHT 12 LB
TOOL-TO-TOOL (AVG) 11.0 Sec
COOLANT CAPACITY 95 GAL
BEARING LUBRICATION Air/Oil Injection
REPEATABILITY A & B AXES 10 ARC-SEC
T-SLOT WIDTH 5/8"
EQUIPPED WITH:
5 AXIS CNC
40 TAPER PROGRAMMABLE COOLANT NOZZLE
750 MB PROGRAM MEMORY
RIGID TAPPING
15000-RPM SPINDLE
WIRELESS INTUITIVE PROBING SYSTEM TOOL PROBE
HIGH INTENSITY LIGHTING
ETHERNET INTERFACE
32-STATION CAROUSEL TOOL CHANGER
AUTOMATIC CHIP AUGER
HIGH SPEED MACHINING
FLOOD COOLANT SYSTEM
30 HP (22.4 KW) VECTOR DRIVE
WORK PROBE INCLUDED
DUAL HALOGEN LAMPS DOOR ACTIVATED
