TECHNI TJ1500 X-2
Type:
WATER JET CUTTING, CNC
Manufacturer:
TECHNI
Model:
TJ1500 X-2
Condition:
Not Specified
Year:
2010
Stock #:
36390
Status:
Sold
Description:
3' X 5'
Location:
Wisconsin, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

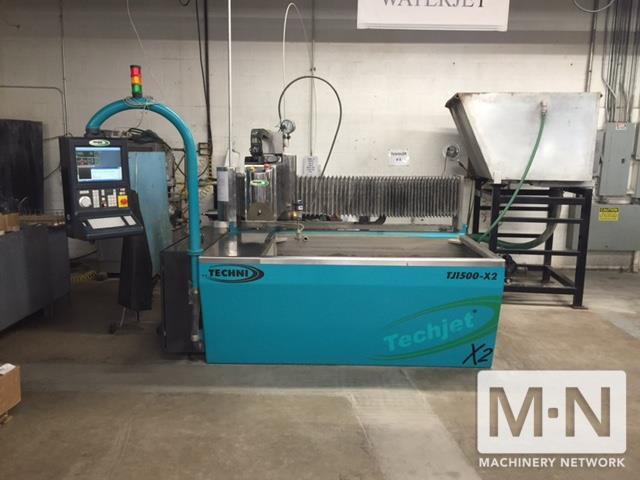

(1) USED TECHNI TJ1500 X-2 WATERJET
NEW 2010
Specifications:
Machine Size (L, W, H) ...............: 5'6" x 8'6" X 6'6" (1700 x 2600 x 2000 mm) (does not include intensifier or Control Cabinet)
Machine Weight (empty)..............: 3530 lbs (1600 kg)
Machine Weight (with water).......: 12500 lbs (5200 kg)
Cutting Table Size ........................: 3'6" x 5'6" (1060 x 1670 mm)
Cutting Area .................................: 3' x 5' (915 x 1525 mm)
Accuracy of Motion*....................: 0.001" (± 0.025mm)
Repeatibility of Motion ................: 0.0005" (± 0.015mm)
Max Air Speed .............................: 1000 ipm (25m/min)
Max Cutting Speed ...................... : 1000 ipm (25m/min)
Max Cutting Pressure ...................: 60000 psi (4137 bar)
Max Material Thickness** ...........: 6" (150 mm)
NOTE: Due to constant endeavour to imporove the machine, the specifiaction may be changed wihtout prior notice.
Equipped With:
- Quantum ESP 66 Intensifier Pump is capable of delivering 66,000 psi continuous running pressure
- KMT (formerly Ingersol-Rand) Autoline Abrasive Cutting Head
- Linear Scale Feedback with Positional Accuracy of .001”/Repeatability of motion .0005”
- Tech Sense Abrasive Monitoring System
- Abrasive Waste Removal System
- Adjustable Water Raise Lower Table
- 360 Degree Fully Enclosed Bellows
- Abrasive Bulk Feeder
- Abrasive Delivery Mini Hopper
- Techni AT2010 CNC Controller and Servo Control System
- Techni Softec Waterjet Cutter Software 1.12.4 Tru Cut Technology, Array Nesting, Auto Nesting, Automatic CAD Package
For further information please call Harvey Geller at 818-455-8103
