HAAS VF-6 TR
Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-6 TR
Condition:
Not Specified
Year:
2012
Stock #:
35939
Status:
Sold
Description:
64"X32"X30", CAT 50, 30 HP, 30 ATC, 10K RPM,
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

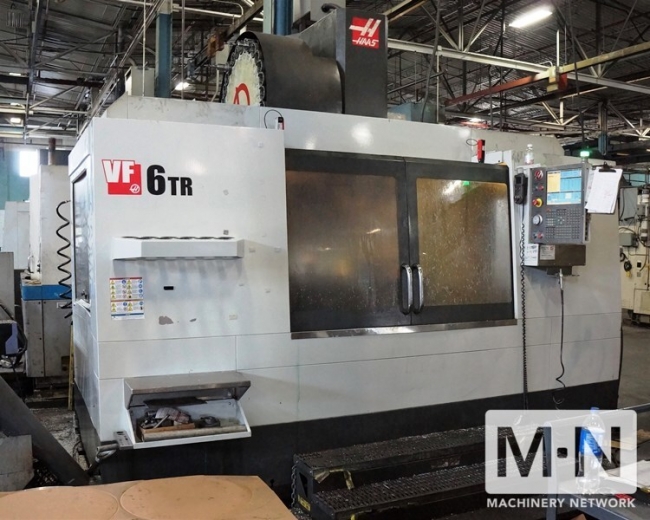

(1) USED HAAS VF-6/50TR CNC VERTICAL MACHINING CENTER
NEW: 2012
SPECIFICATIONS:
X AXIS TRAVEL.................64”
Y AXIS TRAVEL.................32”
Z AXIS TRAVERL................30”
A AXIS (TILT).............+/- 120 DEG.
B AXIS (ROTATE)...............360 DEG.
SPINDLE NOSE TO PLATTER.......20” (-MAX)
SPINDLE NOSE TO TABLE.........35” (-MAX)
SPINDLE MOTOR.................30 HP
SPINDLE SPEED.................10,000 RPM
SPINDLE TAPER...............CAT50
RAPIDS (X,Y,Z)................600” MIN.
TRUNNION:
PLATTER DIAMETER..............12.2”
MAX WEIGHT ON PLATTER.........500 LBS.
MAX PART SWING................31”
NUMBER OF STD. T-SLOTS........6
PILOT BORE DIAMETER...........3.250”
TRUNNION RAPIDS (A & B).......3000 DEG./MIN
MAX CUTTING (A & B)...........2000 DEG./MIN
TOOL CHANGER..................30 ATC
MAX TOOL DIAMETER.............10” (ADJACENT EMPTY)
MAX TOOL DIAMETER.............4” (FULL)
MAX TOOL LENGTH...............16” (FROM GAUGE LINE)
MAX TOOL WEIGHT...............30 LBS.
TOOL-TO-TOOL (AVG.)...........4.2 SEC.
CHIP-TO-CHIP (AVG.)..........6.3 SEC.
EQUIPPED WITH:
HAAS CNC COLOR LCD CONTROL
750 MB EXPANDED MEMORY
USB PORT
ETHERNET OPTION
4TH AXIS DRIVE/BOARD
5TH AXIS DRIVE/BOARD

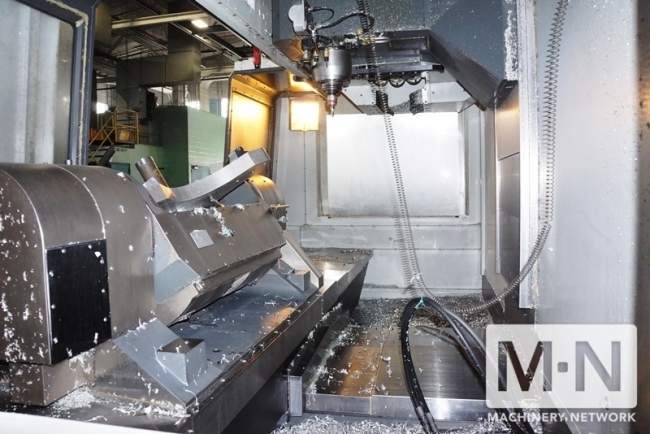

TILTING 2 A-AXIS TRUNNION ROTARY TABLE
ECS-4 / EXTENDED CLEARANCE / 8” COLUMN RISER
HIGH SPEED MACHINING W/ LOOK AHEAD
COORDINATE ROTATION & SCALING
RIGID TAPPING
HIGH INTENSITY LIGHTING
CHIP AUGER
REMOTE JOG HANDLE
MACROS
EARLY POWER FAILURE DETECTION
2-SPEED GEARBOX
NEW: 2012
SPECIFICATIONS:
X AXIS TRAVEL.................64”
Y AXIS TRAVEL.................32”
Z AXIS TRAVERL................30”
A AXIS (TILT).............+/- 120 DEG.
B AXIS (ROTATE)...............360 DEG.
SPINDLE NOSE TO PLATTER.......20” (-MAX)
SPINDLE NOSE TO TABLE.........35” (-MAX)
SPINDLE MOTOR.................30 HP
SPINDLE SPEED.................10,000 RPM
SPINDLE TAPER...............CAT50
RAPIDS (X,Y,Z)................600” MIN.
TRUNNION:
PLATTER DIAMETER..............12.2”
MAX WEIGHT ON PLATTER.........500 LBS.
MAX PART SWING................31”
NUMBER OF STD. T-SLOTS........6
PILOT BORE DIAMETER...........3.250”
TRUNNION RAPIDS (A & B).......3000 DEG./MIN
MAX CUTTING (A & B)...........2000 DEG./MIN
TOOL CHANGER..................30 ATC
MAX TOOL DIAMETER.............10” (ADJACENT EMPTY)
MAX TOOL DIAMETER.............4” (FULL)
MAX TOOL LENGTH...............16” (FROM GAUGE LINE)
MAX TOOL WEIGHT...............30 LBS.
TOOL-TO-TOOL (AVG.)...........4.2 SEC.
CHIP-TO-CHIP (AVG.)..........6.3 SEC.
EQUIPPED WITH:
HAAS CNC COLOR LCD CONTROL
750 MB EXPANDED MEMORY
USB PORT
ETHERNET OPTION
4TH AXIS DRIVE/BOARD
5TH AXIS DRIVE/BOARD
TILTING 2 A-AXIS TRUNNION ROTARY TABLE
ECS-4 / EXTENDED CLEARANCE / 8” COLUMN RISER
HIGH SPEED MACHINING W/ LOOK AHEAD
COORDINATE ROTATION & SCALING
RIGID TAPPING
HIGH INTENSITY LIGHTING
CHIP AUGER
REMOTE JOG HANDLE
MACROS
EARLY POWER FAILURE DETECTION
2-SPEED GEARBOX
