LEISTRITZ POLYMAT 70/500 CNC
Type:
KEYSEATERS
Manufacturer:
LEISTRITZ
Model:
POLYMAT 70/500 CNC
Condition:
Not Specified
Year:
2012
Stock #:
35935
Status:
Sold
Description:
SIEMENS CNC, 2.75" MAX KEYWAY, 19.7" MAX CUT LENGTH
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

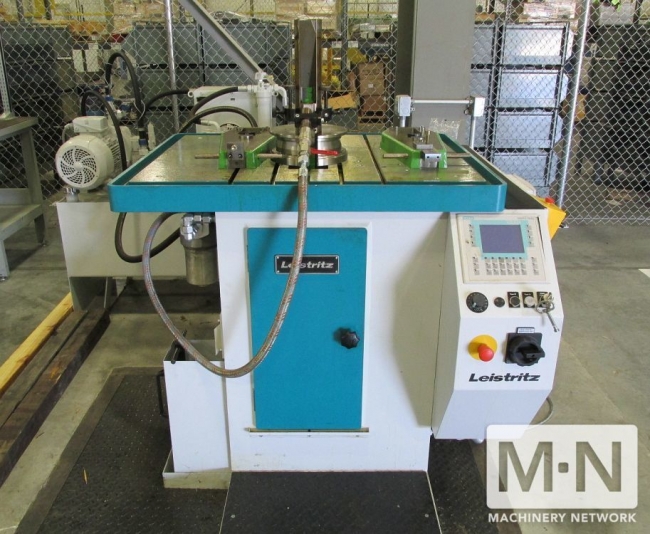

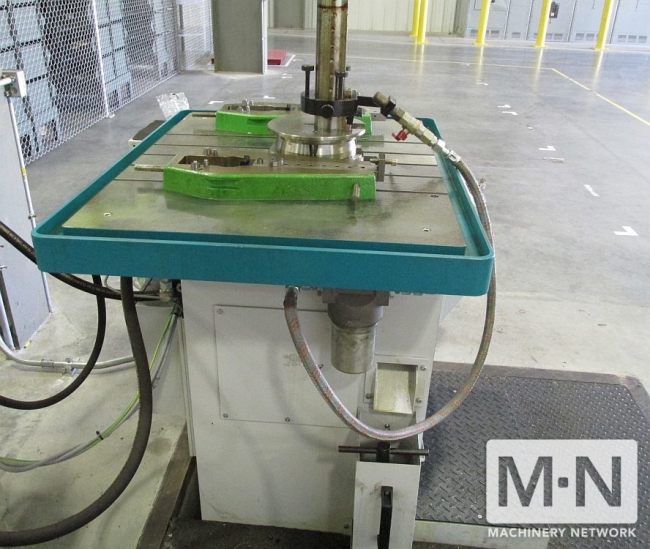

(1) Used Leistritz Polymat 70/500 CNC Keyseater - New 2012
Specifications:
Keyway width: .08" - 2.75" Bore diameter: .39" - 17.3" Max. length of cut:
19.7" Cutting force: 4720 lb-f Ram speed - inf. variable: 0 - 984 IPM Return speed, constant: 1580 IPM In-feed rate, inf. variable: .0004" - .2" Max table load: 44,000 lbs Table dimensions: 35" x 45" Table height: 43" Floor space required: 47" x 90" Pit required 24"D x 60"W x 68"L
Equipped with:

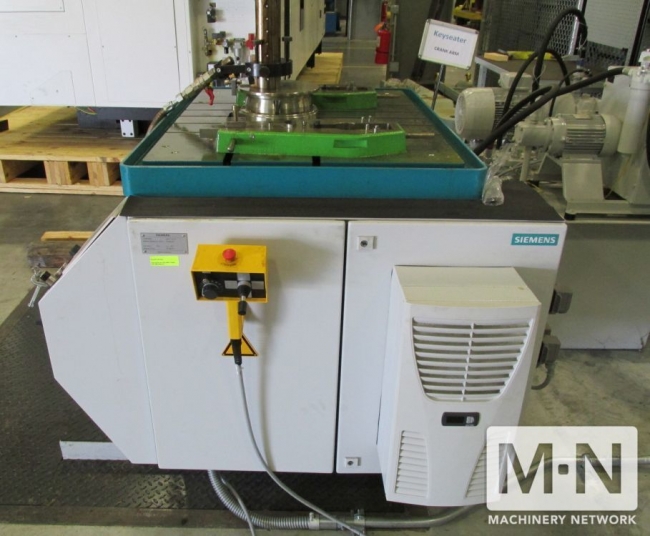

Siemens Sinumerik FM357 CNC control wtih remote pendant
Simple MDI programming

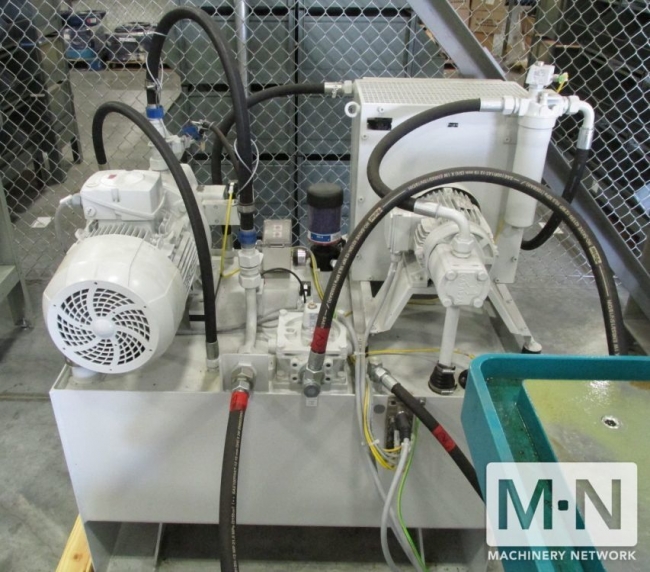

External hydraulic systems
Chip collection system
Specifications:
Keyway width: .08" - 2.75" Bore diameter: .39" - 17.3" Max. length of cut:
19.7" Cutting force: 4720 lb-f Ram speed - inf. variable: 0 - 984 IPM Return speed, constant: 1580 IPM In-feed rate, inf. variable: .0004" - .2" Max table load: 44,000 lbs Table dimensions: 35" x 45" Table height: 43" Floor space required: 47" x 90" Pit required 24"D x 60"W x 68"L
Equipped with:
Siemens Sinumerik FM357 CNC control wtih remote pendant
Simple MDI programming
External hydraulic systems
Chip collection system
