HAAS OM-2A
Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
OM-2A
Condition:
Not Specified
Year:
2007
Stock #:
35437
Status:
Sold
Description:
12"x10"x12", 3k rpm, 20 ATC, 4th & 5th Axis Drives
Videos:
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

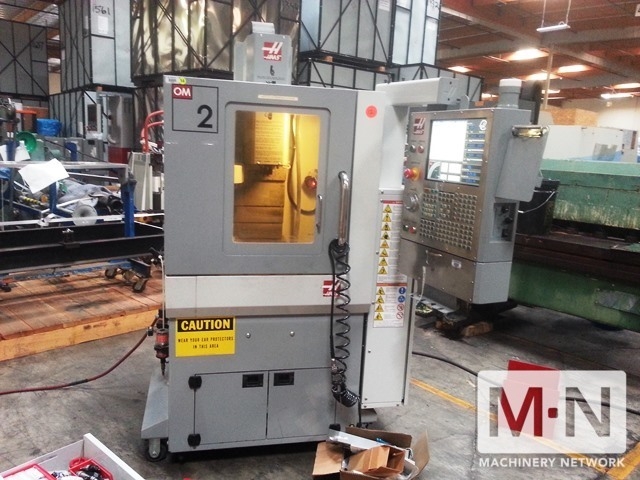

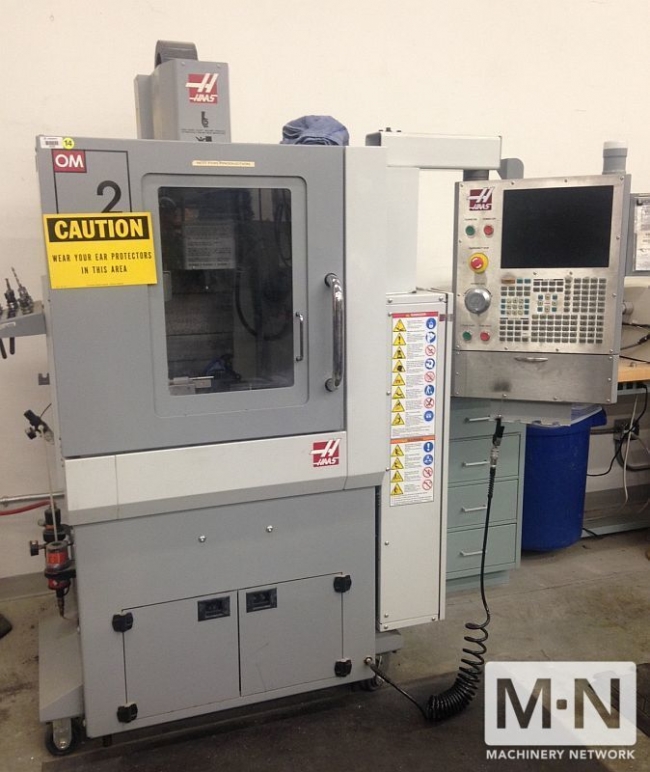

Haas Office-Mill OM2A CNC MILL NEW-2007
Includes 4th & 5th Axis Drives with Extended Memory

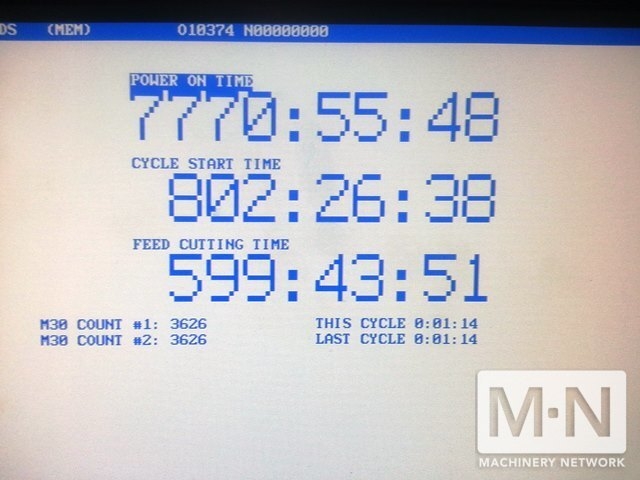

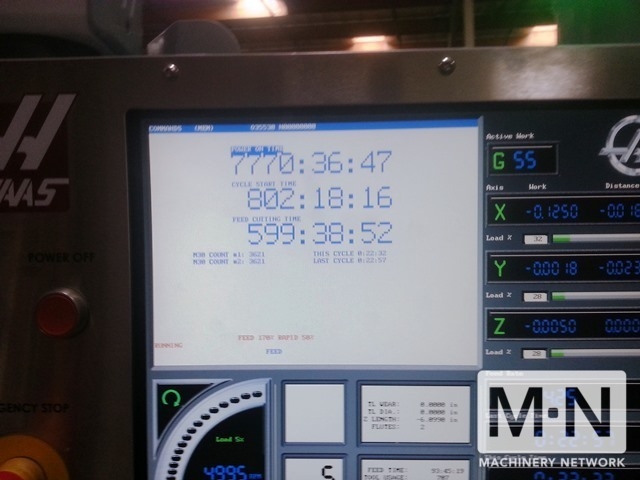

599 Feed Cutting Time!!!
Machine was in R&D section of a medical facility !
TRAVELS
S.A.E. X Axis 12 " Y Axis 10 " Z Axis 12 " Spindle Nose to Table (~ max) 15.25 " Spindle Nose to Table (~ min) 3.25 " TABLE S.A.E. Length 20 " Width 10 " T-Slot Width 0.438 " T-Slot Center Distance 3.375 " Max Weight on Table (evenly distributed) 150 lb SPINDLE S.A.E. Max Rating 5 hp Max Speed 30000 rpm Max Torque 5 ft-lb @ 3000 rpm Drive System Direct Speed Belt Drive Taper ISO/20 Cooling Air and coolant recirculation SPINDLE (OPT) S.A.E. Max Rating 5 hp Max Speed 50000 rpm Max Torque 3.7 ft-lb @ 3700 rpm Taper ISO 20 FEEDRATES S.A.E. Rapids on X 757 in/min Rapids on Y 757 in/min Rapids on Z 757 in/min Max Cutting 500 in/min AXIS MOTORS S.A.E. Max Thrust X 1149 lb Max Thrust Y 1149 lb Max Thrust Z 1149 lb TOOL CHANGER S.A.E. Type Carousel Capacity 20 Max Tool Diameter (full) 2.3 " Max Tool Weight 5 lb Tool-to-Tool (avg) 3.2 sec GENERAL S.A.E. Air Required 2 scfm @ 80-125 psi Coolant Capacity 13 gal Equipped With:
Expanded Memory To 16MB
8 Spare M Codes
4th Axis Drive
5th Axis Drive
Caster Wheel Set
Ethernet/Hard Drive

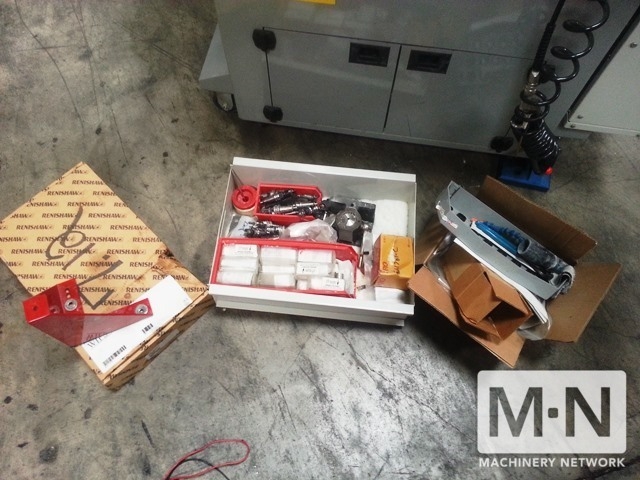

Renishaw Probe
Assorted Tool Holders
Includes 4th & 5th Axis Drives with Extended Memory
599 Feed Cutting Time!!!
Machine was in R&D section of a medical facility !
TRAVELS
S.A.E. X Axis 12 " Y Axis 10 " Z Axis 12 " Spindle Nose to Table (~ max) 15.25 " Spindle Nose to Table (~ min) 3.25 " TABLE S.A.E. Length 20 " Width 10 " T-Slot Width 0.438 " T-Slot Center Distance 3.375 " Max Weight on Table (evenly distributed) 150 lb SPINDLE S.A.E. Max Rating 5 hp Max Speed 30000 rpm Max Torque 5 ft-lb @ 3000 rpm Drive System Direct Speed Belt Drive Taper ISO/20 Cooling Air and coolant recirculation SPINDLE (OPT) S.A.E. Max Rating 5 hp Max Speed 50000 rpm Max Torque 3.7 ft-lb @ 3700 rpm Taper ISO 20 FEEDRATES S.A.E. Rapids on X 757 in/min Rapids on Y 757 in/min Rapids on Z 757 in/min Max Cutting 500 in/min AXIS MOTORS S.A.E. Max Thrust X 1149 lb Max Thrust Y 1149 lb Max Thrust Z 1149 lb TOOL CHANGER S.A.E. Type Carousel Capacity 20 Max Tool Diameter (full) 2.3 " Max Tool Weight 5 lb Tool-to-Tool (avg) 3.2 sec GENERAL S.A.E. Air Required 2 scfm @ 80-125 psi Coolant Capacity 13 gal Equipped With:
Expanded Memory To 16MB
8 Spare M Codes
4th Axis Drive
5th Axis Drive
Caster Wheel Set
Ethernet/Hard Drive
Renishaw Probe
Assorted Tool Holders
