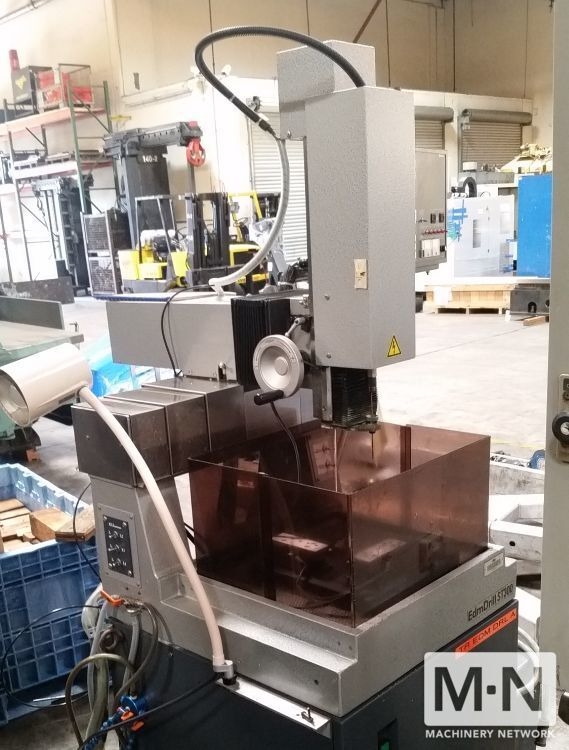

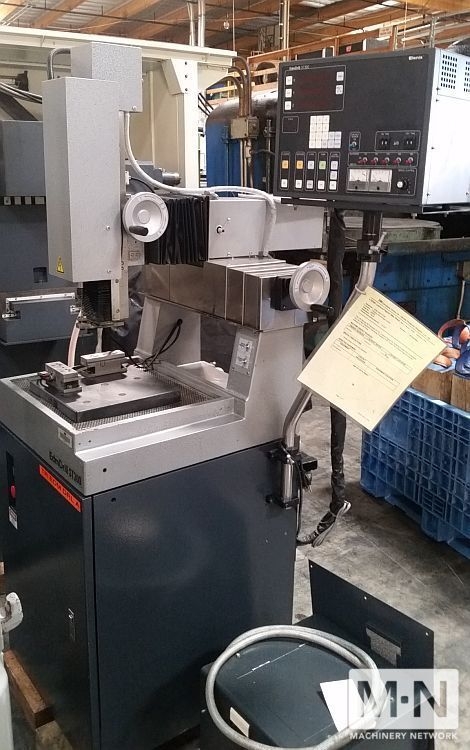

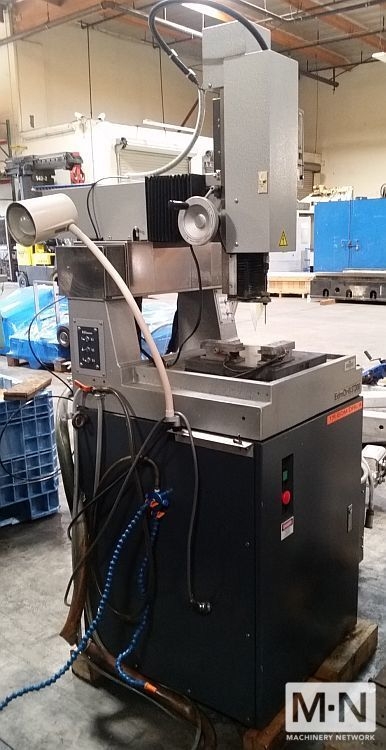

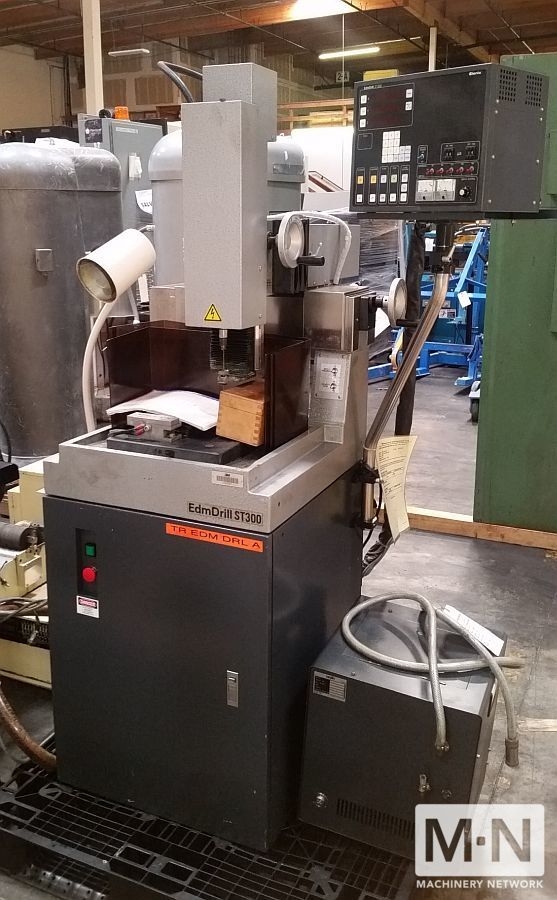

CURRENT ST300

Type:

ELECTRIC DISCHARGE MACHINES, (Small Hole)

Manufacturer:

CURRENT

Model:

ST300

Condition:

Not Specified

Year:

1995

Stock #:

34999

Status:

Sold

Description:

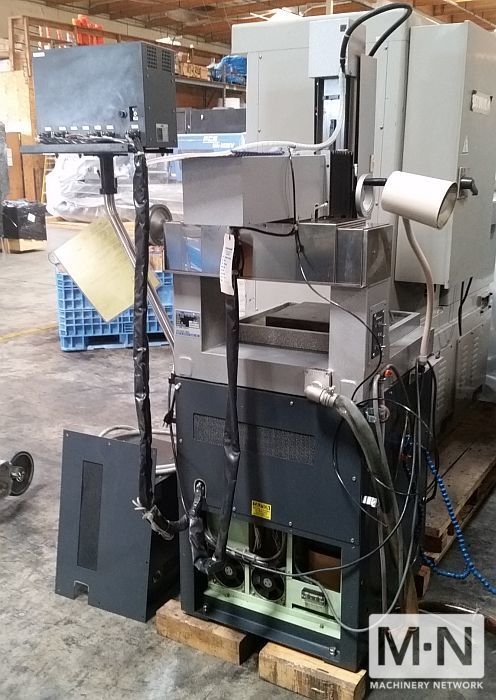

EDM Drill 12" x 8" x 16", auto Z, DRO

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) Used Current Model ST-300 EDM Drill - New 1995

Machine Specifications
Travels - X Axis: 12" (300mm)
- Y Axis: 8" (200mm)
- Z Axis: 16" (400mm)
Guide Axis Travel: 10.5" (266mm)
Workpiece Weight (max): 682 lbs. (310kg)
Granite Worktable Size: 12"x12" (300x300mm)
Electrode Drill Diameters: 0.004" - 0.256" (0.1-6.5mm)
Machine Weight: 770 lbs. (350kg)
Floor Footprint: 75" x 79" (1905x2007mm)

EQUIPPED WITH:

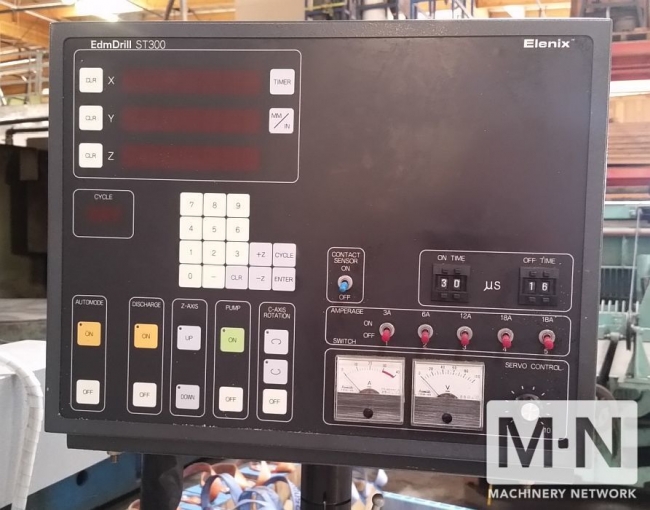

Current Full Function Control
Single-cast bridge design
Closed loop glass scales

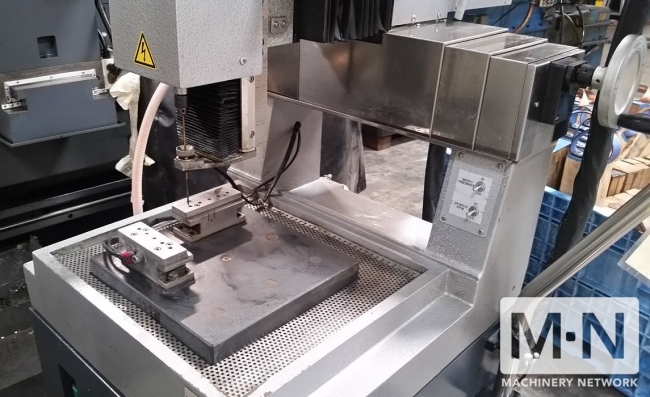

Granite work table with s/steel threaded inserts
Programmable auto electrode retract
Auto mode’ interface to PLC or indexer
Memory to reach depth after machining interruption

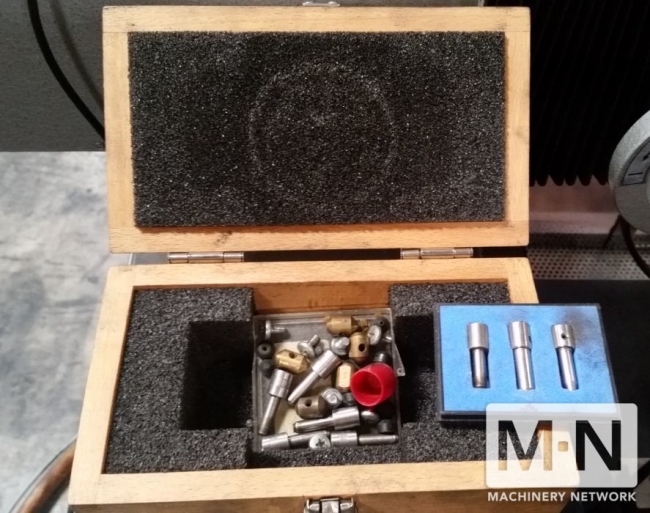

Small selection elctrode guides
Manual

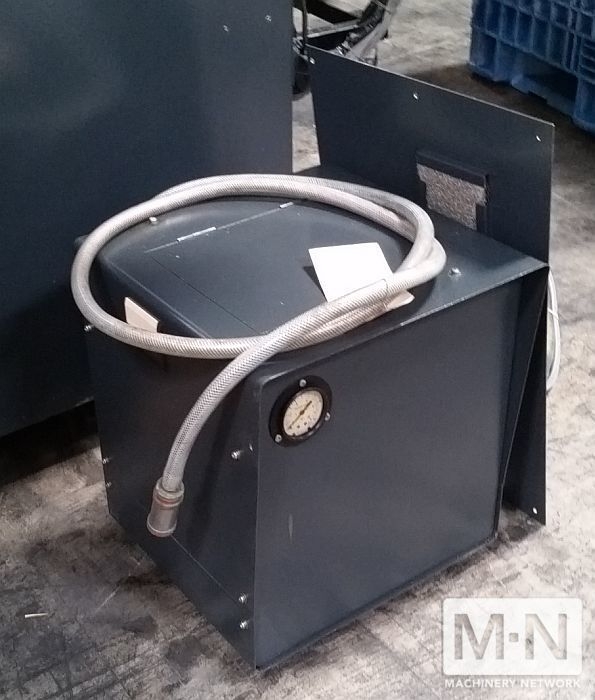

Coolant tank
Splash guard
