OKUMA MILLAC
Type:
Vertical Machining Centers
Manufacturer:
OKUMA
Model:
MILLAC
Condition:
Not Specified
Year:
2008
Stock #:
34863
Status:
Sold
Description:
OKUMA MILLAC MILLAC 852V
Location:
New York, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

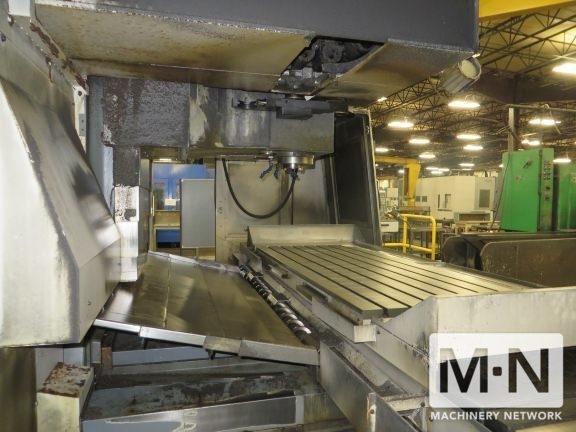

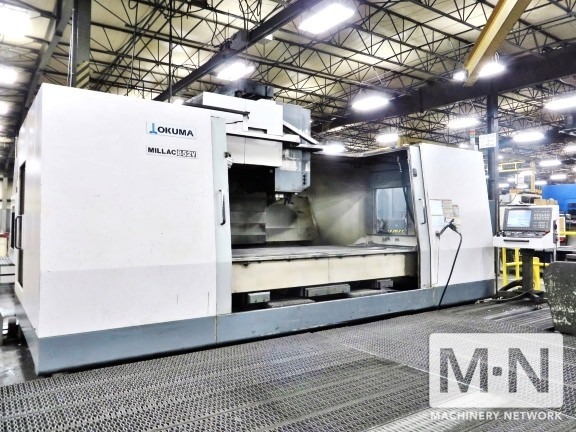

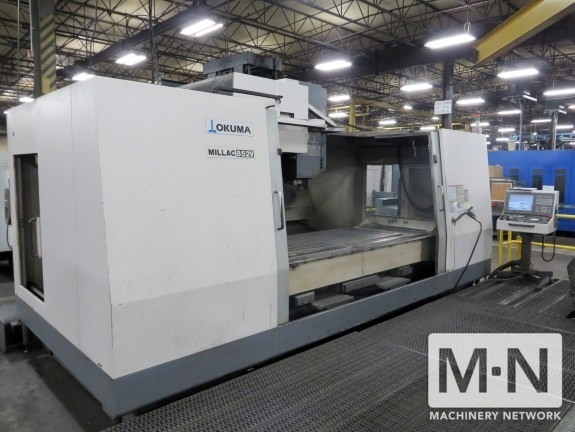

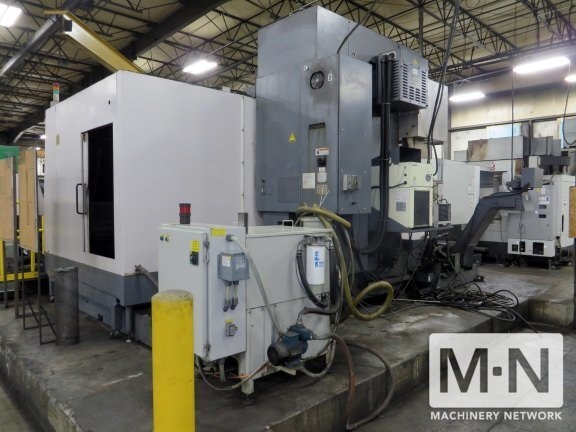

(1) USED OKUMA MILLAC 852V CNC VERTICAL MACHINING CENTER
NEW 2008
SPECIFICATIONS:
CAPACITY:
X-AXIS TRAVEL ......................80.71"
Y-AXIS TRAVEL ......................33.46"
Z-AXIS TRAVEL ......................29.53"

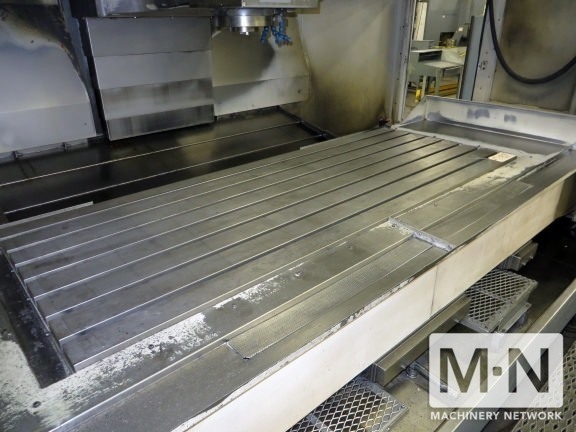

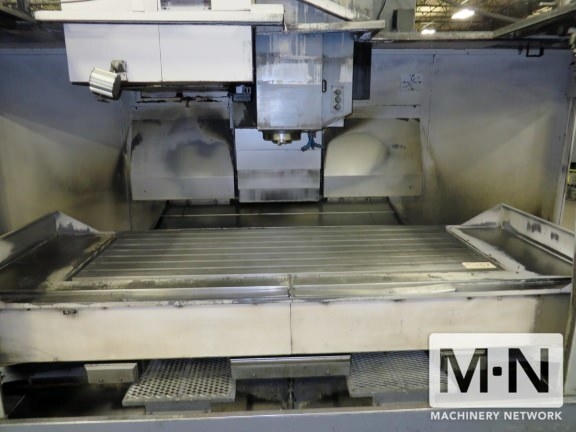

TABLE SIZE ......................86.61" X 33.46"
TABLE LOAD CAPACITY ..................5500 LBS
SPINDLE SPEEDS (2) ...................30-6000 RPM

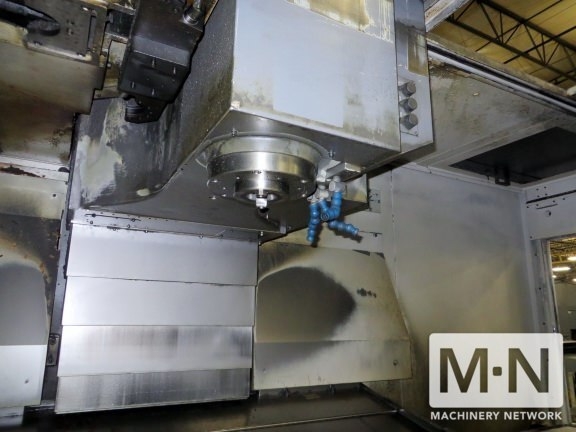

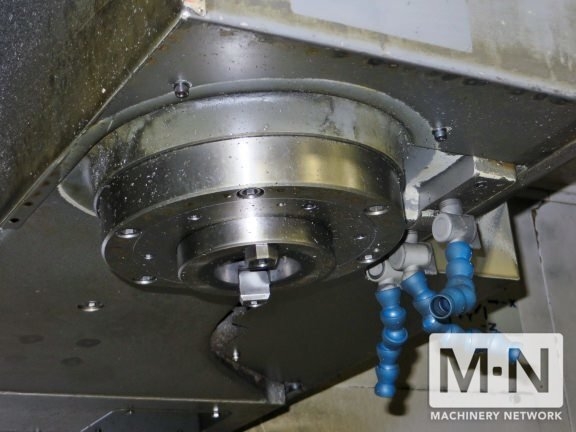

SPINDLE TAPER ......................BT 50
SPINDLE MOTOR ......................24 HP/20 HP
RAPID TRAVERSE, X AND Y AXES .........472 IPM
RAPID TRAVERSE, Z AXIS ...............630 IPM
FEEDRATES ............................0.1 IPM TO 5,000 IPM
MAX TOOL DIAMETER, PODS FULL/EMPTY ...7.87" / 4.72"
MAX TOOL LENGTH ......................15.75"
MAX TOOL WEIGHT ......................44 LBS
FLOOR SPACE ......................330" X 165"
MACHINE HEIGHT ......................131"
APPROX WEIGHT ......................40,700 LBS
EQUIPPED WITH:

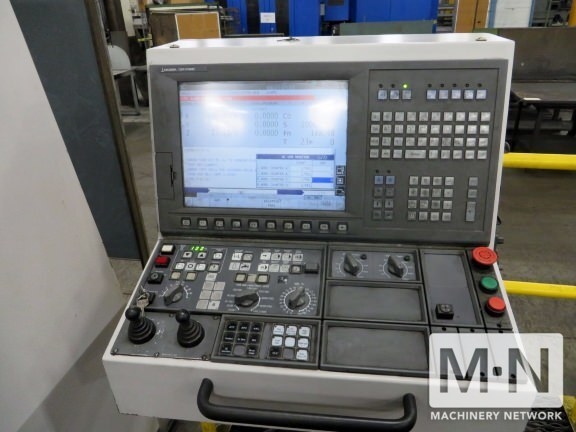

OKUMA OSP-P200M CNC CONTROLS

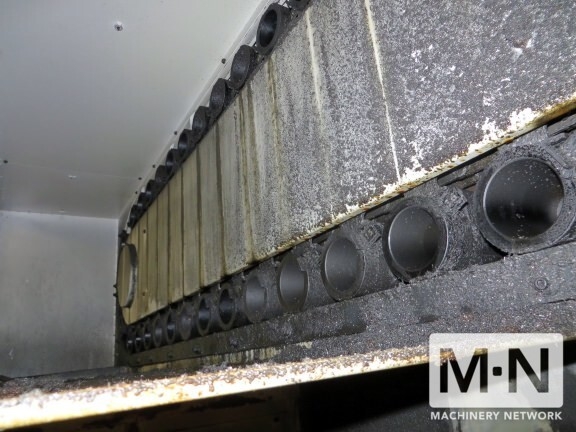

36-POSITION AUTOMATIC TOOL CHANGER

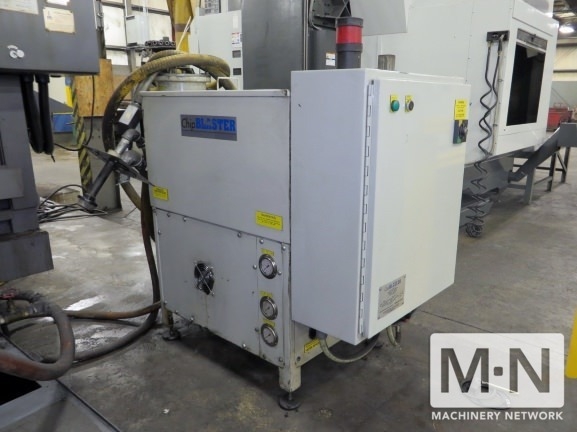

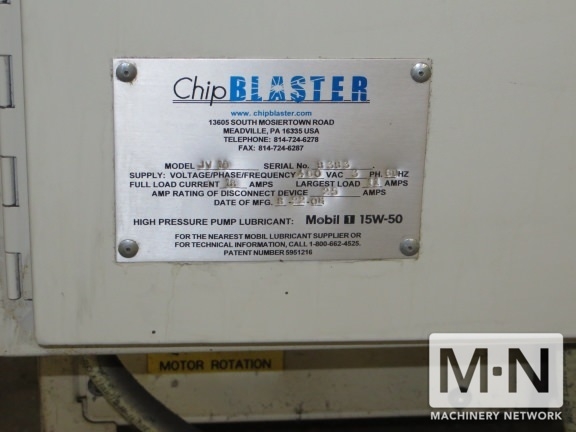

HIGH PRESSURE COOLANT THRU SPINDLE

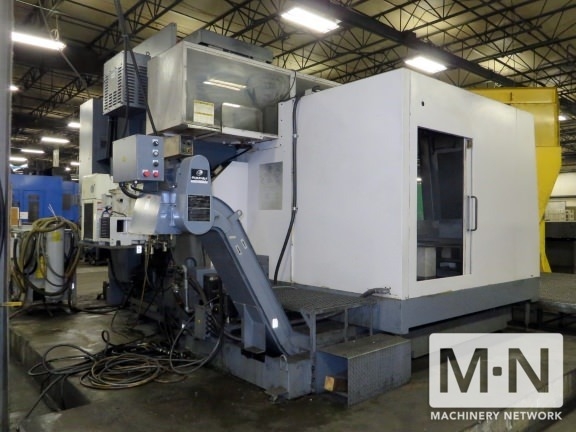

CHIP CONVEYOR
REMOTE MANUAL PULSE GENERATOR
NEW 2008
SPECIFICATIONS:
CAPACITY:
X-AXIS TRAVEL ......................80.71"
Y-AXIS TRAVEL ......................33.46"
Z-AXIS TRAVEL ......................29.53"
TABLE SIZE ......................86.61" X 33.46"
TABLE LOAD CAPACITY ..................5500 LBS
SPINDLE SPEEDS (2) ...................30-6000 RPM
SPINDLE TAPER ......................BT 50
SPINDLE MOTOR ......................24 HP/20 HP
RAPID TRAVERSE, X AND Y AXES .........472 IPM
RAPID TRAVERSE, Z AXIS ...............630 IPM
FEEDRATES ............................0.1 IPM TO 5,000 IPM
MAX TOOL DIAMETER, PODS FULL/EMPTY ...7.87" / 4.72"
MAX TOOL LENGTH ......................15.75"
MAX TOOL WEIGHT ......................44 LBS
FLOOR SPACE ......................330" X 165"
MACHINE HEIGHT ......................131"
APPROX WEIGHT ......................40,700 LBS
EQUIPPED WITH:
OKUMA OSP-P200M CNC CONTROLS
36-POSITION AUTOMATIC TOOL CHANGER
HIGH PRESSURE COOLANT THRU SPINDLE
CHIP CONVEYOR
REMOTE MANUAL PULSE GENERATOR
