Machinery Network > Used Inventory > HAAS VF10

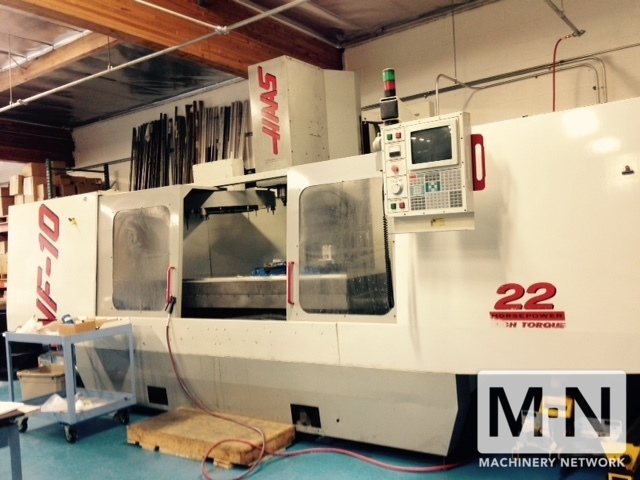

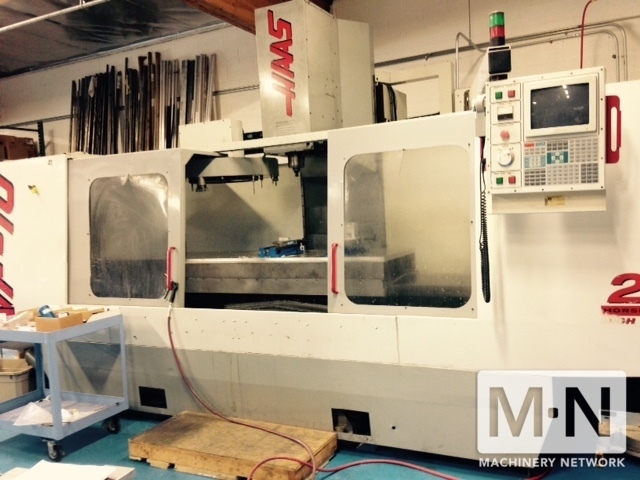

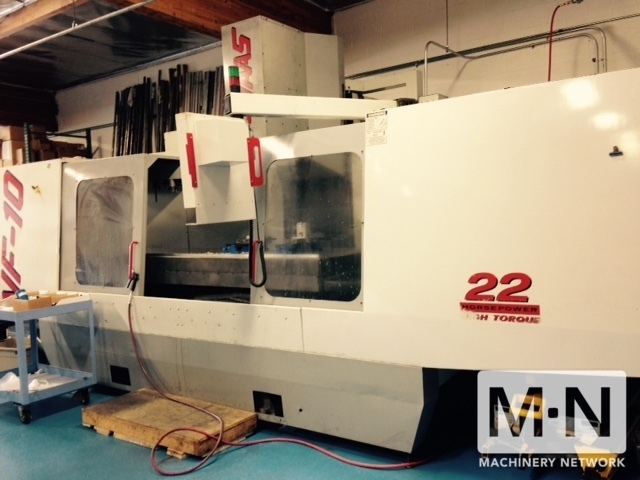

HAAS VF10

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF10
Condition:
Not Specified
Year:
1997
Stock #:
34852
Status:
Sold
Description:
1997 HAAS VF10 120" x 32" x 30". 4th axis, CT40
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

(1) USED HAAS VF10 VERTICAL MACHINING CENTER
MFG. 1997

SPECIFICATIONS:

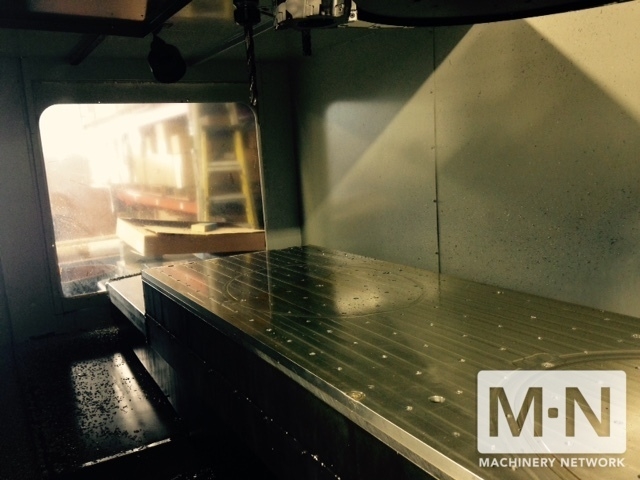

TABLE SIZE:..............................120" x 28"
MAX. TABLE LOAD (EVENLY DISTRIB.):...... 4,000 LBS
SPINDLE NOSE TO TABLE TOP:...............4" - 34"
TRAVELS:
--X: ....................................120"
--Y: ....................................32"
--Z: ....................................30"
RAPID TRAVERSE RATE X AXIS:..............360 IPM
RAPID TRAVERSE RATE Y & Z AXES:..........600 IPM
CUTTING FEED RATE ALL AXES:..............0.1 - 300 IPM

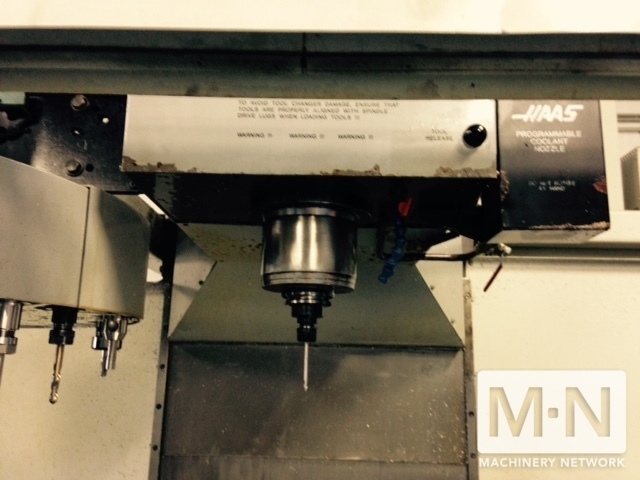

SPINDLE SPEEDS (2 SPEED GEARED):.........0 - 10,000 RPM
SPINDLE TAPER:...........................CAT 40
SPINDLE MOTOR:...........................22 HP (HIGH TORQUE)

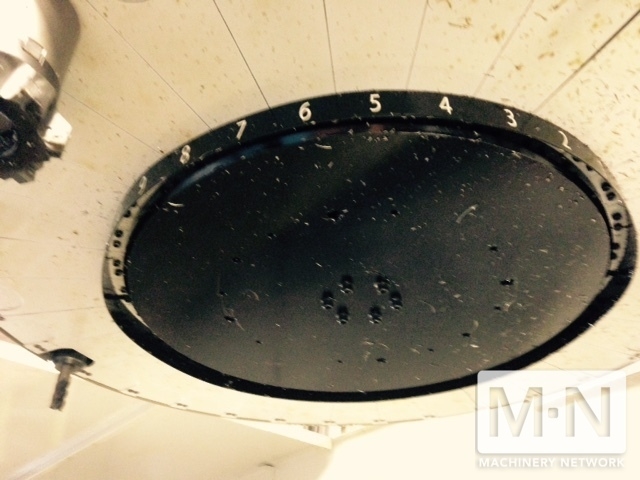

TOOL CHANGER:............................20 STATIONS
MAX. TOOL WEIGHT:........................12 LBS
APPROX. DIMENSIONS:......................257" x 123" x 129"
APPROX. WEIGHT:..........................28,000 LBS

EQUIPPED WITH:
NEW 2-SPEED GEARBOX
PROGRAMMABLE COOLANT
ALUMINUM SUB-PLATE
CHIP AUGER
NEW WAY COVERS
ALL AVAILABLE MANUAL

RAN ALUMINUM ONLY, UNDER POWER, IN CLEAN AEROSPACE SHOP!
