Machinery Network > Used Inventory > HAAS VR-8

HAAS VR-8

Type:

Vertical Machining Centers

Manufacturer:

HAAS

Model:

VR-8

Condition:

Not Specified

Year:

2012

Stock #:

34783

Status:

Sold

Description:

HAAS VR-8, 64"x40"x30",

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

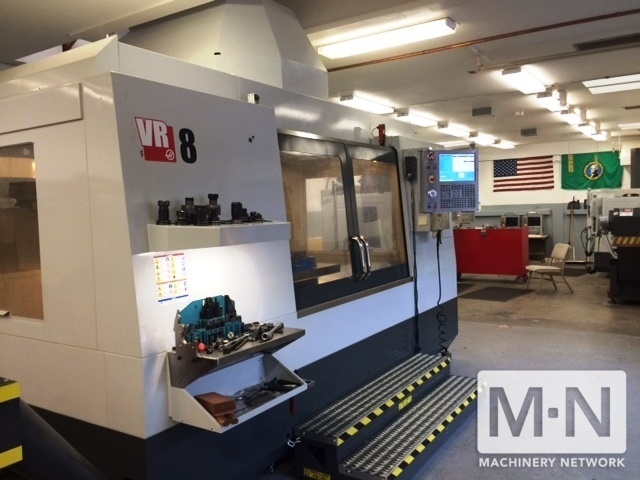

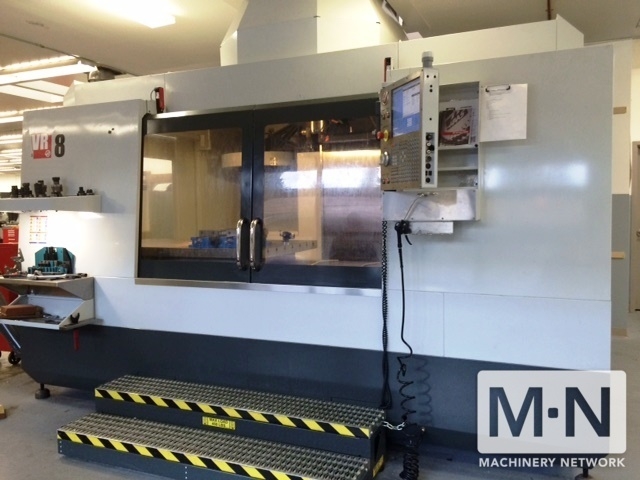

(1) USED HAAS MODEL VR-8 5-AXIS CNC VERTICAL MACHINING CENTER

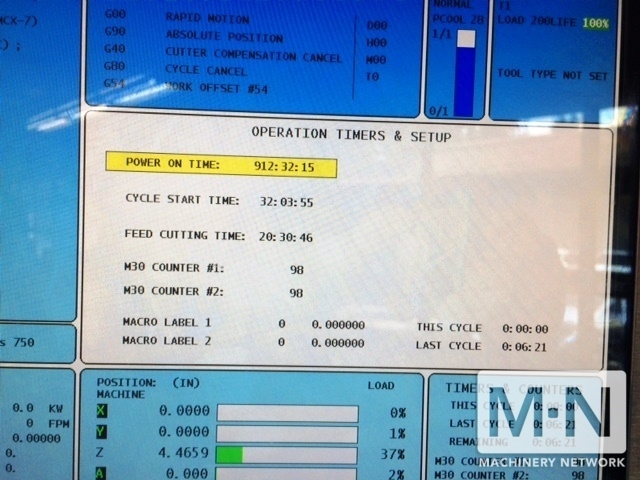

NEW: 2012 FEED CUT HOURS: ONLY 20 HOURS !!

SPECIFICATIONS:
TRAVELS:
X-AXIS: ........................... 64"
Y-AXIS: ........................... 40"
Z-AXIS: ........................... 30"
A&B-AXIS: ......................... +/- 32 DEGREES
SPINDLE MOTOR: .................... 30 HP
SPINDLE SPEED: .................... 15,000 RPM
SPINDLE TAPER: .................... CAT 40
TOOLS: ............................ 32 ATC
FEEDRATES:
RAPID ON X-AXIS: .................. 540 IPM (13.7 M/MIN)
RAPIDS ON Y, Z-AXIS: .............. 600 IPM (15.2 M/MIN)
RAPIDS ON A, B: ................... 1900 DEG/MIN
MAX CUTTING RATE X, Y, Z: ......... 500 IPM (12.7 M/MIN)
MAX CUTTING RATE A, B: ............ 600 DEG/MIN
ACCURACY
X, Y, Z AXES:
POSITIONING WITH SCALES: .......... 0.0003" (0.0076 MM)
POSITIONING WITHOUT SCALES: ....... 0.0008" (0.0203 MM)
REPEATABILITY WITH SCALES: ........ 0.0002" (0.0051 MM)
REPEATABILITY W/O SCALES: ......... 0.0004" (0.0102 MM)
A, B AXES (STATIC CONDITIONS):
POSITIONING: ...................... 45 ARC-SEC
REPEATABILITY: .................... 10 ARC-SEC

EQUIPPED WITH:
HAAS CONTROL
DUAL AXIS HEAD
PROGRAMMABLE COOLANT
AUTOMATIC CHIP AUGER
750 MB PROGRAM MEMORY
HIGH SPEED MACHINING OPTION
REMOTE JOG HANDLE
2ND HOME BUTTON
15” COLOR LCD MONITOR
USB PORT
MEMORY LOCK KEYSWITCH
RIGID TAP
95 GALLON FLOOD COOLANT SYSTEM
INTUITIVE PROGRAMMING
WIRELESS INTUITIVE PROBING SYSTEM, RENISHAW
