OKUMA MILLAC 1000VH
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
OKUMA
Model:
MILLAC 1000VH
Condition:
Not Specified
Year:
2011
Stock #:
34612
Status:
Sold
Description:
OKUMA MILLAC 1000VH 5-AXIS
Location:
Florida, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

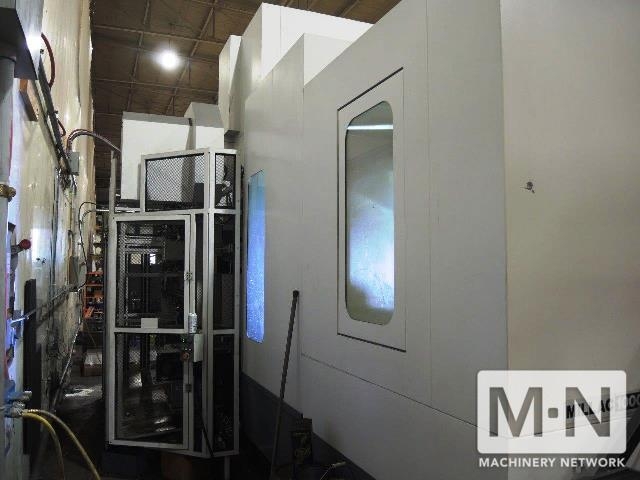

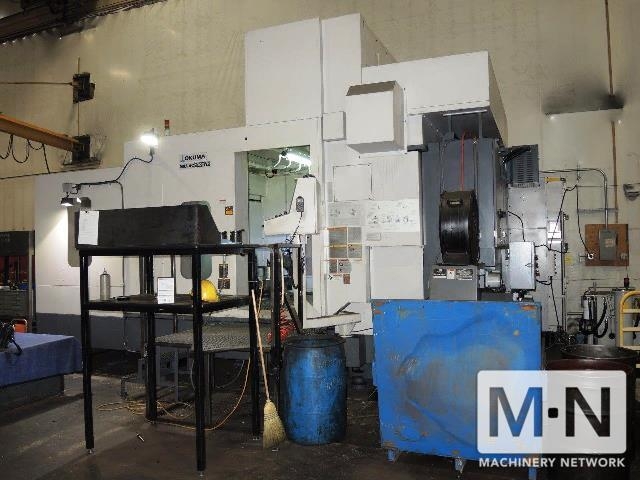

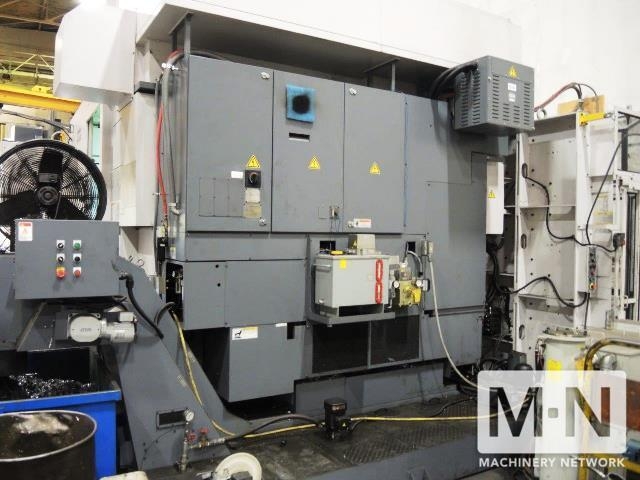

(1) USED OKUMA MILLAC 1000VH HORIZONTAL 5 AXIS MACHINING CENTER
NEW 2011 **1700 HOURS**
SPECIFICATIONS:
TRAVELS:
X-AXIS:.........................................72.83”
Y-AXIS:.........................................39.37”
Z-AXIS:.........................................51.18”
SPINDLE NOSE TO PALLET TOP (SPINDLE VERT.):......-3.94” TO 35.43”
SPINDLE CENTER TO PALLET CENTER (SPINDLE VERT.):.-22.83” TO 50”
SPINDLE CENTER TO PALLET TOP (SPINDLE HORIZ.):...5.91” TO 45.28”
SPINDLE NOSE TO PALLET CENTER (SPINDLE HORIZ.):.-32.68” TO 40.16”
MAX WORK DIMENSIONS:.............................39.37” X 39.37”
MAX LOAD CAPACITY:...............................4,400 LBS
INDEXING ANGLE (ANY NC ORIENTATION):.............0.001°
FLOOR TO PALLET TOP:.............................50.79”
SPINDLE SPEED MIN/MAX:...........................6,000 RPM
SPINDLE TAPER: ...........................BIG+ CT-50
SPINDLE SWIVEL ANGLE:............................150°
MINIMUM SPINDLE INDEXING INPUT:..................0.001°
RAPID TRAVERSE RATE:
X/Y: ............................................945 IPM
Z: ..............................................472 IPM
RAPID TRAVERSE RATE DEG/MIN: B/C:................4
MAXIMUM CUTTING FEED RATE: X/Y/Z:................10,000IPM
MAXIMUM CUTTING FEED RATE B/C AXIS:..............1,080 IPM
SPINDLE HP:......................................30/25 (30 MIN/CONT)
SPINDLE SWIVEL SERVO MOTOR:......................4 HP
TABLE INDEXING SERVE MOTOR:......................9.3 HP
TOOL SHANK:...................................BT-50 BIG +

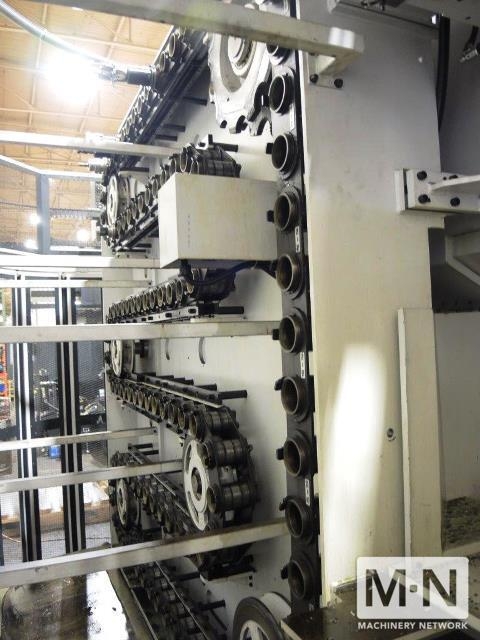

TOOL CAPACITY:...................................120
MAX. TOOL DIAMETER (W/ ADJACENT TOOL):...........4,72
MAX. TOOL DIAMETER (W/O ADJACENT TOOL):..........9.45
MAX TOOL LENGTH:.................................19.7”
MAX TOOL WEIGHT:.................................25 LBS
TIME NEEDED FOR TOOL CHANGE (TOOL TO TOOL):......9 SEC.
APC TYPE:...................................2-PALLET ROTARY SHUTTLE
AUTOMATIC PALLET CHANGER TIME: ..................30 SECONDS
EFFECTIVE WIDTH BETWEEN COLUMNS:.................49.21
SYSTEM DIMENSIONS:.........................204.33” X 279.53” X 166.30”
SYSTEM WEIGHT:...................................53,000 LBS
POWER CAPACITY:..................................60 KVA
EQUIPPED WITH:

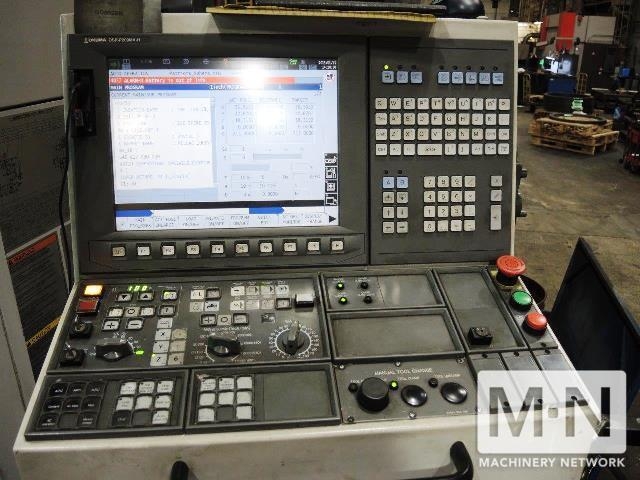

OSP-P200MA-HCNC CONTROLLER

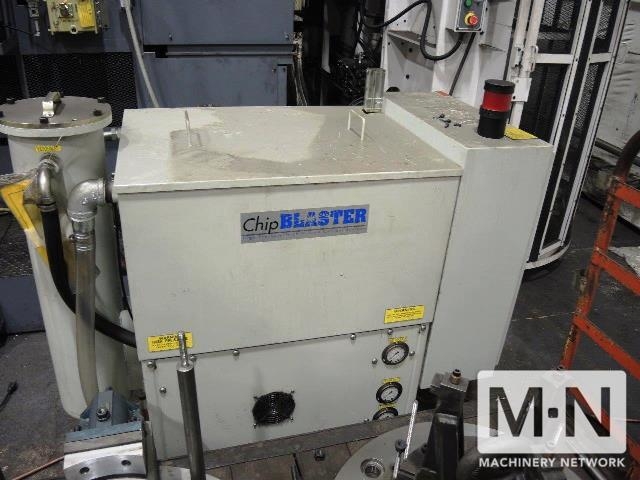

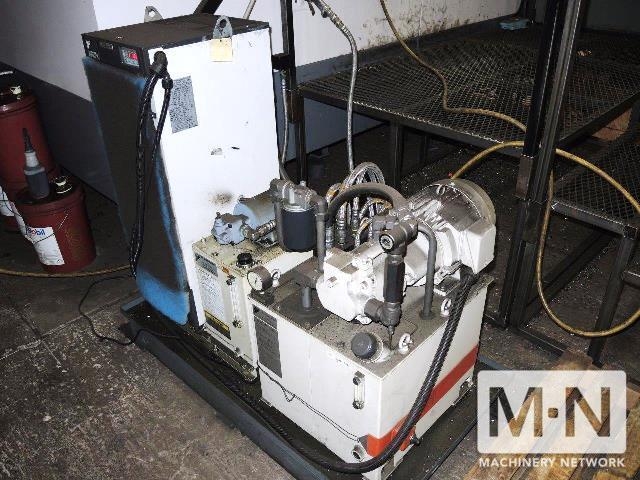

HP THRU SPINDLE COOLANT

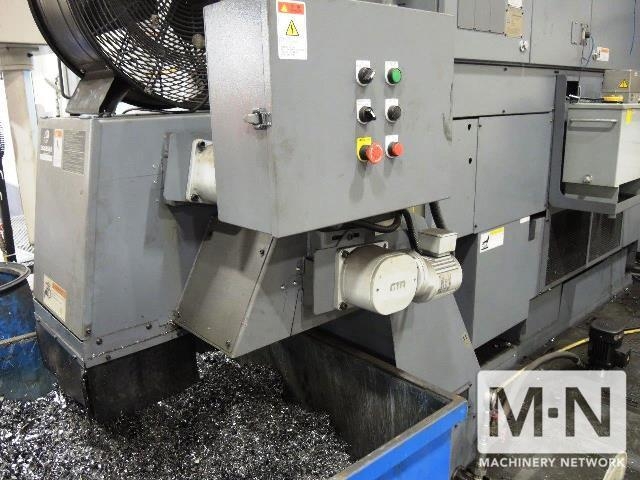

CHIP CONVEYOR WITH AUGER FEED

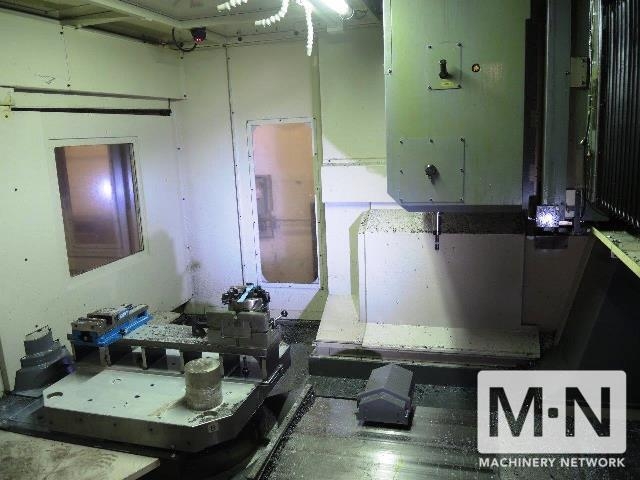

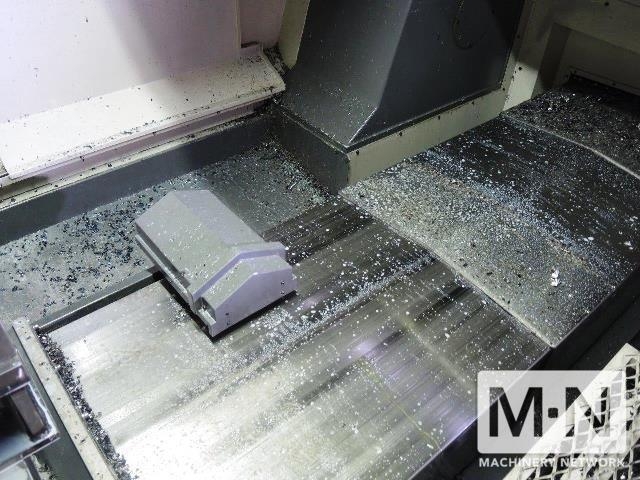

FULL CONTOURING PALLETS
NEW 2011 **1700 HOURS**
SPECIFICATIONS:
TRAVELS:
X-AXIS:.........................................72.83”
Y-AXIS:.........................................39.37”
Z-AXIS:.........................................51.18”
SPINDLE NOSE TO PALLET TOP (SPINDLE VERT.):......-3.94” TO 35.43”
SPINDLE CENTER TO PALLET CENTER (SPINDLE VERT.):.-22.83” TO 50”
SPINDLE CENTER TO PALLET TOP (SPINDLE HORIZ.):...5.91” TO 45.28”
SPINDLE NOSE TO PALLET CENTER (SPINDLE HORIZ.):.-32.68” TO 40.16”
MAX WORK DIMENSIONS:.............................39.37” X 39.37”
MAX LOAD CAPACITY:...............................4,400 LBS
INDEXING ANGLE (ANY NC ORIENTATION):.............0.001°
FLOOR TO PALLET TOP:.............................50.79”
SPINDLE SPEED MIN/MAX:...........................6,000 RPM
SPINDLE TAPER: ...........................BIG+ CT-50
SPINDLE SWIVEL ANGLE:............................150°
MINIMUM SPINDLE INDEXING INPUT:..................0.001°
RAPID TRAVERSE RATE:
X/Y: ............................................945 IPM
Z: ..............................................472 IPM
RAPID TRAVERSE RATE DEG/MIN: B/C:................4
MAXIMUM CUTTING FEED RATE: X/Y/Z:................10,000IPM
MAXIMUM CUTTING FEED RATE B/C AXIS:..............1,080 IPM
SPINDLE HP:......................................30/25 (30 MIN/CONT)
SPINDLE SWIVEL SERVO MOTOR:......................4 HP
TABLE INDEXING SERVE MOTOR:......................9.3 HP
TOOL SHANK:...................................BT-50 BIG +
TOOL CAPACITY:...................................120
MAX. TOOL DIAMETER (W/ ADJACENT TOOL):...........4,72
MAX. TOOL DIAMETER (W/O ADJACENT TOOL):..........9.45
MAX TOOL LENGTH:.................................19.7”
MAX TOOL WEIGHT:.................................25 LBS
TIME NEEDED FOR TOOL CHANGE (TOOL TO TOOL):......9 SEC.
APC TYPE:...................................2-PALLET ROTARY SHUTTLE
AUTOMATIC PALLET CHANGER TIME: ..................30 SECONDS
EFFECTIVE WIDTH BETWEEN COLUMNS:.................49.21
SYSTEM DIMENSIONS:.........................204.33” X 279.53” X 166.30”
SYSTEM WEIGHT:...................................53,000 LBS
POWER CAPACITY:..................................60 KVA
EQUIPPED WITH:
OSP-P200MA-HCNC CONTROLLER
HP THRU SPINDLE COOLANT
CHIP CONVEYOR WITH AUGER FEED
FULL CONTOURING PALLETS
