SECO SECO/WARWICK
Type:
FURNACES, HEAT TREATING
Manufacturer:
SECO
Model:
SECO/WARWICK
Condition:
Not Specified
Year:
1996
Stock #:
34348
Status:
Sold
Description:
1200 Deg, 48"x48"x48" cap
Location:
Ohio, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

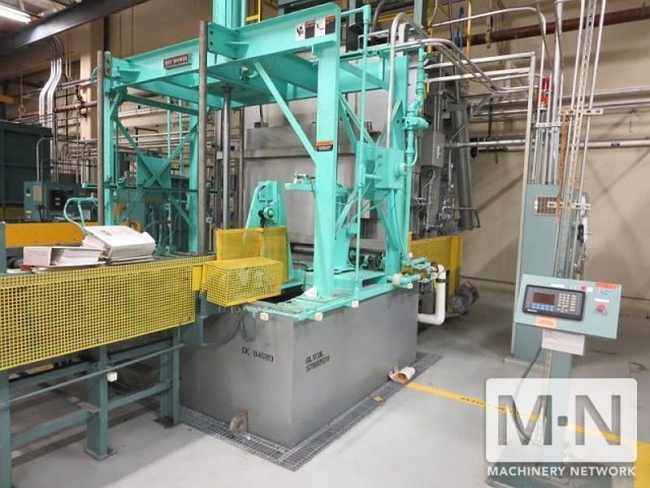

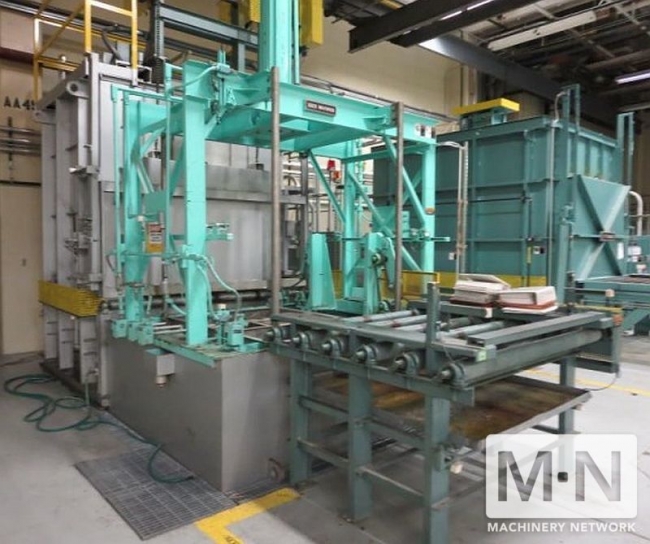

(1) Used Seco Warwick solution Annealing Furnace with Powered Roller Hearth
S/N 17496A
Specifications:
Maximum temperature ............................ 1,200 deg F
Working Dimensions .............................. 48" W x 48" H x 48" L
Load Table Dimensions ......................... 66” W x 48” H x 78" L
Quench Tank Dimensions ...................... 121"W x 84"D x 84" L
Overall Dimensions ................................. 121" W x 84"D x 84"L (less fan & door frame)
Power ......................................................70 KVA, 460 V, 3 Ph, 60 HZ, 198 KW
Re-Circulation Fan ................................ 15 HP, 23,300 CFM @ 2” WC
Thermocouples .......................................TWO (2) “K” TYPE
Heat: Electric, (6) Bayonet type NiChrome ribbon heating elements suspended from roof, hanging vertically

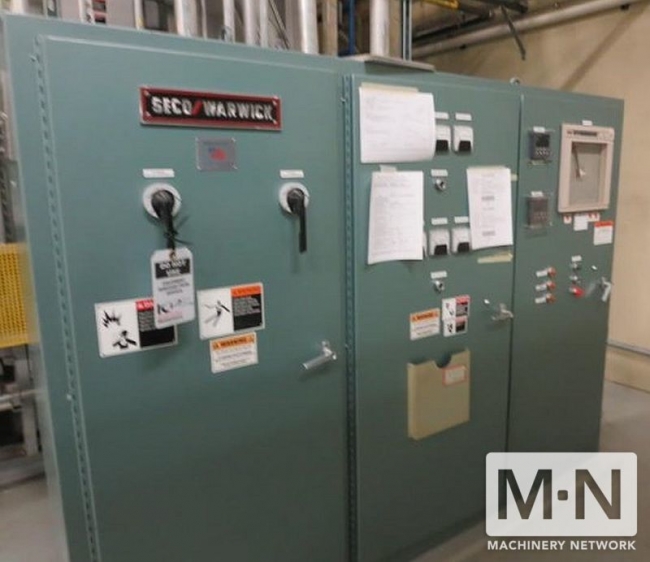

Controls: (1) Allen bradley SLC-5/03 Programmable Controller
S/N 17496A
Specifications:
Maximum temperature ............................ 1,200 deg F
Working Dimensions .............................. 48" W x 48" H x 48" L
Load Table Dimensions ......................... 66” W x 48” H x 78" L
Quench Tank Dimensions ...................... 121"W x 84"D x 84" L
Overall Dimensions ................................. 121" W x 84"D x 84"L (less fan & door frame)
Power ......................................................70 KVA, 460 V, 3 Ph, 60 HZ, 198 KW
Re-Circulation Fan ................................ 15 HP, 23,300 CFM @ 2” WC
Thermocouples .......................................TWO (2) “K” TYPE
Heat: Electric, (6) Bayonet type NiChrome ribbon heating elements suspended from roof, hanging vertically
Controls: (1) Allen bradley SLC-5/03 Programmable Controller
