HAAS ST-40

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

HAAS

Model:

ST-40

Condition:

Not Specified

Year:

2014

Stock #:

34267

Status:

Sold

Description:

BIG BORE, 18" SELF CONTAINED CHUCK

Location:

Virginia, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

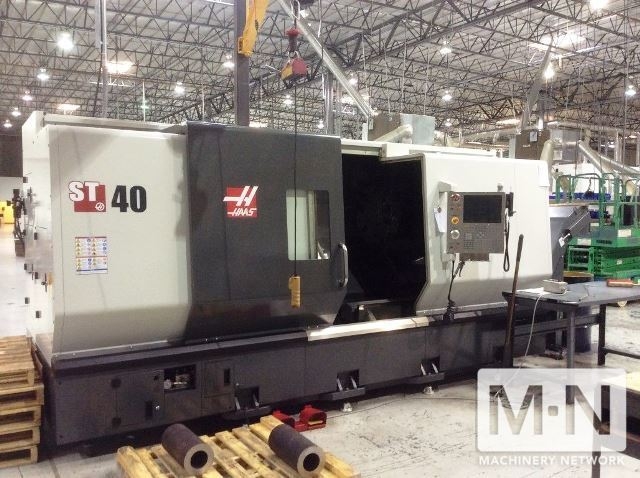

(1) HAAS ST40 WITH 7.0" BIG BORE CNC LATHE W/ LIVE TOOLING
NEW 2014

SPECIFICATIONS:
TURNING DIAMETER.................25.500"
TURNING LENGTH...................44.00"
MAXIMUM SWING....................34.500"

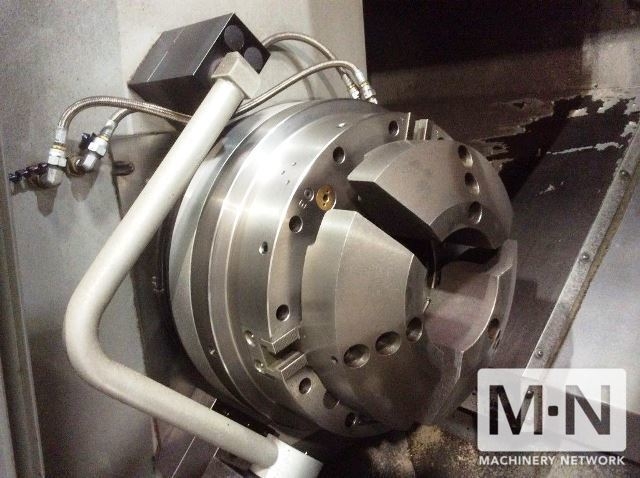

CHUCK DIAMETER...................18.00" (SELF CONTAINED AIR-CHUCK)
BIG BORE OPTION..................7.0"
SPINDLE NOSE....................A2-11
RPM..............................1,400
HORSE POWER.....................40
GEAR BOX.........................2 SPEED
X AXIS TRAVEL....................17"
Z AXIS TRAVEL....................44"
RAPIDS...........................710 IPM

EQUIPPED WITH:

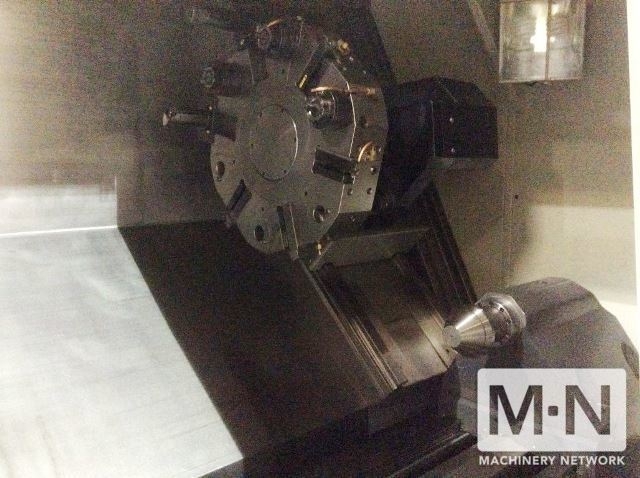

HYBRID BOT/VDI 12 STATIONS 6 VDI40+6BOT
VDI TOOL HOLDER KIT
HIGH TORQUE LIVE TOOLING WITH C AXIS
PROGRAMMABLE SERVO TAILSTOCK, MT5
HIGH PRESSURE COOLANT SYSTEM 300 PSI
AUTOMATIC TOOL SETTER
BELT TYPE CHIP CONVEYOR
AXIAL DRIVEN TOOL HOLDER, ER-32
RADIAL DRIVEN TOOL HOLDER, ER-32
USB PORT
COLOR REMOTE JOG HANDLE
RIGID TAPPING
MEMORY LOCK KEY SWITCH
15" COLOR LCD MONITOR
TOOL CART
1 BOLT ON 2.5" BORING BAR HOLDER

LOW LOW HOURS-CALL TO INSPECT
NEW REPLACEMENT COST $256,000
