KITAMURA MYCENTER MYCENTER 7X
Type:
Vertical Machining Centers
Manufacturer:
KITAMURA MYCENTER
Model:
MYCENTER 7X
Condition:
Not Specified
Year:
2002
Stock #:
33958
Status:
Sold
Description:
KITAMURA MYCENTER 7X 4-AXIS VMC FANUC 16iM, 60"x25"x27", CAT 50, 5K RPM, 16" 4TH AXIS ROT. TABLE, CTS, RIGID TAPPING
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

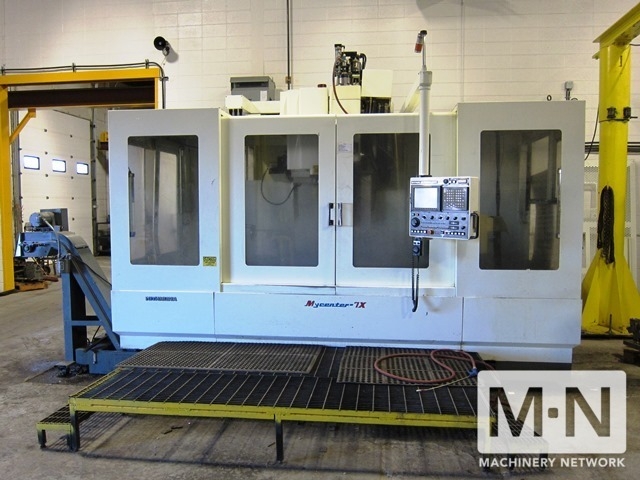

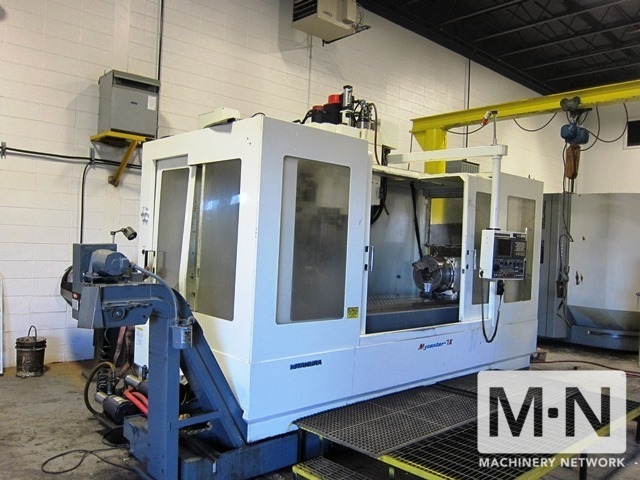

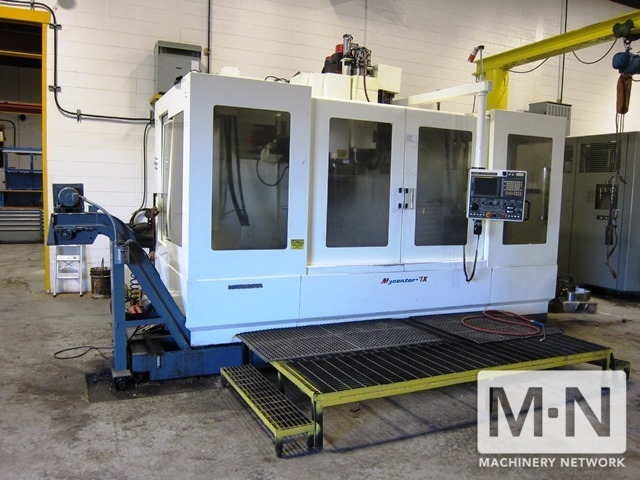

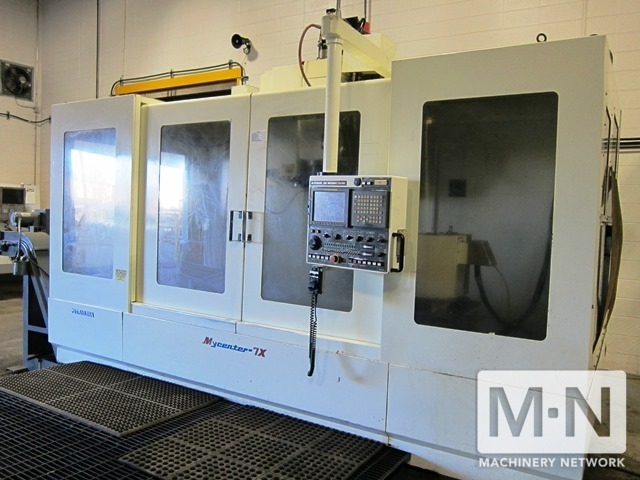

(1) USED KITAMURA MYCENTER 7X 4-AXIS VERTICAL MACHINING CENTER
NEW 2002
SPECIFICATIONS:
TABLE SIZE ........................25.6" X 66.9"
TABLE TRAVELS
X - AXIS ..........................60.2"
Y - AXIS ..........................25.6"
Z - AXIS ..........................27"
SPINDLE NOSE TO TABLE TOP .........7.8"-34.9"
COLUMN TO TABLE CENTER ............12.8"-38.4"
RAPID TRAVERSE RATES ..............944 X,Y IPM
..............878 Z IPM
CUTTING FEED RATES ................04 - 590 IPM
SPINDLE SPEED .....................5,000 RPM
SPINDLE GEAR RANGES ...............3
SPINDLE TAPER ................CAT #50

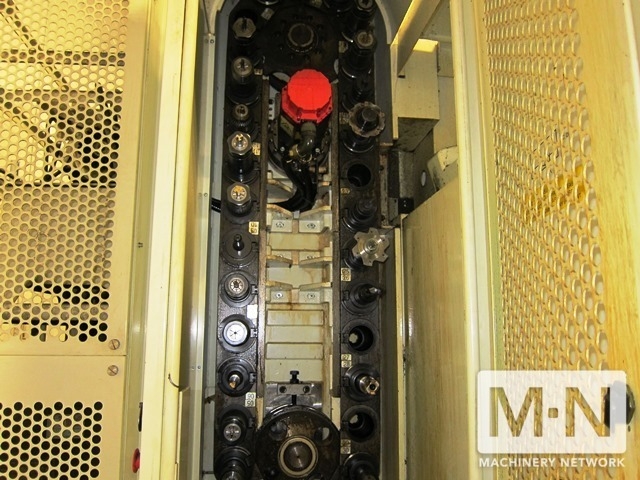

TOOL MAGAZINE .....................30 ATC
TOOL CHANGE TIME (TOOL TO TOOL)....2.5 SECONDS
MAX TOOL WEIGHT ..................44.1 LBS.
MAX TOOL SIZE DIA. ................4.3"/6.7"
MAX TOOL LENGTH ...................15.7"
MAIN MOTOR ........................30 HP
MACHINE WEIGHT ....................29,988 LbS.
EQUIPPED WITH:

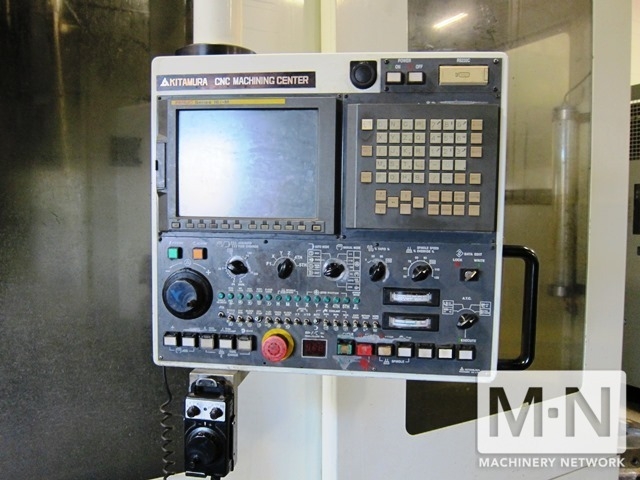

FANUC 16IM CNC CONTROL

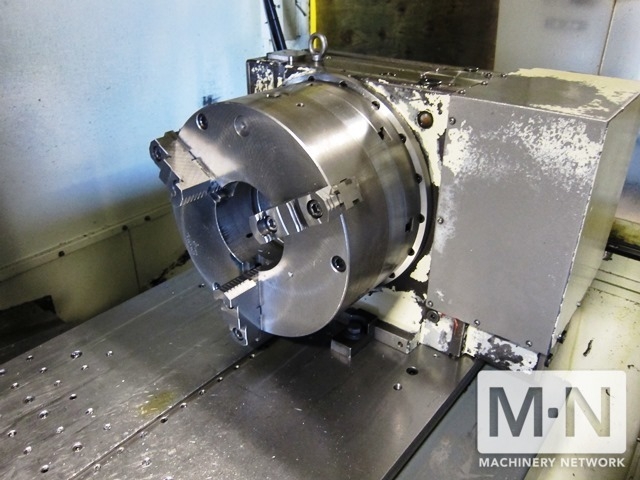

16" 4TH AXIS ROTARY TABLE W/ 4" BORE
COOLANT THRU THE SPINDLE
SPINDLE ORIENTATION
SPINDLE LOAD METER
SPINDLE SPEED METER
BOX WAY DESIGN
FULLY SUPPORTED X,Y TABLE TRAVELS
Y-AXIS (4) HARDENED BOX WAY CONFIGURATION
RIGID TAPPING
FULL ENCLOSURES
ALL AVAILABLE MANUALS
NEW 2002
SPECIFICATIONS:
TABLE SIZE ........................25.6" X 66.9"
TABLE TRAVELS
X - AXIS ..........................60.2"
Y - AXIS ..........................25.6"
Z - AXIS ..........................27"
SPINDLE NOSE TO TABLE TOP .........7.8"-34.9"
COLUMN TO TABLE CENTER ............12.8"-38.4"
RAPID TRAVERSE RATES ..............944 X,Y IPM
..............878 Z IPM
CUTTING FEED RATES ................04 - 590 IPM
SPINDLE SPEED .....................5,000 RPM
SPINDLE GEAR RANGES ...............3
SPINDLE TAPER ................CAT #50
TOOL MAGAZINE .....................30 ATC
TOOL CHANGE TIME (TOOL TO TOOL)....2.5 SECONDS
MAX TOOL WEIGHT ..................44.1 LBS.
MAX TOOL SIZE DIA. ................4.3"/6.7"
MAX TOOL LENGTH ...................15.7"
MAIN MOTOR ........................30 HP
MACHINE WEIGHT ....................29,988 LbS.
EQUIPPED WITH:
FANUC 16IM CNC CONTROL
16" 4TH AXIS ROTARY TABLE W/ 4" BORE
COOLANT THRU THE SPINDLE
SPINDLE ORIENTATION
SPINDLE LOAD METER
SPINDLE SPEED METER
BOX WAY DESIGN
FULLY SUPPORTED X,Y TABLE TRAVELS
Y-AXIS (4) HARDENED BOX WAY CONFIGURATION
RIGID TAPPING
FULL ENCLOSURES
ALL AVAILABLE MANUALS
