AWEA SP-4016
Type:
Vertical Machining Centers
Manufacturer:
AWEA
Model:
SP-4016
Condition:
Not Specified
Year:
2001
Stock #:
33916
Status:
Sold
Description:

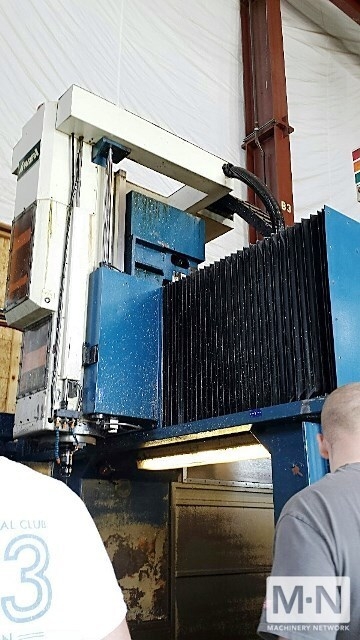

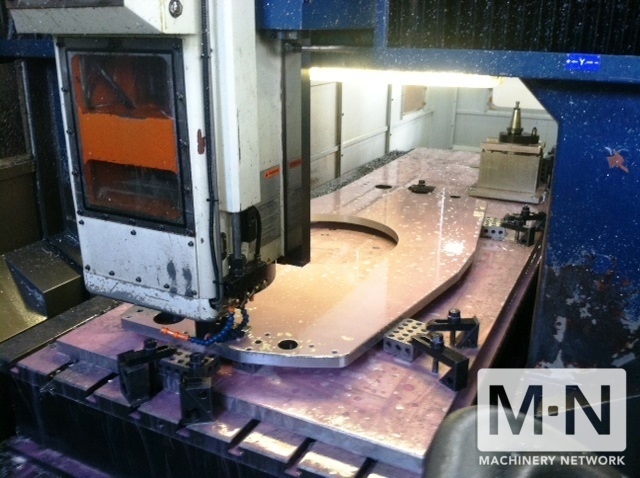

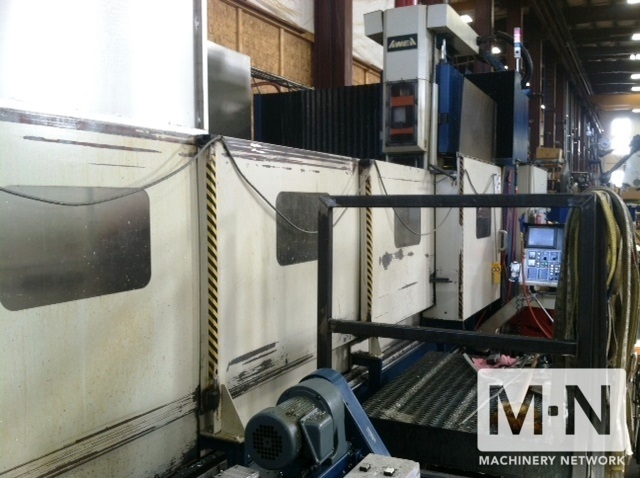

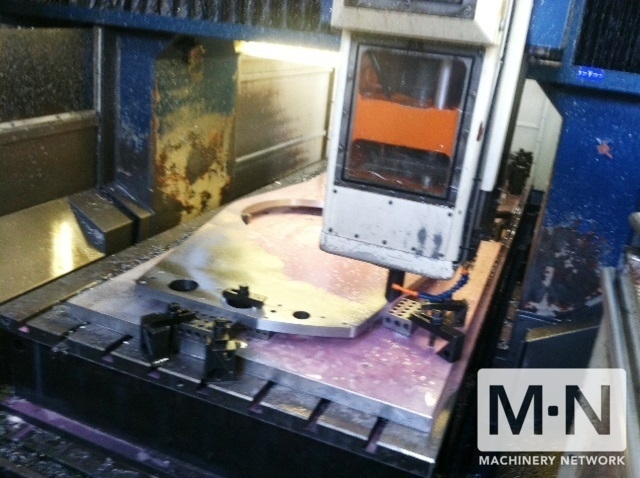

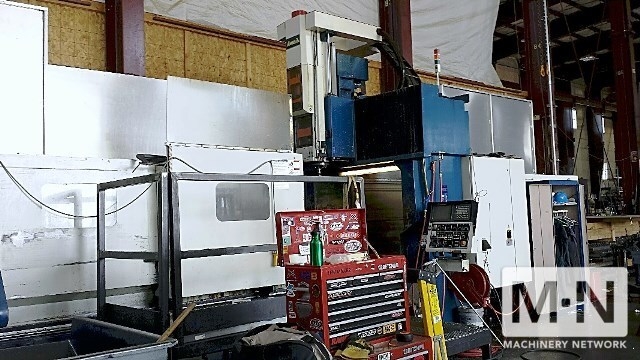

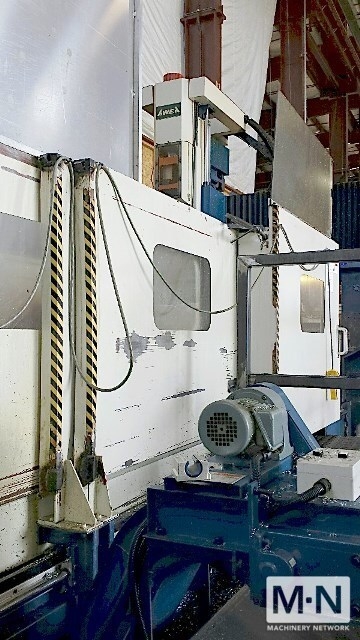

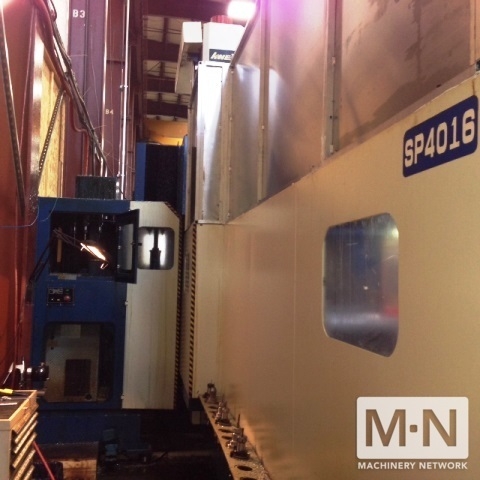

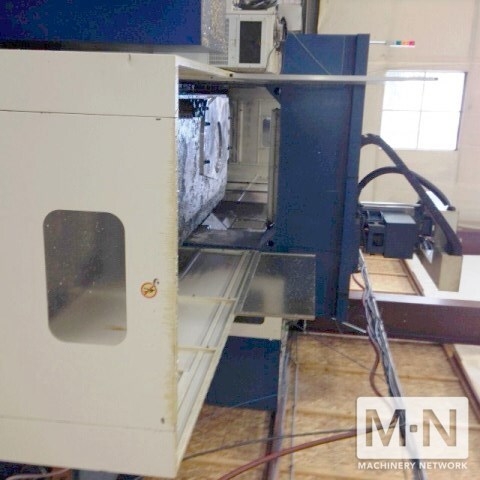

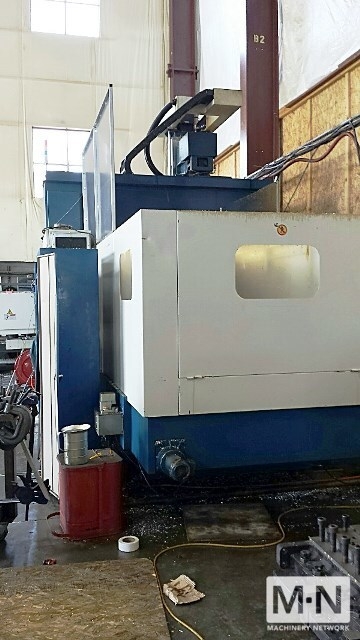

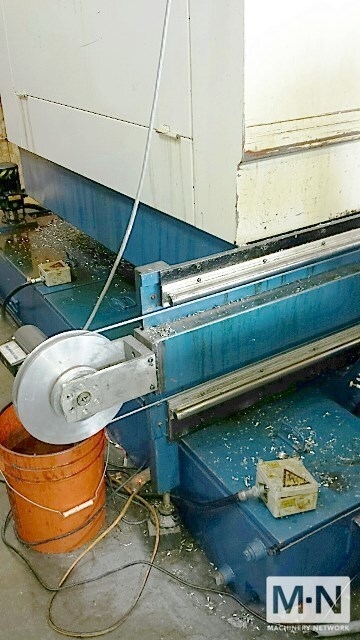

AWEA SP-4016 CNC VMC
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

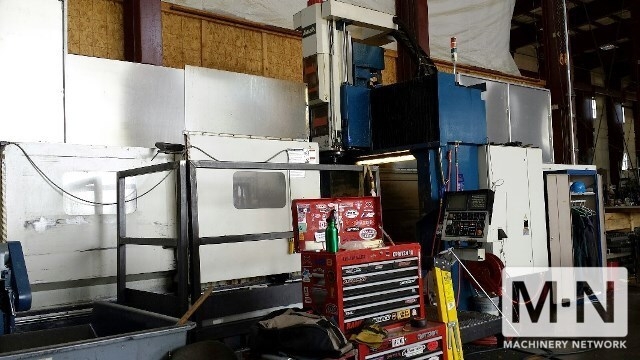

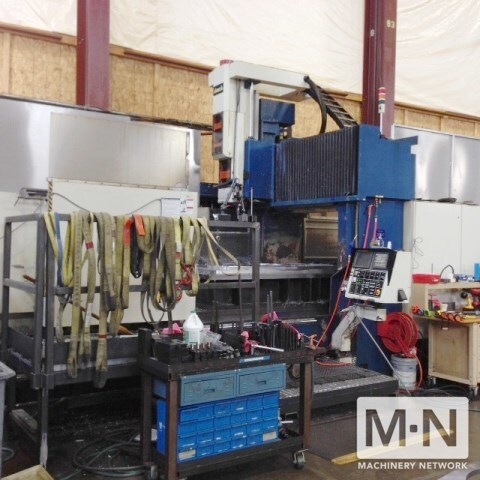

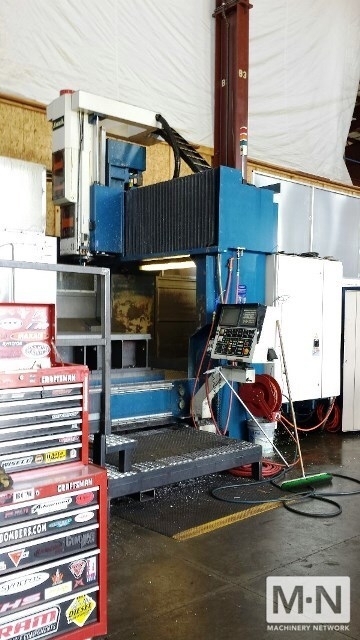

(1) USED AWEA SP 4016 CNC VERTICAL MACHINING CENTER
NEW 2001
SPECIFICATIONS:

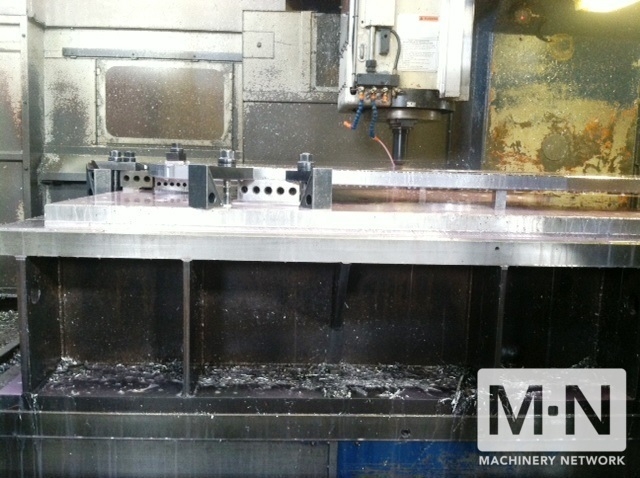

TABLE SIZE...............................168" X 55.1"
TABLE TRAVEL
X - AXIS ................................165.5"
Y - AXIS ................................63"
Z - AXIS ................................30"
DISTANCE BETWEEN COLUMNS 66.9"
DISTANCE SPINDLE NOSE TO TABLE TOP ......9.4"-39.4"
TABLE LOAD CAPACITY .....................7700 LBS.
RAPID TRAVERSE RATES.....................787 IPM (X) 787 (Y)
.........................................590 Z, IPM
CUTTING FEED RATES.......................4-196.9 IPM

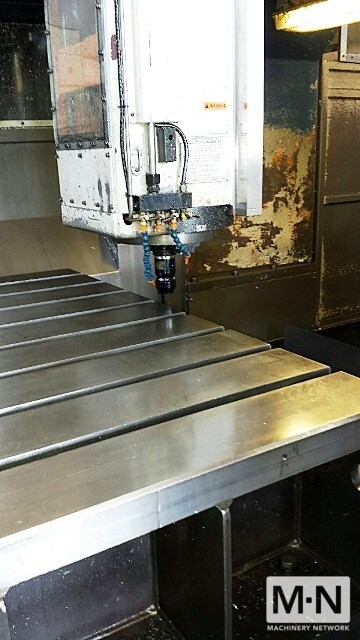

SPINDLE NOSE ......................CAT # 50
SPINDLE SPEED............................10-6000 RPM
SPINDLE GERA RANGES......................2
TOOL MAGAZINE............................32 ATC
MAX TOOL DIA. WHEN ADJACENT EMPTY........4.9"/8.5"
MAX TOOL LENGTH..........................13.8"
MAIN MOTOR...............................35 HP AC
MACHINE WEIGHT69,000 LBS.
EQUIPPED WITH:

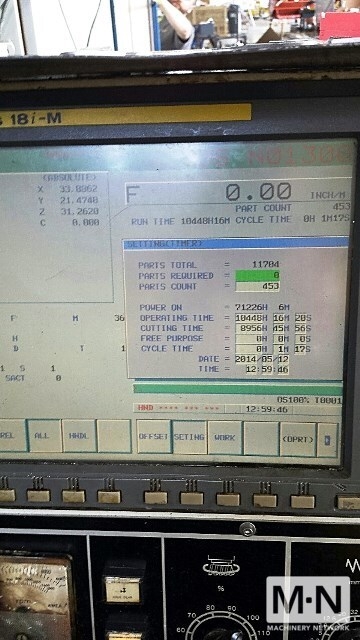

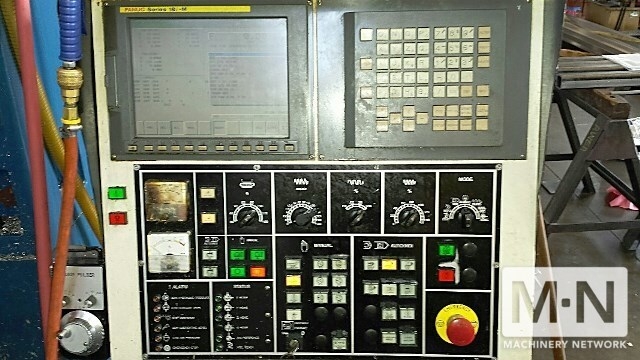

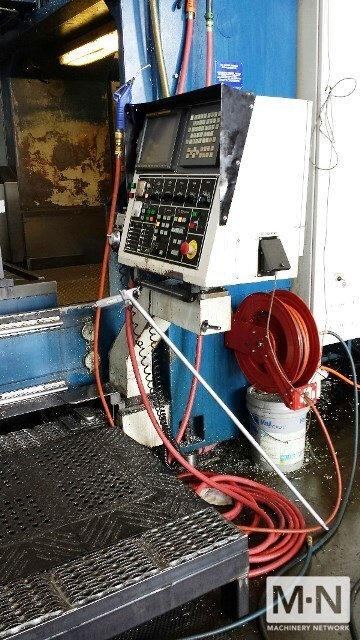

FANUC 16IM CNC CONTROL POWERED DOORS
RIGID TAPPING
TOOL LENGTH MEASUREMENT RENISHAW PART PROBE

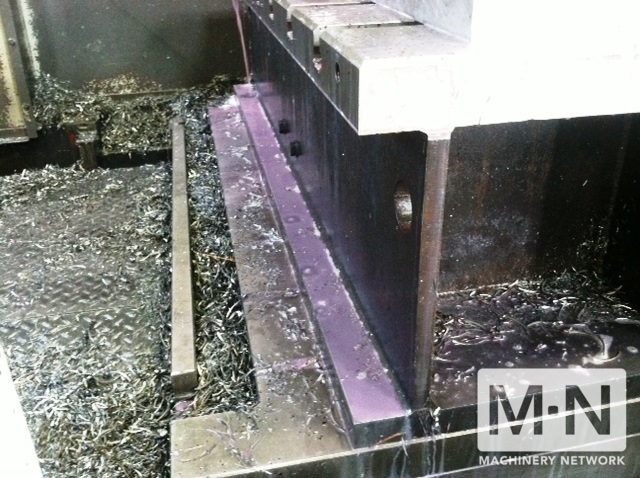

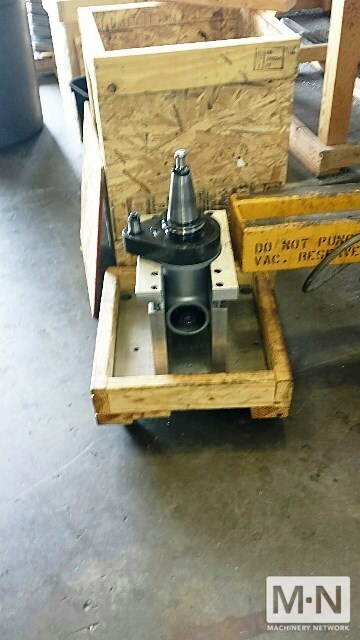

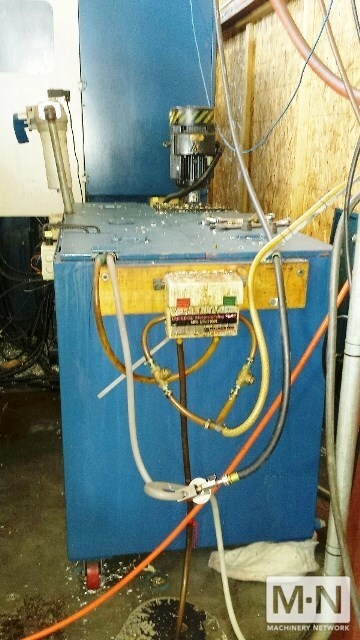

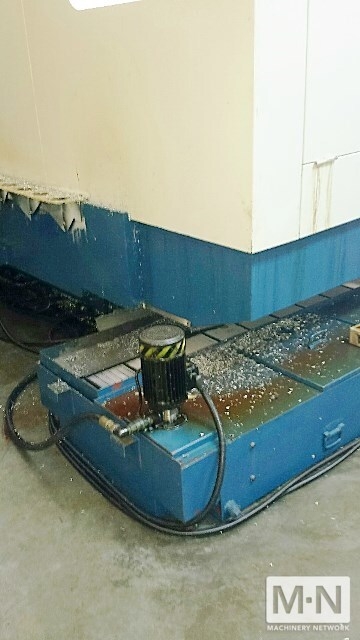

THRU SPINDLE COOLANT 1000 PSI COOLANT THRU SPINDLE SYSTEM FULL HIGH GUARDING RIGHT ANGLE HEAD TABLE RISER CHIP CONVEYOR ALL AVAILABLE MANUAL
NEW 2001
SPECIFICATIONS:
TABLE SIZE...............................168" X 55.1"
TABLE TRAVEL
X - AXIS ................................165.5"
Y - AXIS ................................63"
Z - AXIS ................................30"
DISTANCE BETWEEN COLUMNS 66.9"
DISTANCE SPINDLE NOSE TO TABLE TOP ......9.4"-39.4"
TABLE LOAD CAPACITY .....................7700 LBS.
RAPID TRAVERSE RATES.....................787 IPM (X) 787 (Y)
.........................................590 Z, IPM
CUTTING FEED RATES.......................4-196.9 IPM
SPINDLE NOSE ......................CAT # 50
SPINDLE SPEED............................10-6000 RPM
SPINDLE GERA RANGES......................2
TOOL MAGAZINE............................32 ATC
MAX TOOL DIA. WHEN ADJACENT EMPTY........4.9"/8.5"
MAX TOOL LENGTH..........................13.8"
MAIN MOTOR...............................35 HP AC
MACHINE WEIGHT69,000 LBS.
EQUIPPED WITH:
FANUC 16IM CNC CONTROL POWERED DOORS
RIGID TAPPING
TOOL LENGTH MEASUREMENT RENISHAW PART PROBE
THRU SPINDLE COOLANT 1000 PSI COOLANT THRU SPINDLE SYSTEM FULL HIGH GUARDING RIGHT ANGLE HEAD TABLE RISER CHIP CONVEYOR ALL AVAILABLE MANUAL
