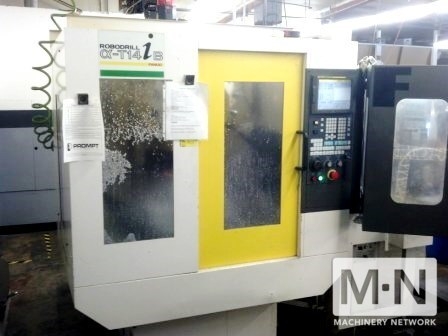

FANUC ROBODRILL T14IA
Type:
Vertical Machining Centers
Manufacturer:
FANUC
Model:
ROBODRILL T14IA
Condition:
Not Specified
Year:
2000
Stock #:
33382
Status:
Sold
Description:

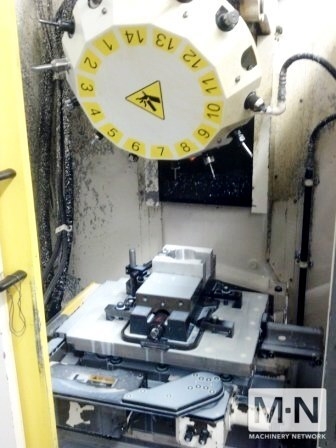

FANUC ROBODRILL T14iA, FANUC 16iM CONTROL, 19"X14"X11", 15K RPM, 14 POSITION TURRET
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED FANUC ROBODRILL T14IA W/ APC DRILL/TAPPING MACHINE NEW: 2000
SPECIFICATIONS:
TRAVEL: X-AXIS TRAVEL: .................. 19.7" Y-AXIS TRAVEL: .................. 14.96" Z-AXIS TRAVEL: .................. 11.81" DIST. TABLE TO SPINDLE: ........ 5.91" TO 17.72" DIST. COLUMN TO CENTER LINE: .... 14.96" TABLE: AREA: ........................... 25.6" X 14.9" LOAD CAPACITY: .................. 440 LBS (UNIFORM LOAD) SPINDLE: SPINDLE SPEED RANGE: ............ 10 TO 15,000 MIN-1 TYPE OF SPINDLE TAPER HOLE: ..... 7/24 TAPER NO. 30 FEEDRATE: RAPID TRAVERSE FEEDRATE: ........ 1,890 IN/MIN (X,Y,Z) CUTTING FEEDRATE: ............... 0.039" - 590.6"/MIN TURRET: TOOL CHANGE SYSTEM: ............. TURRET TYPE TYPE OF TOOL SHANK: ............. MAS BT30 TYPE OF RETENTION KNOB: ......... MAS P30T-1 (45 DEG) TOOL STORAGE CAPACITY: .......... 14 METHOD OF TOOL SELECTION: ....... RANDOM SHORTEST PATH TOOL CHANGING TIME: APPROX. ..... 1 SEC MOTOR: SPINDLE DRIVE MOTOR: ............ FANUC AC SPINDLE MOTOR MOTOR HP......................... 7.38 HP (10 MIN RATING) ................................. 4.96 HP (CONTINUOUS RATING) ELECTRICS: ...................... 220 VOLTS, 3 PH, 60 CYC MACHINE DIMENSIONS: ............. 62" X 75" X 88" WEIGHT .......................... 3750 LBS
EQUIPPED WITH: FANUC 16IM CONTROL PALLET CHANGER RIGID TAPPING AI CONTOUR G5.1 OPTION COOLANT TANK & PUMP
SPECIFICATIONS:
TRAVEL: X-AXIS TRAVEL: .................. 19.7" Y-AXIS TRAVEL: .................. 14.96" Z-AXIS TRAVEL: .................. 11.81" DIST. TABLE TO SPINDLE: ........ 5.91" TO 17.72" DIST. COLUMN TO CENTER LINE: .... 14.96" TABLE: AREA: ........................... 25.6" X 14.9" LOAD CAPACITY: .................. 440 LBS (UNIFORM LOAD) SPINDLE: SPINDLE SPEED RANGE: ............ 10 TO 15,000 MIN-1 TYPE OF SPINDLE TAPER HOLE: ..... 7/24 TAPER NO. 30 FEEDRATE: RAPID TRAVERSE FEEDRATE: ........ 1,890 IN/MIN (X,Y,Z) CUTTING FEEDRATE: ............... 0.039" - 590.6"/MIN TURRET: TOOL CHANGE SYSTEM: ............. TURRET TYPE TYPE OF TOOL SHANK: ............. MAS BT30 TYPE OF RETENTION KNOB: ......... MAS P30T-1 (45 DEG) TOOL STORAGE CAPACITY: .......... 14 METHOD OF TOOL SELECTION: ....... RANDOM SHORTEST PATH TOOL CHANGING TIME: APPROX. ..... 1 SEC MOTOR: SPINDLE DRIVE MOTOR: ............ FANUC AC SPINDLE MOTOR MOTOR HP......................... 7.38 HP (10 MIN RATING) ................................. 4.96 HP (CONTINUOUS RATING) ELECTRICS: ...................... 220 VOLTS, 3 PH, 60 CYC MACHINE DIMENSIONS: ............. 62" X 75" X 88" WEIGHT .......................... 3750 LBS
EQUIPPED WITH: FANUC 16IM CONTROL PALLET CHANGER RIGID TAPPING AI CONTOUR G5.1 OPTION COOLANT TANK & PUMP
