TRUMPF L4050
Type:
LASERS
Manufacturer:
TRUMPF
Model:
L4050
Condition:
Not Specified
Year:
2004
Stock #:
33237
Status:
Sold
Description:
5000 WATT, 80" X 160"
Location:
Virginia, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

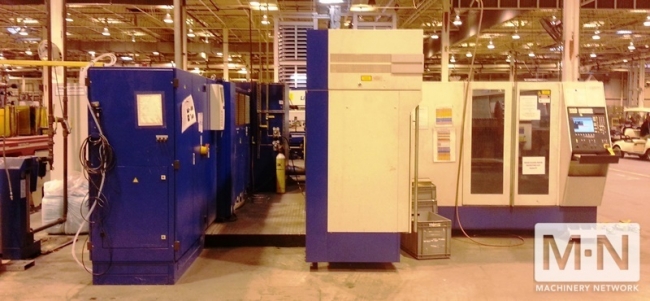

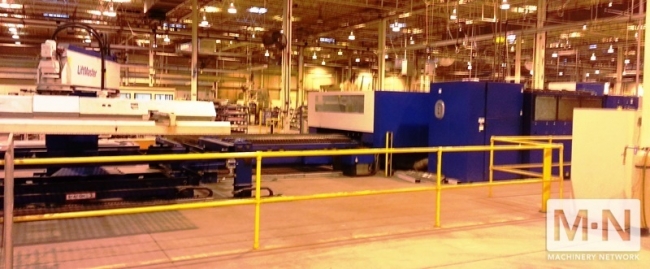

(1) 5,000 WATT TRUMPF TRUMATIC L4050 LASER CUTTER NEW 2004
SPECIFICATIONS: CAPACITY: ...................................... 5,000 WATT SHEET SIZE: .................................... 80" X 160" X-AXIS TRAVEL: ................................. 160" Y-AXIS TRAVEL: ................................. 80" Z-AXIS TRAVEL: ................................. 4.5" MAX. WORKPIECE WEIGHT: ......................... 3968 LBS SHEET THICKNESS MAX. (M.S.): ................... 0.98" SHEET THICKNESS MAX. (ALUM): ................... 0.59" X/Y-AXIS POSITIONING SPEED: .................... 7874 IPM SIMULTANEOUS POSITIONING SPEED (X & Y-AXES): ... 11811 IPM
EQUIPPED WITH: SIEMENS SINUMERIK 840D CNC CONTROL W/TFT COLOR SCREEN TRUMPF TLF 6000TM BEAM RESONATOR LOADMASTER AUTOMATED LOAD/UNLOAD SYSTEM HI-LAS HIGH PRESSURE CUTTING AUTOMATIC SHEET POSITION SENSING SYSTEM APC HEIGHT REGULATION AND PROCESS CONTROL PCS PROCESS CONTROL SYSTEM POSITIONING LASER DIODE PROGRAMMABLE CUTTING GAS SELECTION PRESSURE PROGRAMMABLE POWER CYCLES MICROWELD PMS PLASMA SENSOR SPRINTLAS FOR ALL SHEET THICKNESSES AUTOMATIC NOZZLE CLEANING LIGHT FITTINGS FOR WORK AREA SAFETY DEVICES TWO 2-1/2" & TWO 5" CUTTING HEADS
THE MACHINE HAS 41,500 LASER ON HOURS AND HAS BEEN PREPPED FOR SHIPMENT BY TRUMPF
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985 FOR FUTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
SPECIFICATIONS: CAPACITY: ...................................... 5,000 WATT SHEET SIZE: .................................... 80" X 160" X-AXIS TRAVEL: ................................. 160" Y-AXIS TRAVEL: ................................. 80" Z-AXIS TRAVEL: ................................. 4.5" MAX. WORKPIECE WEIGHT: ......................... 3968 LBS SHEET THICKNESS MAX. (M.S.): ................... 0.98" SHEET THICKNESS MAX. (ALUM): ................... 0.59" X/Y-AXIS POSITIONING SPEED: .................... 7874 IPM SIMULTANEOUS POSITIONING SPEED (X & Y-AXES): ... 11811 IPM
EQUIPPED WITH: SIEMENS SINUMERIK 840D CNC CONTROL W/TFT COLOR SCREEN TRUMPF TLF 6000TM BEAM RESONATOR LOADMASTER AUTOMATED LOAD/UNLOAD SYSTEM HI-LAS HIGH PRESSURE CUTTING AUTOMATIC SHEET POSITION SENSING SYSTEM APC HEIGHT REGULATION AND PROCESS CONTROL PCS PROCESS CONTROL SYSTEM POSITIONING LASER DIODE PROGRAMMABLE CUTTING GAS SELECTION PRESSURE PROGRAMMABLE POWER CYCLES MICROWELD PMS PLASMA SENSOR SPRINTLAS FOR ALL SHEET THICKNESSES AUTOMATIC NOZZLE CLEANING LIGHT FITTINGS FOR WORK AREA SAFETY DEVICES TWO 2-1/2" & TWO 5" CUTTING HEADS
THE MACHINE HAS 41,500 LASER ON HOURS AND HAS BEEN PREPPED FOR SHIPMENT BY TRUMPF
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985 FOR FUTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
