HAAS EC-500
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
HAAS
Model:
EC-500
Condition:
Not Specified
Stock #:
33092
Status:
Sold
Description:
HAAS EC-500,(2) 19.69"x19.69",
Location:
Michigan, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

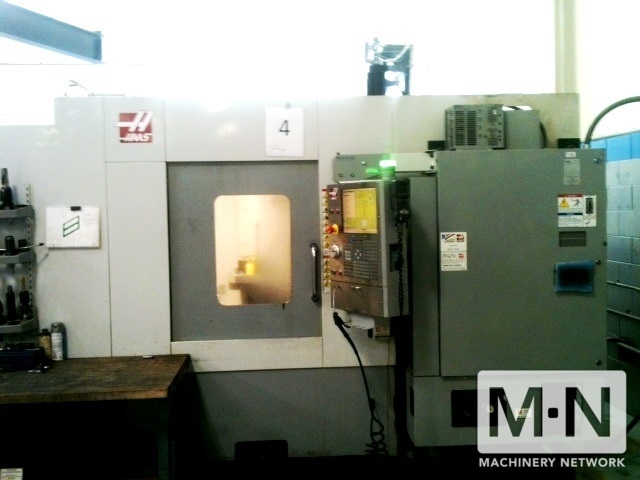

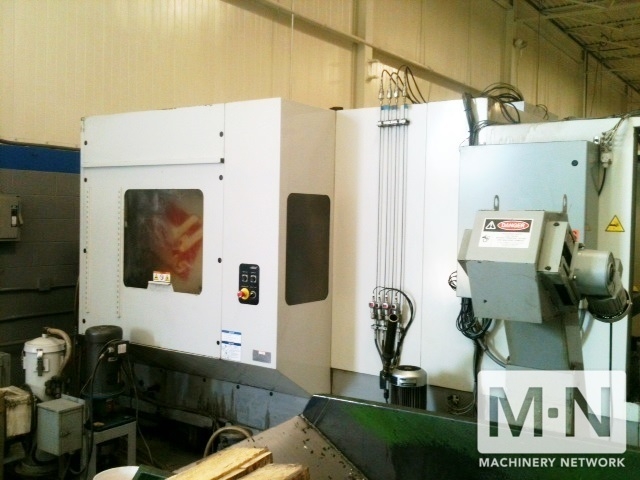

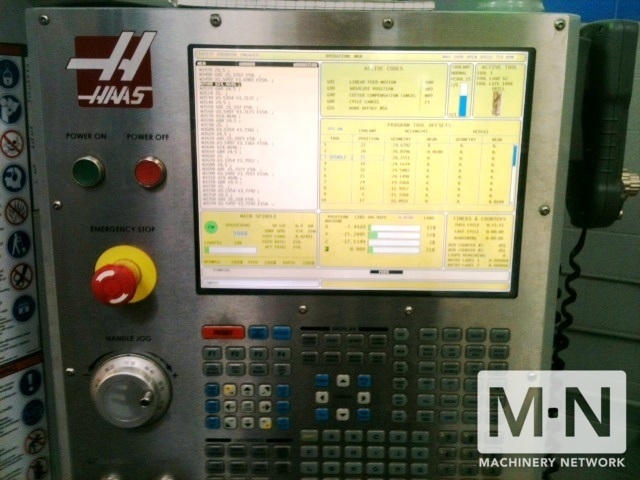

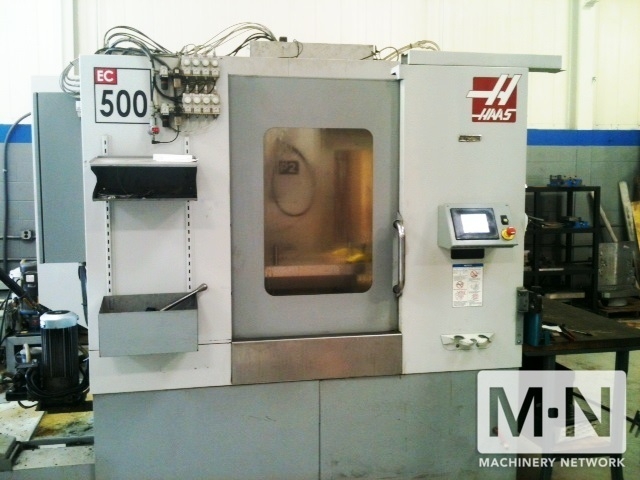

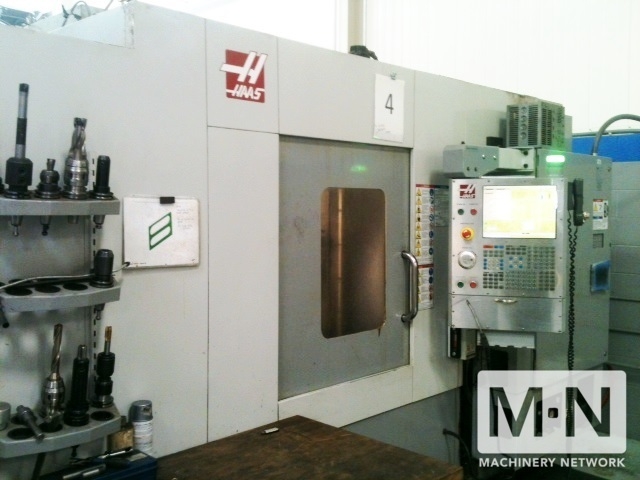

(1) USED HAAS EC-500 CNC HORIZONTAL MACHINING CENTER
NEW: 2009
Specifications:
Pallet Size / Number of Pallets ........ 19.69" x 19.69"/2
Table Load Capacity .................... 1,000 lbs
Pallet Incremental Movement ............ 001 Deg. Full 4th
X-Axis Travel .......................... 32"
Y-Axis Travel .......................... 20"
Z-Axis Travel .......................... 28"
Spindle Taper .......................... CT 40
Spindle Speed .......................... 12,000 RPM
Spindle Motor 30 Min. / Cont ........... 20 HP
Tool Magazine Capacity ................. 40+1 Pos. ATC
Tool Change Time ....................... 2.8 sec/1.6 sec
Rapid Traverse Rates ................... 1,000 IPM
Cutting Feedrates ...................... 500 IPM
Machine Dimensions LxWxH ............... 104" x 148" x 156"
Machine Weight ......................... 24,000 LBS
Equipped With:
-Chip Conveyor
-Programmable Coolant
-3.5” Floppy Disk Drive
-12,000 RPM Spindle
-16mb Memory
-Full 4th Axis
-1000 PSI Thru Spindle Coolant
-40 Position Automatic Toolchanger
-Remote Jog Handle
-Quick Code Programming
-WIPS (wireless intuitive probing)
NEW: 2009
Specifications:
Pallet Size / Number of Pallets ........ 19.69" x 19.69"/2
Table Load Capacity .................... 1,000 lbs
Pallet Incremental Movement ............ 001 Deg. Full 4th
X-Axis Travel .......................... 32"
Y-Axis Travel .......................... 20"
Z-Axis Travel .......................... 28"
Spindle Taper .......................... CT 40
Spindle Speed .......................... 12,000 RPM
Spindle Motor 30 Min. / Cont ........... 20 HP
Tool Magazine Capacity ................. 40+1 Pos. ATC
Tool Change Time ....................... 2.8 sec/1.6 sec
Rapid Traverse Rates ................... 1,000 IPM
Cutting Feedrates ...................... 500 IPM
Machine Dimensions LxWxH ............... 104" x 148" x 156"
Machine Weight ......................... 24,000 LBS
Equipped With:
-Chip Conveyor
-Programmable Coolant
-3.5” Floppy Disk Drive
-12,000 RPM Spindle
-16mb Memory
-Full 4th Axis
-1000 PSI Thru Spindle Coolant
-40 Position Automatic Toolchanger
-Remote Jog Handle
-Quick Code Programming
-WIPS (wireless intuitive probing)
