HAAS VS-3
Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VS-3
Condition:
Not Specified
Year:
2006
Stock #:
32005
Status:
Sold
Description:
HAAS VS-3, 150"X50'X50", BT 50 TAPER, ,7.5K RPM, 30HP
Videos:
Location:
Oregon, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

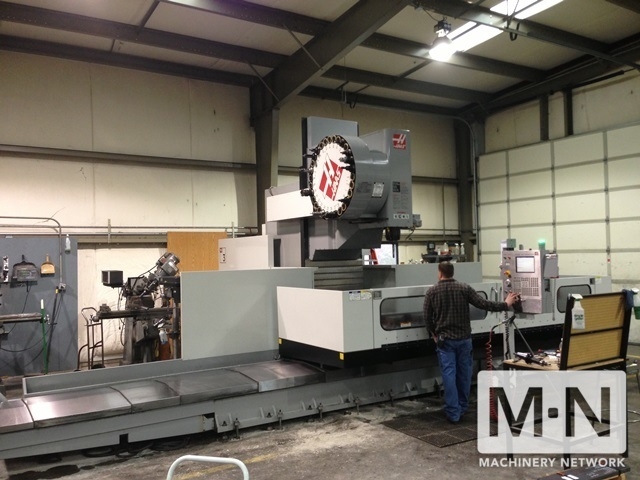

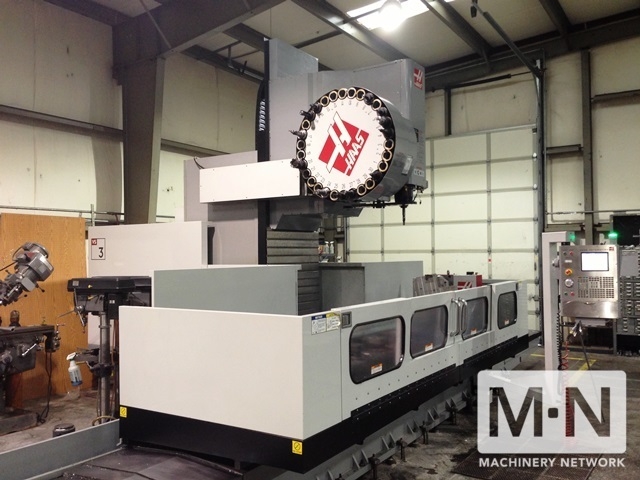

1) USED HAAS VS-3 CNC VERTICAL MACHINING CENTER
NEW 2006
Specifications:
X Axis........................150"
Y Axis........................50"
Z Axis........................50"

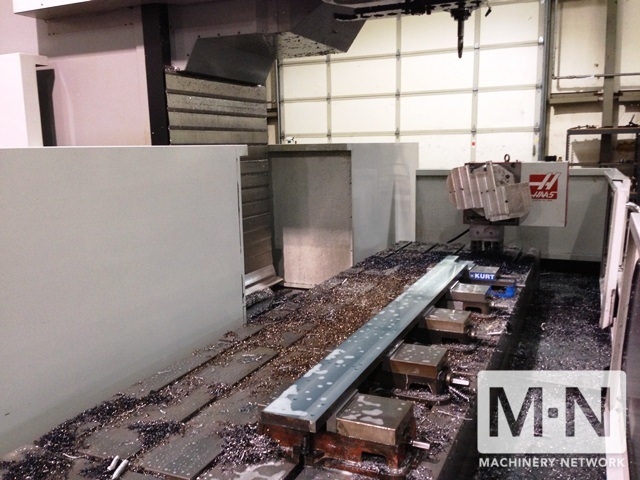

TABLE
Length........................146"
Width.........................40"
T-Slot Width..................0.866"
T-Slot Center Distance........7.87"
Max Weight on Table...........10000 lb
SPINDLE
Max Rating....................30 hp
Max Speed.....................7500 rpm
Max Torque....................450 ft-lb @ 500 rpm
Drive System..................2-speed Geared Head
Taper.........................BT 50
Bearing Lubrication...........Air/Oil Injection
Rapids on X...................500 in/min
Rapids on Y...................500 in/min
Rapids on Z...................710 in/min
Max Cutting...................500 in/min
AXIS MOTORS
Max Thrust X..................4,054 lb
Max Thrust Y..................5,600 lb
Max Thrust Z..................8400 lb
TOOL CHANGER
Type..........................SMTC
Capacity......................30+1
Max Tool Diameter.............10"
Max Tool Diameter (full)......4"
Max Tool Length ..............16"
Max Tool Weight...............30 lb
Tool-to-Tool (avg)............4.2 sec
Chip-to-Chip (avg)............6.3 sec
GENERAL
Air Required..................4 scfm, 100 psi
Coolant Capacity..............95 gal
Machine Weight................62000 lb
Equipped With:
High-Speed Machining with Look-Ahead
Hard Disk Drive & Ethernet Interface
4th Axis Drive
Approx (40) 50 Taper Holders
HOUR READ:
Servo 738
Motion 3308
Spindle 3044
NEW 2006
Specifications:
X Axis........................150"
Y Axis........................50"
Z Axis........................50"
TABLE
Length........................146"
Width.........................40"
T-Slot Width..................0.866"
T-Slot Center Distance........7.87"
Max Weight on Table...........10000 lb
SPINDLE
Max Rating....................30 hp
Max Speed.....................7500 rpm
Max Torque....................450 ft-lb @ 500 rpm
Drive System..................2-speed Geared Head
Taper.........................BT 50
Bearing Lubrication...........Air/Oil Injection
Rapids on X...................500 in/min
Rapids on Y...................500 in/min
Rapids on Z...................710 in/min
Max Cutting...................500 in/min
AXIS MOTORS
Max Thrust X..................4,054 lb
Max Thrust Y..................5,600 lb
Max Thrust Z..................8400 lb
TOOL CHANGER
Type..........................SMTC
Capacity......................30+1
Max Tool Diameter.............10"
Max Tool Diameter (full)......4"
Max Tool Length ..............16"
Max Tool Weight...............30 lb
Tool-to-Tool (avg)............4.2 sec
Chip-to-Chip (avg)............6.3 sec
GENERAL
Air Required..................4 scfm, 100 psi
Coolant Capacity..............95 gal
Machine Weight................62000 lb
Equipped With:
High-Speed Machining with Look-Ahead
Hard Disk Drive & Ethernet Interface
4th Axis Drive
Approx (40) 50 Taper Holders
HOUR READ:
Servo 738
Motion 3308
Spindle 3044
