HAAS VR-9

Type:

Vertical Machining Centers

Manufacturer:

HAAS

Model:

VR-9

Condition:

Not Specified

Year:

2006

Stock #:

31946

Status:

Sold

Description:

HAAS CTRL, 84"x40"x30", CAT 40,5-AXIS, 32 ATC, COOLANT THRU

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

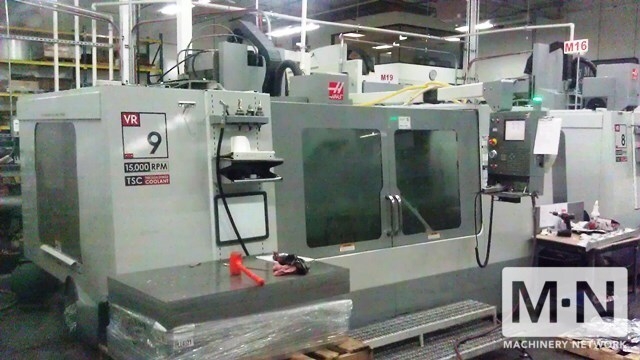

(1) USED HAAS VR-9 5-AXIS CNC VERTICAL MACHINING CENTER NEW 2006
SPECIFICATIONS: TRAVELS X-AXIS: ...................... 84" Y-AXIS: ...................... 40" Z-AXIS: ...................... 30" A&B-AXIS: .................... +/- 32 DEGREES SPINDLE MOTOR: ............... 30 HP SPINDLE SPEED: ............... 15000 RPM SPINDLE TAPER: ............... CAT 40 TOOLS: ....................... 32 ATC
FEEDRATES RAPID ON X AXIS .............. 540 IPM (13.7 M/MIN) RAPIDS ON Y, Z AXES .......... 600 IPM (15.2 M/MIN) RAPIDS ON A, B ............... 1900 DEG/MIN MAX CUTTING RATE X, Y, Z ..... 500 IPM (12.7 M/MIN) MAX CUTTING RATE A, B ........ 600 DEG/MIN ACCURACY X, Y, Z AXES: POSITIONING WITH SCALES .... 0.0003" (0.0076 MM) POSITIONING WITHOUT SCALES ... 0.0008" (0.0203 MM) REPEATABILITY WITH SCALES .... 0.0002" (0.0051 MM) REPEATABILITY W/O SCALES ..... 0.0004" (0.0102 MM) A, B AXES (STATIC CONDITIONS): POSITIONING .................. 45 ARC-SEC REPEATABILITY ................ 10 ARC-SEC

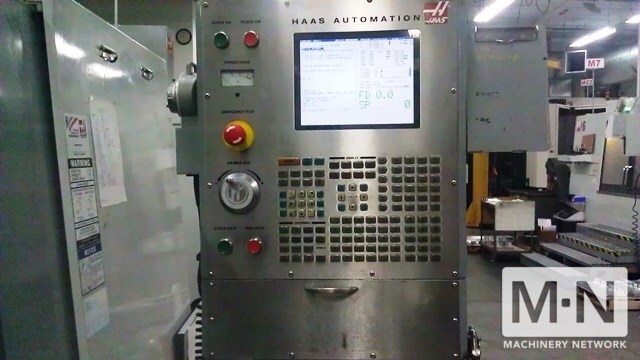

EQUIPPED WITH: HAAS 5-AXIS CNC CONTROL COOLANT THROUGH SPINDLE ETHERNET, HARD DRIVE, USB 16 MB MEMORY HIGH SPEED MACHINING MEMORY KEY LOCK PROGRAMMABLE COOLANT REMOTE JOG HANDLE RIGID TAP VISUAL QUICK CODE
