SHARP SV-2412S
Type:
Vertical Machining Centers
Manufacturer:
SHARP
Model:
SV-2412S
Condition:
Not Specified
Year:
2011
Stock #:
31893
Status:
Sold
Description:
Fanuc 0i-Mate MB CNC Control, 24"x12"x18" CAT40, 10,000 rpm
Location:
South Carolina, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

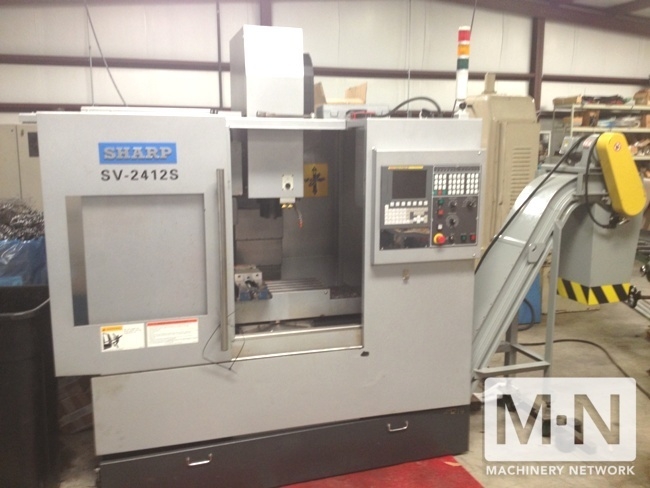

1) Used SHARP SV-2412S CNC Vertical Machining Center
New 2011
*1369 Run Hours * 1028 Cutting Hours*
Specifications:
X-Axis..............................24"
Y-Axis..............................12"
Z-Axis..............................18"
Table Size..........................27.5" x 12"
Spindle Speed.......................10000 RPM
Spindle Taper.......................BT 40
Spindle Nose to Table Top...........2.8" - 20.8"
Spindle Motor.......................15 / 10 HP
Tools...............................16
Table Load Capacity.................850 lbs.
Rapid Traverse Rates (X & Y / Z)....787 / 708 IPM
Max Tool Diameter...................3.9"
Max Tool Length.....................13"
Max Tool Weight.....................17 lbs.
Machine Dimensions (L x W x H)......73" x 79" x 92"
Machine Weight......................6600 lbs.
Equipped With:

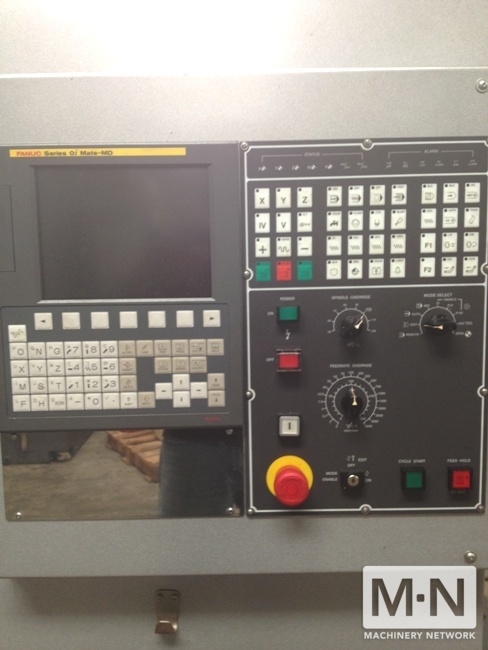

FANUC 0i-MATE MB CNC CONTROL
10.4" Color CRT
Tool Path Graphic Display
Flood Coolant System
Rigid Tapping
10000 RPM Spindle Speed
(16) Position Tool Changer
Chip Conveyor
Three Color Tower Light
Remote Manual Pulse Generator
15 HP Spindle Motor
Full Enclosure
Heavy Duty Box Way Construction
1369 Run Hours
1028 Cutting Hours
New 2011
*1369 Run Hours * 1028 Cutting Hours*
Specifications:
X-Axis..............................24"
Y-Axis..............................12"
Z-Axis..............................18"
Table Size..........................27.5" x 12"
Spindle Speed.......................10000 RPM
Spindle Taper.......................BT 40
Spindle Nose to Table Top...........2.8" - 20.8"
Spindle Motor.......................15 / 10 HP
Tools...............................16
Table Load Capacity.................850 lbs.
Rapid Traverse Rates (X & Y / Z)....787 / 708 IPM
Max Tool Diameter...................3.9"
Max Tool Length.....................13"
Max Tool Weight.....................17 lbs.
Machine Dimensions (L x W x H)......73" x 79" x 92"
Machine Weight......................6600 lbs.
Equipped With:
FANUC 0i-MATE MB CNC CONTROL
10.4" Color CRT
Tool Path Graphic Display
Flood Coolant System
Rigid Tapping
10000 RPM Spindle Speed
(16) Position Tool Changer
Chip Conveyor
Three Color Tower Light
Remote Manual Pulse Generator
15 HP Spindle Motor
Full Enclosure
Heavy Duty Box Way Construction
1369 Run Hours
1028 Cutting Hours
