OKADA DMM-2419
Type:
Vertical Machining Centers
Manufacturer:
OKADA
Model:
DMM-2419
Condition:
Not Specified
Year:
1997
Stock #:
31796
Status:
Sold
Description:
OKADA DMM-2419, FANUC 160iM CNC , 92"X63"X36", 16 ATC, 50 TAPER
Videos:
Location:
Michigan, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

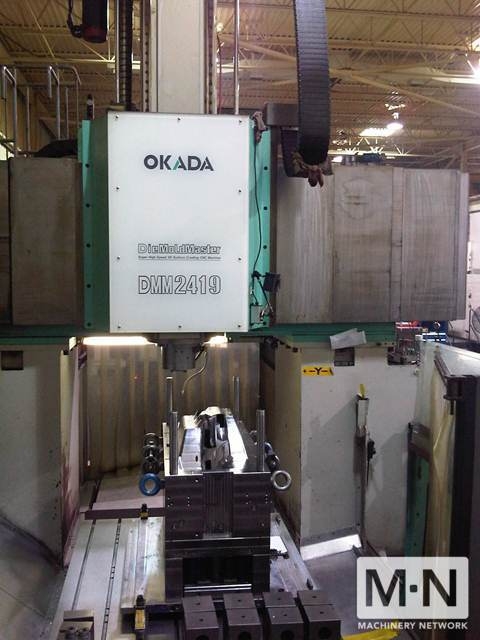

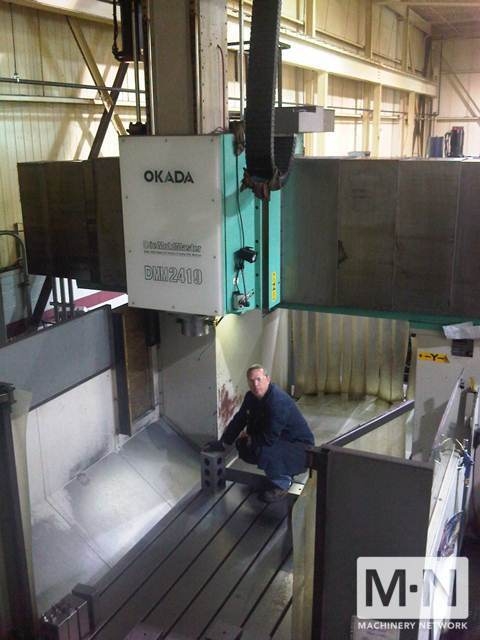

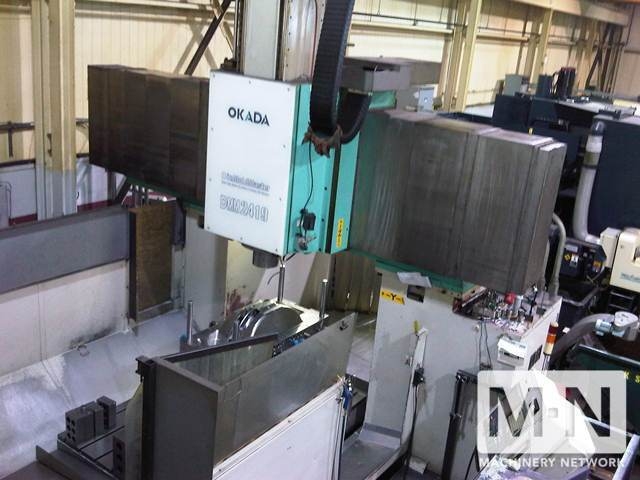

1) USED OKADA DMM-2419 BRIDGE TYPE CNC VERTICAL MACHINING CENTER
NEW 1997
SPECIFICATIONS:
TRAVELS
(X) AXIS.............................................................. 92"
(Y) AXIS.............................................................. 63"
(Z) AXIS............................................................... 36"
TABLE SIZE....................................................... 63" X 92"
DISTANCE BETWEEN COLUMNS................. 72.5"
MAXIMUM TABLE LOAD................................ 37,500 LBS.
SPINDLE NOSE TO TOP OF TABLE
MINIMUM............................................................ 15"
MAXIMUM........................................................... 51"
SPINDLE SPEEDS................................................ 80-8,000 RPM
SPINDLE MOTOR................................................ 25/35 HP
SPINDLE TAPER.................................................. #50
TOOL CHANGER................................................. 16 ATC
RAPID FEEDS
X............................................................................ 784 IPM
Y/Z......................................................................... 594 IPM
WEIGHT................................................................. 55,000 LBS APPROX
FLOOR DIMENSIONS......................................... 294L-R X 205"WIDE" X 176" HT.(HEAD ALL THE WAY UP 204")
EQUIPPED WITH:

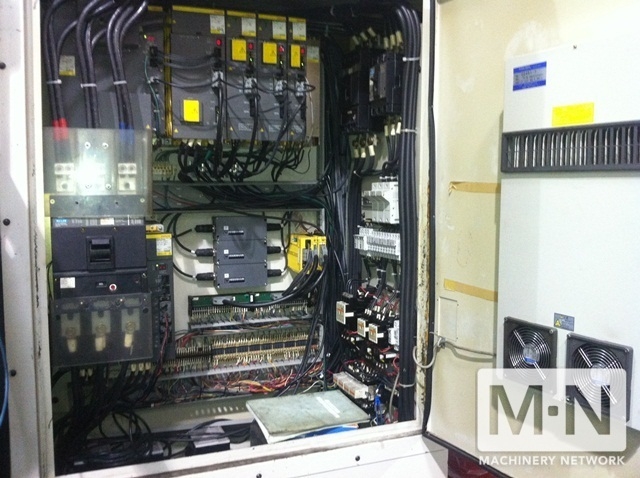

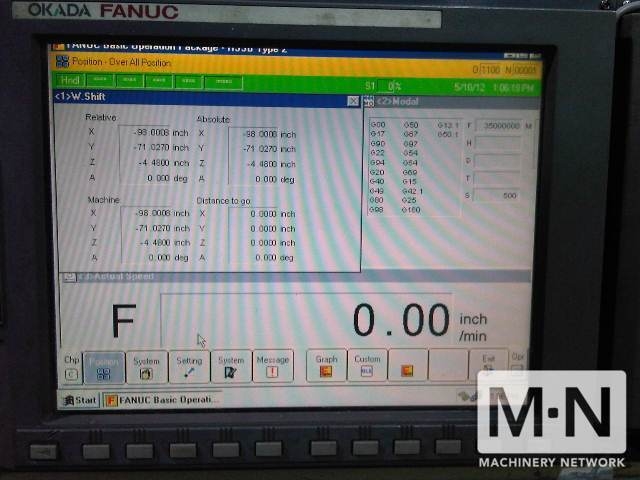

FANUC 160iM CNC CONTROLS
ETHERNET
SCALES (X,Y,Z)
DIRECT DRIVE ON SPINDLE
CHIP CONVEYORS
COOLANT SYSTEM
CHILLER
TWIN AUGERS

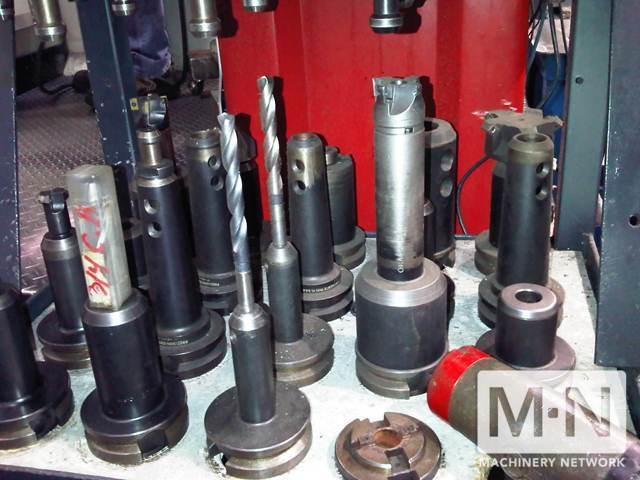

TOOL HOLDERS
NEW 1997
SPECIFICATIONS:
TRAVELS
(X) AXIS.............................................................. 92"
(Y) AXIS.............................................................. 63"
(Z) AXIS............................................................... 36"
TABLE SIZE....................................................... 63" X 92"
DISTANCE BETWEEN COLUMNS................. 72.5"
MAXIMUM TABLE LOAD................................ 37,500 LBS.
SPINDLE NOSE TO TOP OF TABLE
MINIMUM............................................................ 15"
MAXIMUM........................................................... 51"
SPINDLE SPEEDS................................................ 80-8,000 RPM
SPINDLE MOTOR................................................ 25/35 HP
SPINDLE TAPER.................................................. #50
TOOL CHANGER................................................. 16 ATC
RAPID FEEDS
X............................................................................ 784 IPM
Y/Z......................................................................... 594 IPM
WEIGHT................................................................. 55,000 LBS APPROX
FLOOR DIMENSIONS......................................... 294L-R X 205"WIDE" X 176" HT.(HEAD ALL THE WAY UP 204")
EQUIPPED WITH:
FANUC 160iM CNC CONTROLS
ETHERNET
SCALES (X,Y,Z)
DIRECT DRIVE ON SPINDLE
CHIP CONVEYORS
COOLANT SYSTEM
CHILLER
TWIN AUGERS
TOOL HOLDERS
