MAKINO CNJ2-30
Type:
GRINDERS, TOOL & CUTTER, N/C & CNC
Manufacturer:
MAKINO
Model:
CNJ2-30
Condition:
Not Specified
Year:
1999
Stock #:
31295
Status:
Sold
Description:
6 AXIS FANUC
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

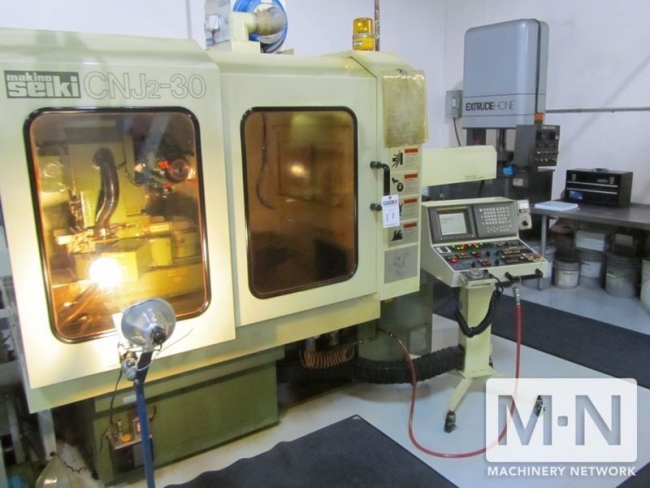

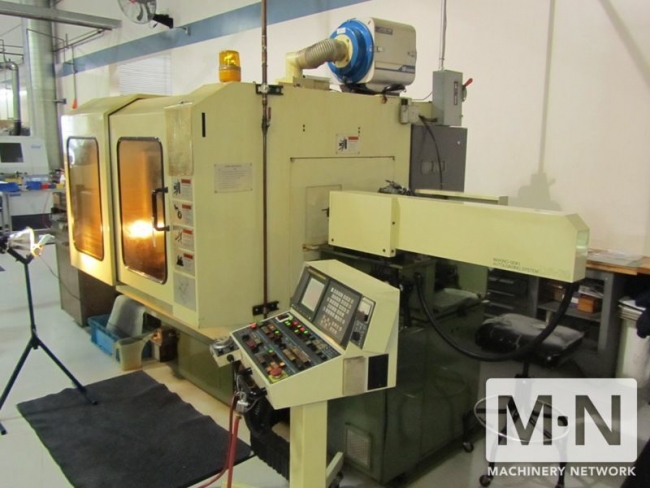

(1) Used Makino Seiki Model CNJ2-30 6 Axis CNC Tool & Cutter Grinder - New 1996
SPECIFICATIONS:
Travels & rapid traverse rates :
X axis: 11.8", 866" ipm
Y axis: 11.8", 866 ipm
Z axis: 12.6", 866 ipm
A axis: 360deg, 20000 deg/min
U axis: 7.8", 200 ipm
W axis: 180deg, 30000 deg/min.
RESOLUTION:
Linear axes (X, Y , Z & U) 0.00004"
Radial axes (A & W) 0.0001 deg
GRINDING SPINDLE MOTOR:
10 HP
Spindle speeds
2000 - 8000 RPM
6" wheels, max diam.
Up to 4 wheels
ISO 30 taper

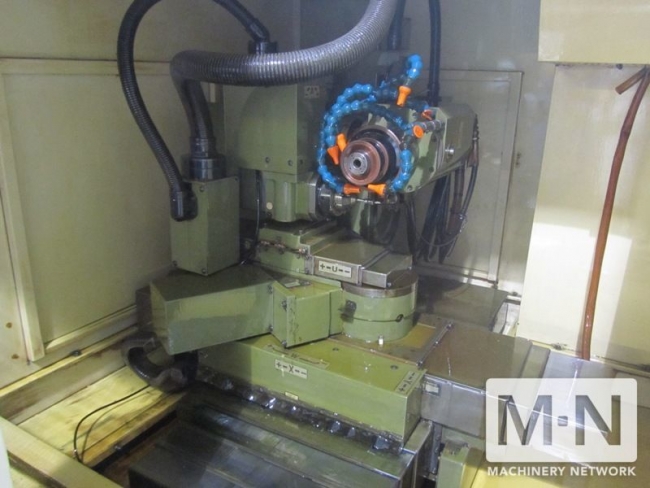

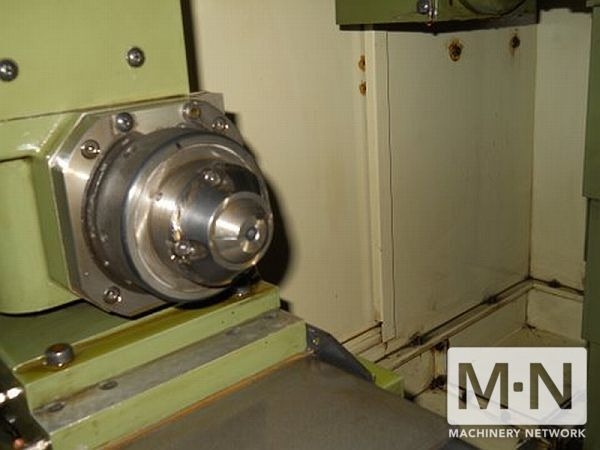

AUTOMATIC WORKHEAD:
ISO 50 Taper
Makino Seiki workhead
Hydraulic clamping
Uses Makino Seiki K-28, K-35, K-45 collet adaptors
GRINDING CAPACITY:
2" max. Tool shank diam
17" max length
9.8" max tool diam
7.8 max. Flute length
+/-60 deg helix angle
DIMENSIONS
107"L x 82"W x 92"H
6000 lbs
Equipped with
Fanuc 16M CNC Control
Makino LVA-70 automatic part loading system
Mist collector
Coolant system with paper filter
Sold F.O.B. Kaiser Tool facility, Fort Wayne, IN
Estimated delivery - 2 weeks after payment in full received
SPECIFICATIONS:
Travels & rapid traverse rates :
X axis: 11.8", 866" ipm
Y axis: 11.8", 866 ipm
Z axis: 12.6", 866 ipm
A axis: 360deg, 20000 deg/min
U axis: 7.8", 200 ipm
W axis: 180deg, 30000 deg/min.
RESOLUTION:
Linear axes (X, Y , Z & U) 0.00004"
Radial axes (A & W) 0.0001 deg
GRINDING SPINDLE MOTOR:
10 HP
Spindle speeds
2000 - 8000 RPM
6" wheels, max diam.
Up to 4 wheels
ISO 30 taper
AUTOMATIC WORKHEAD:
ISO 50 Taper
Makino Seiki workhead
Hydraulic clamping
Uses Makino Seiki K-28, K-35, K-45 collet adaptors
GRINDING CAPACITY:
2" max. Tool shank diam
17" max length
9.8" max tool diam
7.8 max. Flute length
+/-60 deg helix angle
DIMENSIONS
107"L x 82"W x 92"H
6000 lbs
Equipped with
Fanuc 16M CNC Control
Makino LVA-70 automatic part loading system
Mist collector
Coolant system with paper filter
Sold F.O.B. Kaiser Tool facility, Fort Wayne, IN
Estimated delivery - 2 weeks after payment in full received
