MORI SEIKI SL 75C
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
MORI SEIKI
Model:
SL 75C
Condition:
Not Specified
Year:
1994
Stock #:
31285
Status:
Sold
Description:
Fanuc 16TF, 10.2" bore, Chip conveyor, 24" chuck, front & rear, tailstock, 50 HP
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

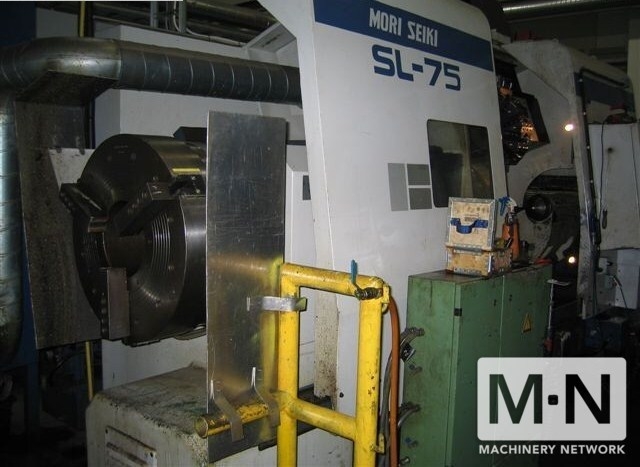

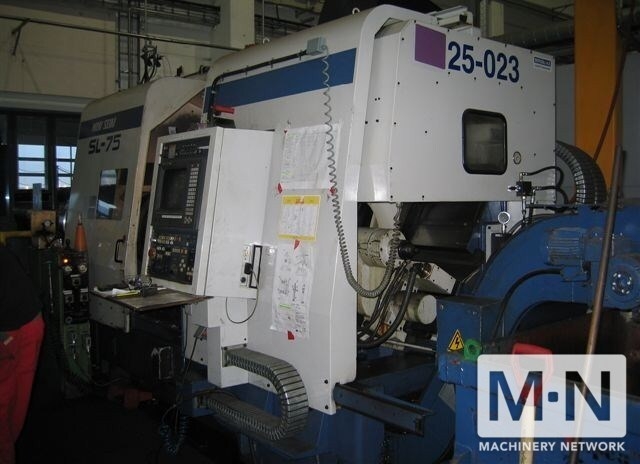

1) USED MORI SEIKI SL 75C CNC BIG HOLE UNIVERSAL LATHE
YEAR: 1995
SPECIFICATIONS:
Maximum Swing ....................................................35.8"
Maximum Swing Over Carriage.............................22.8"
Distance Between Center........................................65.4"
Maximum Turning Length......................................61.0"
Spindle Bore Dia.....................................................10.2"
Spindle Nose...........................................................A1-20"
Spindle Speeds........................................................6-580 RPM

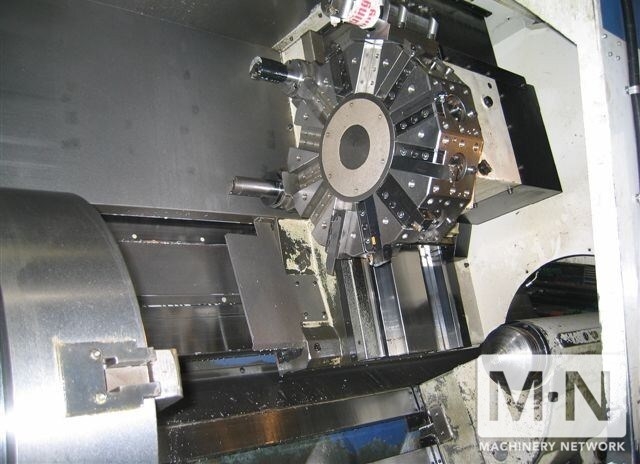

Turret Configuration...............................................12 Station Turret
X - Axis Travel.......................................................15.8"
Z - Axis Travel........................................................61"
Tail Stock Center.....................................................MT #5
Tail Stock Quill Diameter.......................................5.9"
Tail Stock Quill Stroke............................................5.9"
Tail Stock Body Stroke...........................................59"
Main Motor.............................................................50 HP AC
EQUIPPED WITH

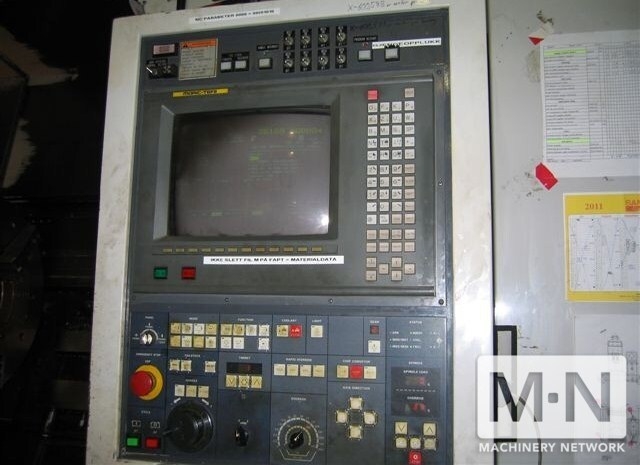

FANUC 16TF CNC CONTROL

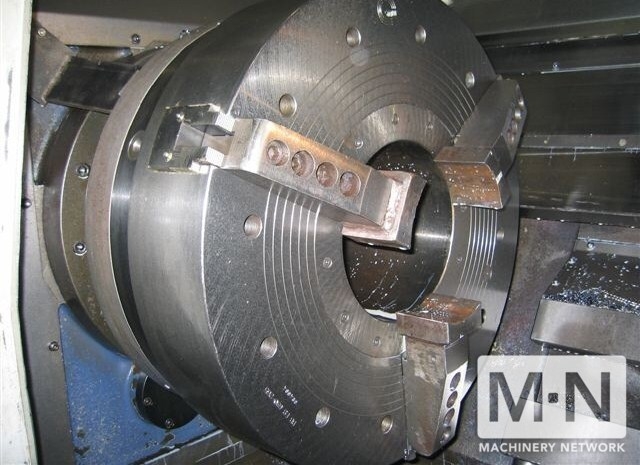

FRONT CHUCK 24" 3-JAW SMW AIR CHUCK MODEL BB 630-265 ES
REAR CHUCK 24" 3-JAW SMW AIR CHUCK MODEL BB 630-265 ES
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
YEAR: 1995
SPECIFICATIONS:
Maximum Swing ....................................................35.8"
Maximum Swing Over Carriage.............................22.8"
Distance Between Center........................................65.4"
Maximum Turning Length......................................61.0"
Spindle Bore Dia.....................................................10.2"
Spindle Nose...........................................................A1-20"
Spindle Speeds........................................................6-580 RPM
Turret Configuration...............................................12 Station Turret
X - Axis Travel.......................................................15.8"
Z - Axis Travel........................................................61"
Tail Stock Center.....................................................MT #5
Tail Stock Quill Diameter.......................................5.9"
Tail Stock Quill Stroke............................................5.9"
Tail Stock Body Stroke...........................................59"
Main Motor.............................................................50 HP AC
EQUIPPED WITH
FANUC 16TF CNC CONTROL
FRONT CHUCK 24" 3-JAW SMW AIR CHUCK MODEL BB 630-265 ES
REAR CHUCK 24" 3-JAW SMW AIR CHUCK MODEL BB 630-265 ES
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
