OMAX 55100
Type:
WATER JET CUTTING, CNC
Manufacturer:
OMAX
Model:
55100
Condition:
Not Specified
Year:
2002
Stock #:
30096
Status:
Sold
Description:
40 HP, TILT-A-HEAD, NEW CONTROLS
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

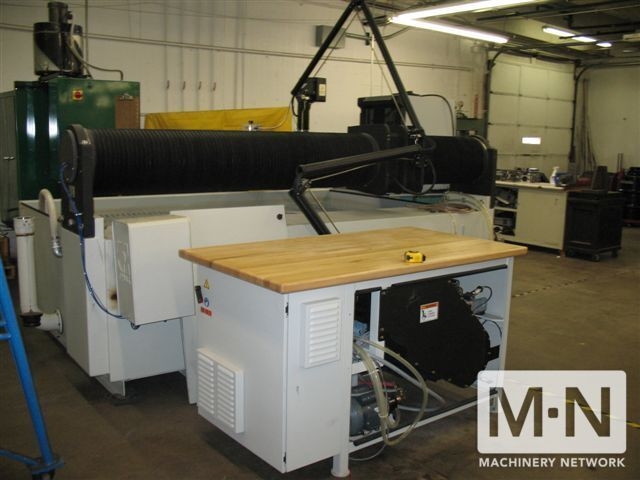

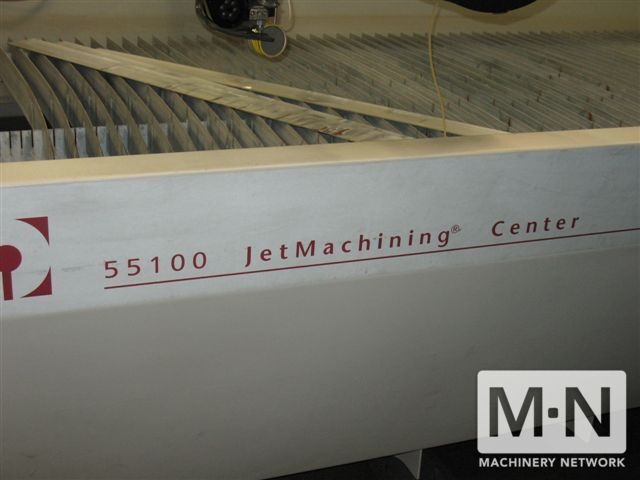

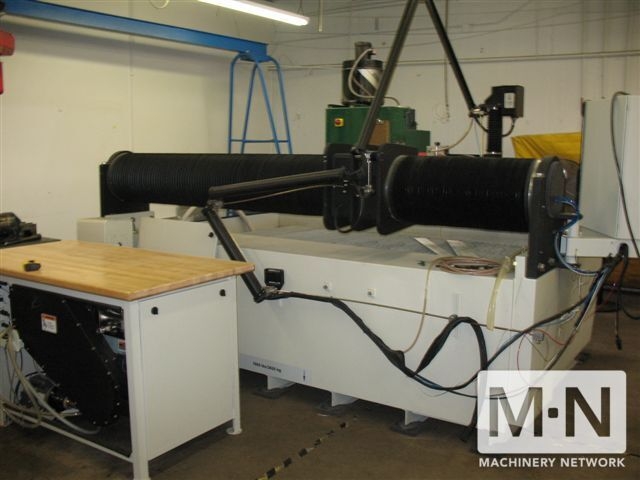

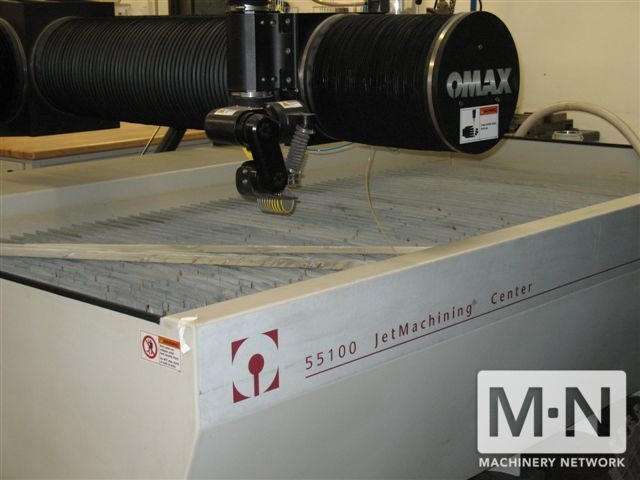

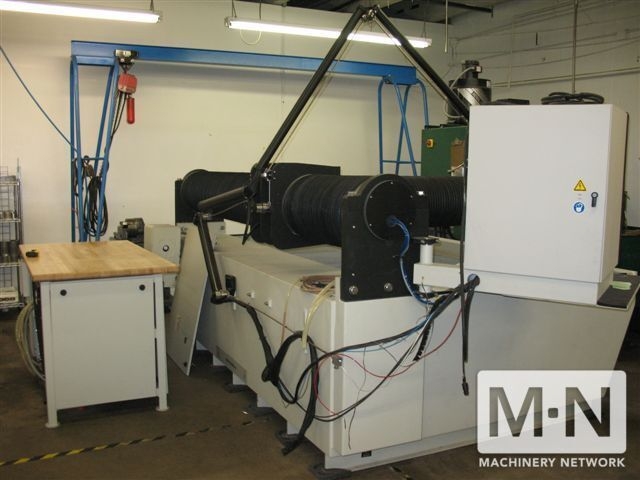

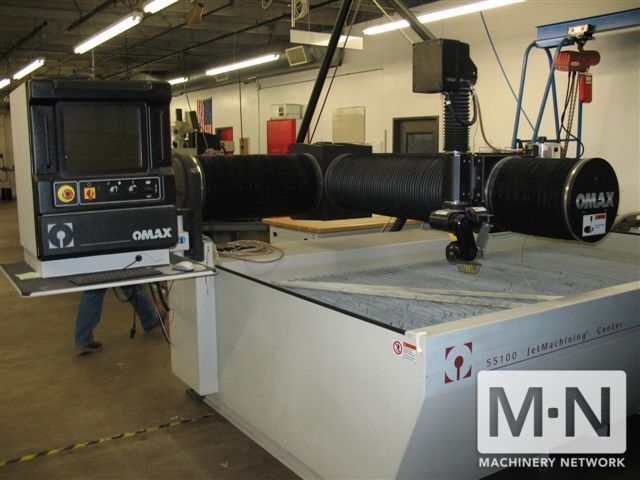

OMAX 55100 WATERJET
NEW 2002
Machine Dimensions
Footprint (with controller) 155" x 94" (3,937 mm x 2,388 mm)
Weight (tank empty) 8,000 lb (3,629 kg)
Height (with scissor plumbing) 118" (2,998 mm)
Operating Weight 22,000 lb (10,000 kg)
(with water in tank)

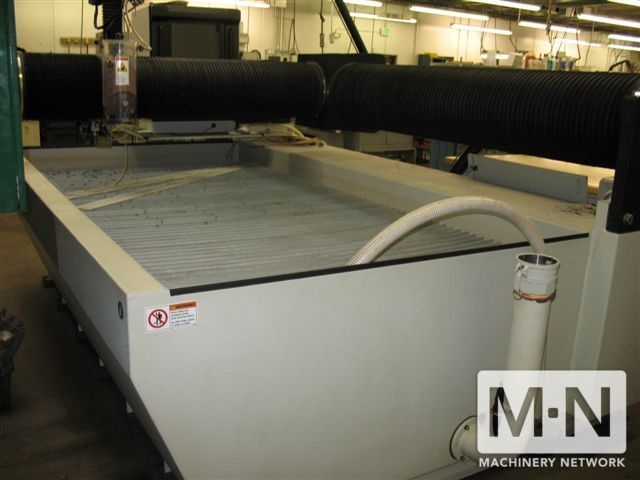

Work Envelope
X-Y Travel 100" x 55" (2,540 mm x 1,397 mm)
Table Size 126" x 65" (3,200 mm x 1,650 mm)
Material Supported Slats 4" x 1/8" Galvanized Steel
Maximum Supported
Material Load 400 lbs/sq ft (1,950 kg/sq meter)
(Optional accessories may reduce travel. Contact OMAX for information.)
Computer Control System
Hardware Personal computer
Control Software Integrated CAD/CAM system directly uses DXF files
Drive Description
• Closed loop, digital drives
• Brushless servo motors
• Pre-loaded ball screws, recirculating ball bearings
• Linear bearings with hardened, precision ground ways
• Cantilever Y-axis on bridge X-axis
Accuracy of Motion at 70° F
Ballbar Circularity (Over 12")
At Max. T
raverse Velocity ±0.003" (±0.08 mm)
Repeatability ±0.002" (±0.051 mm)
Squareness 0.002" per ft (0.17 mm/m)
Straightness 0.003" per ft (0.25 mm/m)
Backlash 0.0007" maximum (0.018 mm)
Speed
• 180 inches per minute standard (4,572 mm/min)
Electrical Requirements
• 3-Phase, 380-480 VAC ±10%, 50-60 Hz
(Note: Contact OMAX for detailed utility requirements. Pumps are built to meet
UL and CE specifications.)

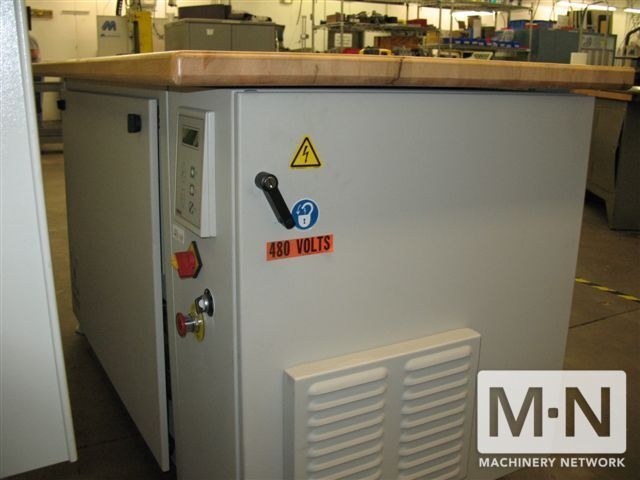

Pump Options
• 30 horsepower,
55,000 psi (3,850 bar)
• 40 horsepower,
55,000 psi (3,850 bar)
Noise Level
• Below 80 dBA at 1 meter for submerged cutting
Equipped with:
. 40 Horsepower

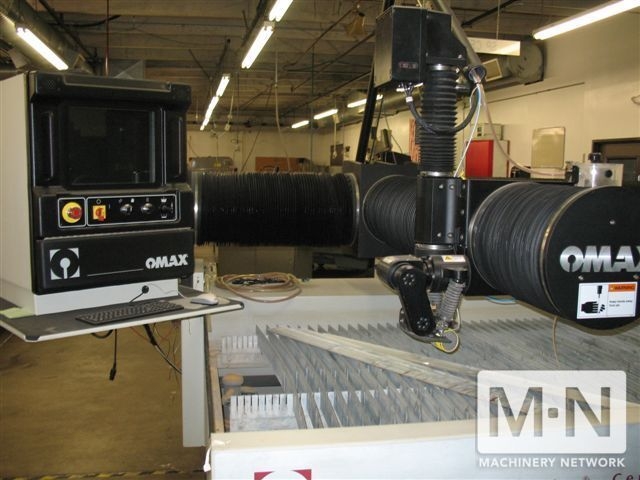

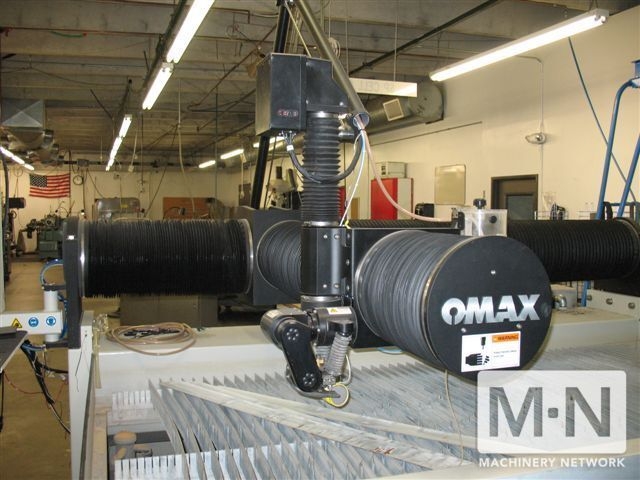

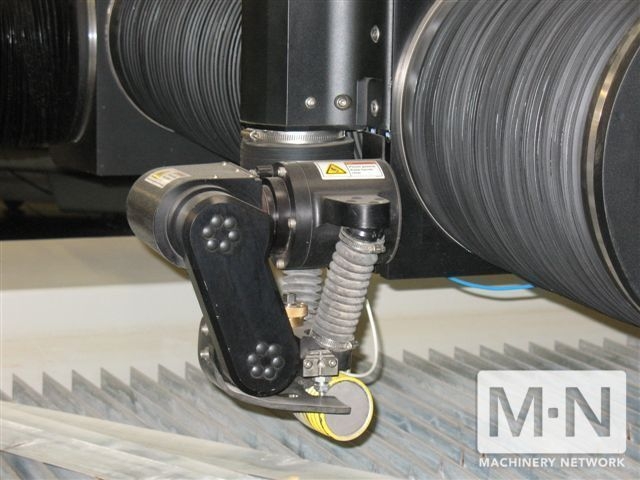

. Tilt-A-Jet
. New Controls *
* The machine is in Great condition as far as servo's and the pump are concerned.
It ran for only one week before the power surge melted the controller. Due to a power outage that caused us to loose one leg of the 3 phase power and the transformer was incorrectly wired and allowed the ground to feed back through basically.
For further information please call Harvey Geller at 714-968-9985
NEW 2002
Machine Dimensions
Footprint (with controller) 155" x 94" (3,937 mm x 2,388 mm)
Weight (tank empty) 8,000 lb (3,629 kg)
Height (with scissor plumbing) 118" (2,998 mm)
Operating Weight 22,000 lb (10,000 kg)
(with water in tank)
Work Envelope
X-Y Travel 100" x 55" (2,540 mm x 1,397 mm)
Table Size 126" x 65" (3,200 mm x 1,650 mm)
Material Supported Slats 4" x 1/8" Galvanized Steel
Maximum Supported
Material Load 400 lbs/sq ft (1,950 kg/sq meter)
(Optional accessories may reduce travel. Contact OMAX for information.)

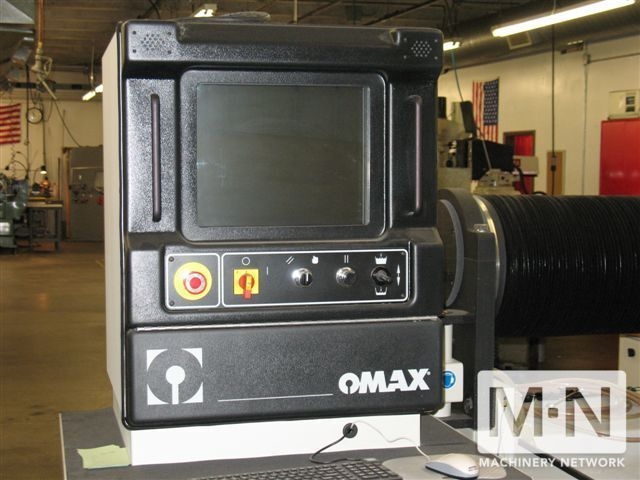

Computer Control System
Hardware Personal computer
Control Software Integrated CAD/CAM system directly uses DXF files
Drive Description
• Closed loop, digital drives
• Brushless servo motors
• Pre-loaded ball screws, recirculating ball bearings
• Linear bearings with hardened, precision ground ways
• Cantilever Y-axis on bridge X-axis
Accuracy of Motion at 70° F
Ballbar Circularity (Over 12")
At Max. T
raverse Velocity ±0.003" (±0.08 mm)
Repeatability ±0.002" (±0.051 mm)
Squareness 0.002" per ft (0.17 mm/m)
Straightness 0.003" per ft (0.25 mm/m)
Backlash 0.0007" maximum (0.018 mm)
Speed
• 180 inches per minute standard (4,572 mm/min)
Electrical Requirements
• 3-Phase, 380-480 VAC ±10%, 50-60 Hz
(Note: Contact OMAX for detailed utility requirements. Pumps are built to meet
UL and CE specifications.)
Pump Options
• 30 horsepower,
55,000 psi (3,850 bar)
• 40 horsepower,
55,000 psi (3,850 bar)
Noise Level
• Below 80 dBA at 1 meter for submerged cutting
Equipped with:
. 40 Horsepower
. Tilt-A-Jet
. New Controls *
* The machine is in Great condition as far as servo's and the pump are concerned.
It ran for only one week before the power surge melted the controller. Due to a power outage that caused us to loose one leg of the 3 phase power and the transformer was incorrectly wired and allowed the ground to feed back through basically.
For further information please call Harvey Geller at 714-968-9985
