Machinery Network > Used Inventory > MAZAK QTN-300

MAZAK QTN-300

Type:
MACHINING CENTERS, VERTICAL, N/C & CNC
Manufacturer:
MAZAK
Model:
QTN-300
Condition:
Not Specified
Year:
2007
Stock #:
29807
Status:
Sold
Description:
MAZATROL 640T, 26" SWING, 4K RPM, 3.5" SPINDLE BORE
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

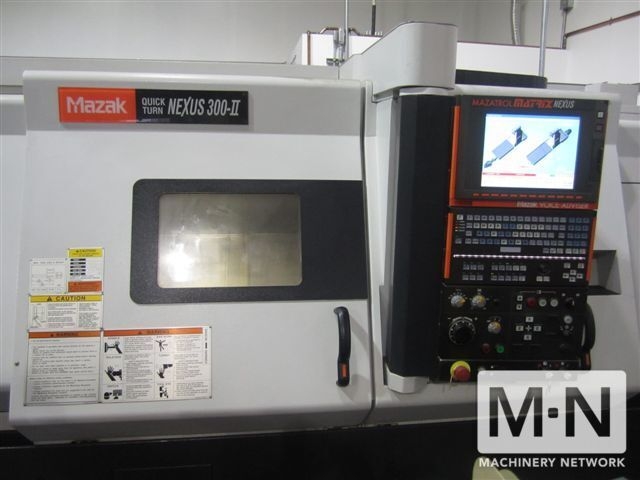

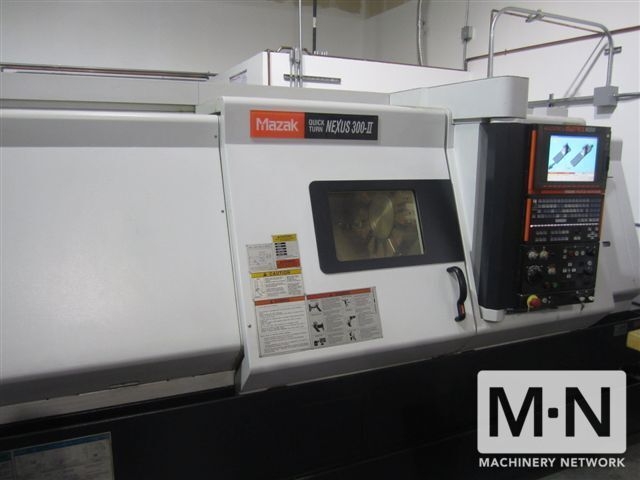

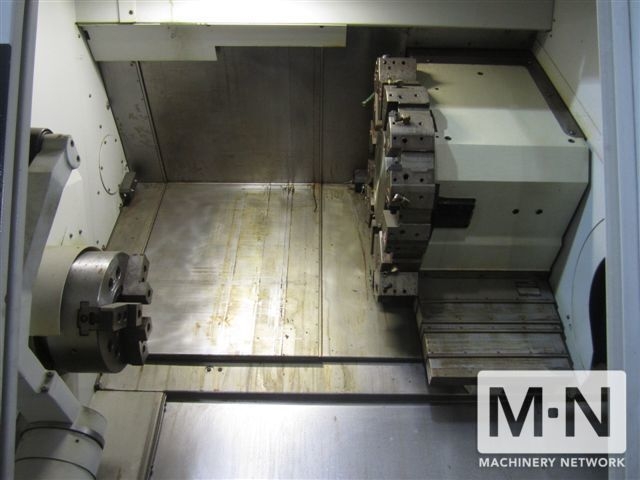

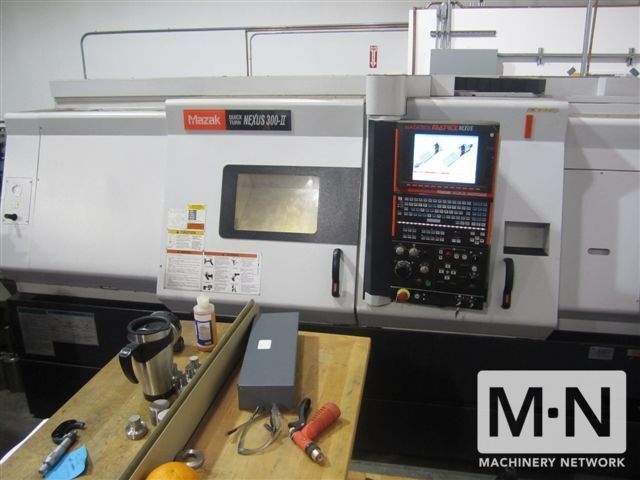

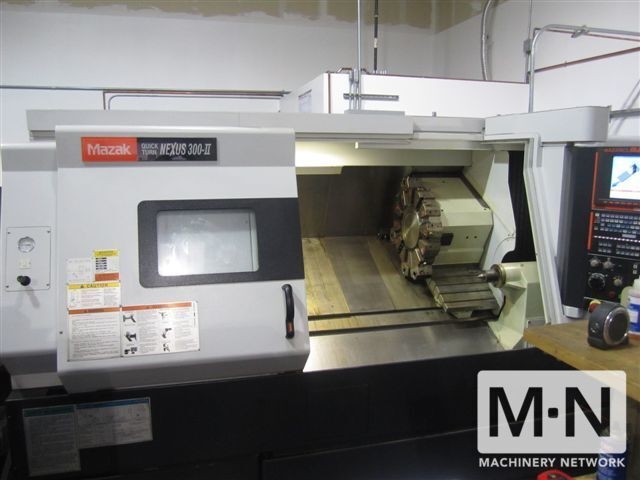

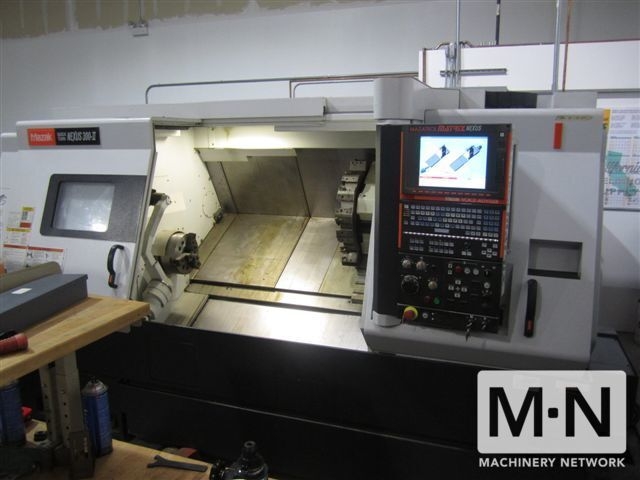

(1) USED MAZAK NEXUS QT 300 II/1200 CNC TURNING CENTER

ONLY 347 CUTTING HOURS !! NEW-DEC-2006

SPECIFICATIONS:
MAX. SWING 26.77"
MAX. CUTTING DIAMETER 16.54"
MAX. CUTTING LENGTH 46.2"
SPINDLE NOSE A2-8"
SPINDLE BORE 3.46"
SPINDLE SPEEDS 4000 RPM

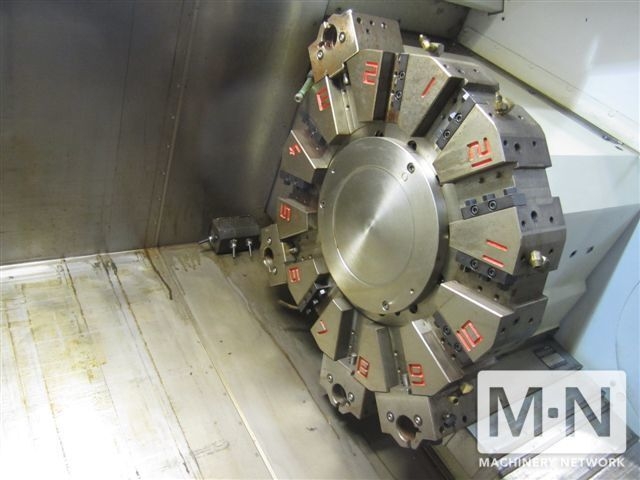

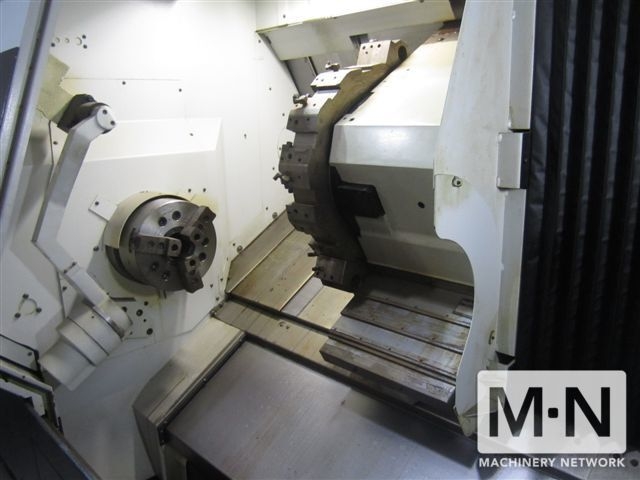

TURRET TYPE 12 POSITION BOLT -ON
TOOL SIZE 1" X 1" X 6"
STROKE OF TURRET X , Z 8.875", 49.125"
RAPID TRAVERSE RATE X , Z 1181 IPM , 984 IPM

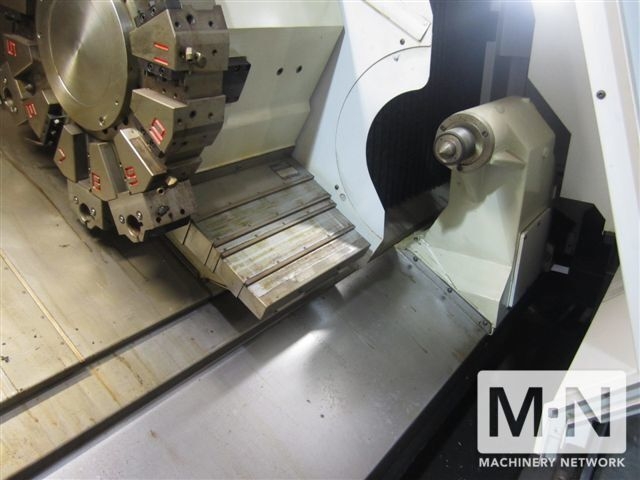

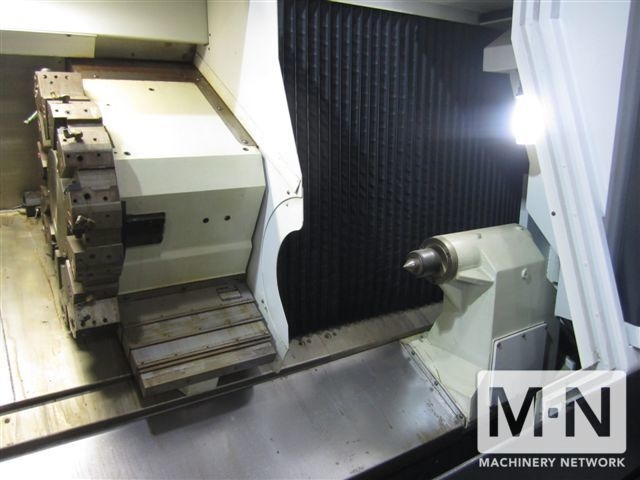

TAILSTOCK CONTROL FULLY PROGRAMABLE
TAILSTOCK QUILL DIA. 3.94"
TAILSTOCK CENTER MT # 5
STROKE OF TAIL BODY 37.875"
MAIN MOTOR 35/30 HP AC
MACHINE WEIGHT 15,600 #

EQUIPPED WITH:

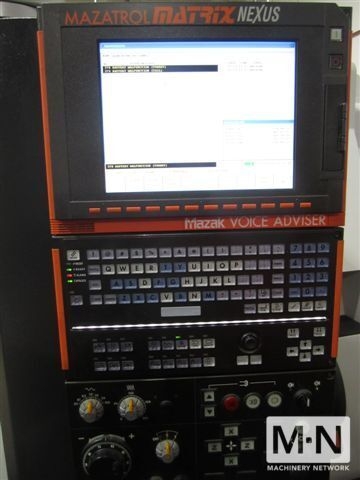

MAZATROL MATRIX FUSION 640T CONTROL
USER MACRO
COMPARISON STOP
HYDRAULIC PRESSURE INTERLOCK
12.1"COLOR LCD
AUTOMATIC TOOL EYE
EIA/ISO PROGRAMMING
WINDOWS XP OPERATING SYSTEM

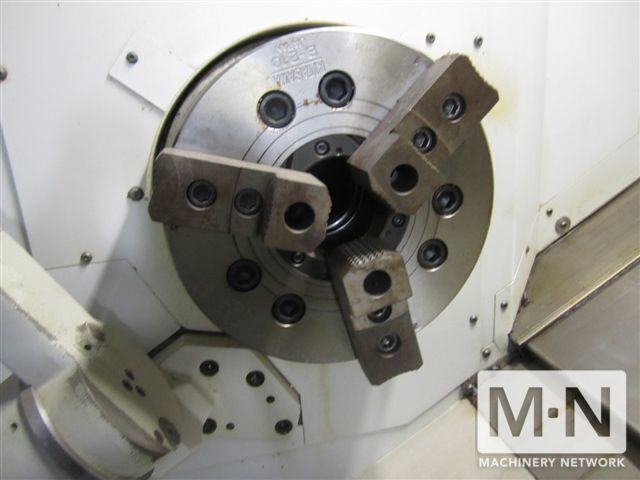

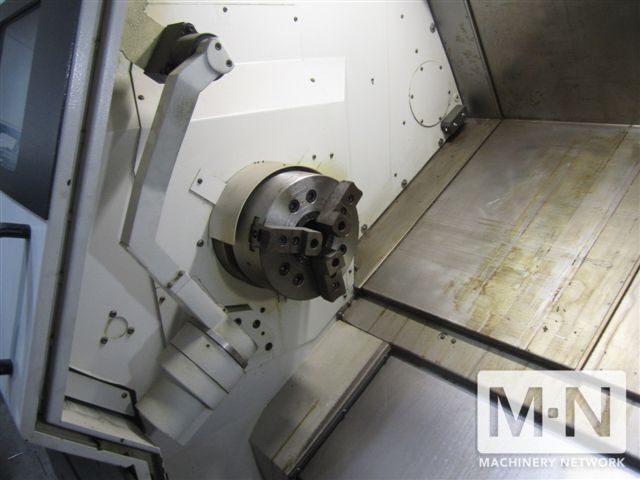

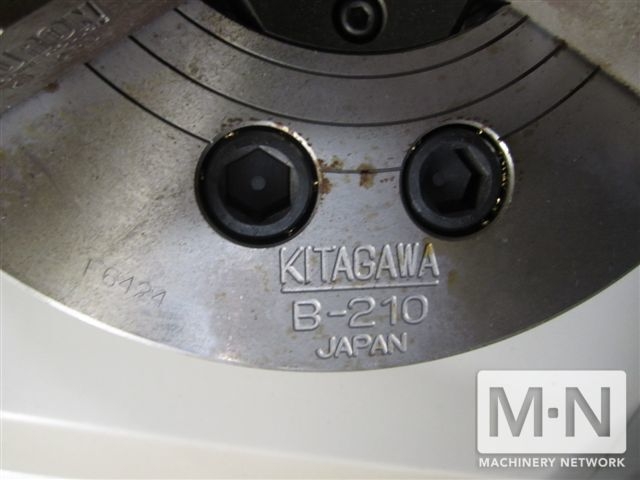

10" 3-JAW HYDRAULIC CHUCK
DOOR INTERLOCKS
11/06 MFG DATE
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
