MILLTRONICS PARTNER MB 20
Type:
Vertical Machining Centers
Manufacturer:
MILLTRONICS
Model:
PARTNER MB 20
Condition:
Not Specified
Stock #:
29371
Status:
Sold
Description:
MILLTRONICS
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

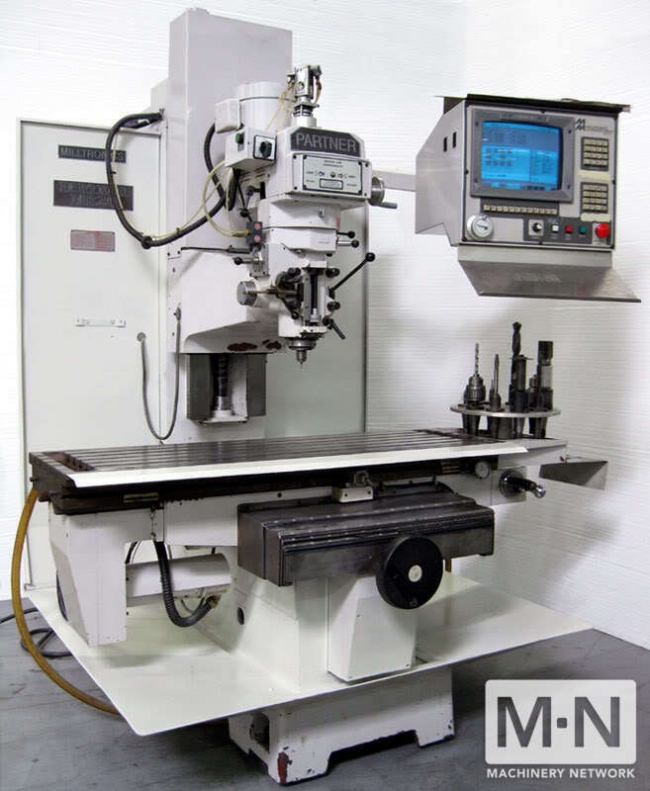

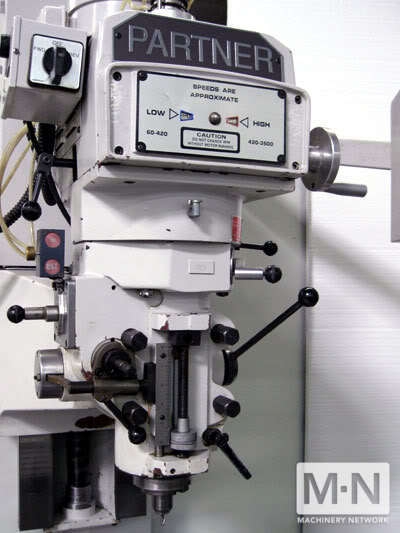

(1) USED MILLTRONICS PARTNER MB 20 CNC VERTICAL MILL
SPECIFICATIONS:
TRAVELS:
X-AXIS: 38"
Y-AXIS: 20"
Z-AXIS: 24"
QUILL (MANUAL): 5"
SPINDLE NOSE TO TAPER (MIN): 5"
SPINDLE NOSE TO TAPER (MAX): 29"

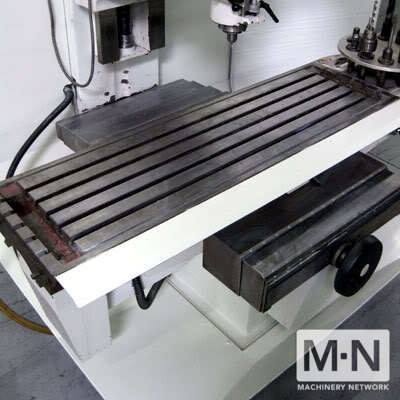

TABLE SIZE: 54"x16"
T-SLOT WIDTH: 5/8"
NUMBER OF STD T-SLOTS: 3
MAX WEIGHT ON TABLE: 1870 LB
SPINDLE MOTOR: 5 HP

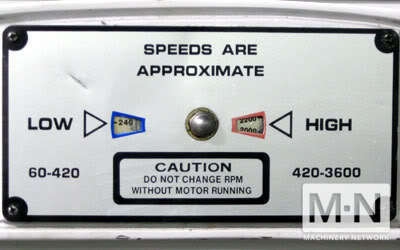

MAX SPEED: 3600 RPM
TAPER: 40 NMTB
BEARING LUBRICATION: GREASE PACKED
COOLING: AIR COOLED
FEEDRATES X,Y,Z: 200 IPM
MAX CUTTING RATE: 200 IPM
EQUIPPED WITH:

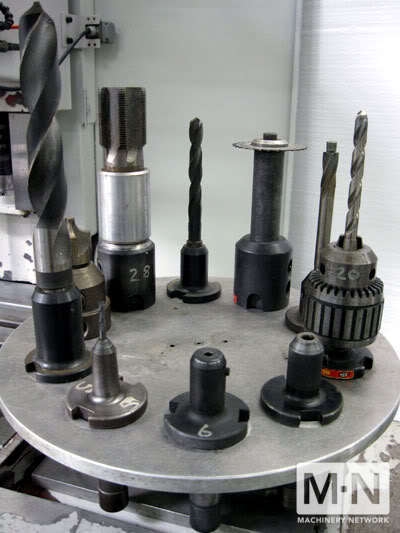

10 NMTB-40 TOOL HOLDERS WITH TOOLS AS SHOWN
CENTURION PROGRAMMING AND OPERATION MANUAL
SPECIFICATIONS:
TRAVELS:
X-AXIS: 38"
Y-AXIS: 20"
Z-AXIS: 24"
QUILL (MANUAL): 5"
SPINDLE NOSE TO TAPER (MIN): 5"
SPINDLE NOSE TO TAPER (MAX): 29"
TABLE SIZE: 54"x16"
T-SLOT WIDTH: 5/8"
NUMBER OF STD T-SLOTS: 3
MAX WEIGHT ON TABLE: 1870 LB
SPINDLE MOTOR: 5 HP
MAX SPEED: 3600 RPM
TAPER: 40 NMTB
BEARING LUBRICATION: GREASE PACKED
COOLING: AIR COOLED
FEEDRATES X,Y,Z: 200 IPM
MAX CUTTING RATE: 200 IPM
EQUIPPED WITH:
10 NMTB-40 TOOL HOLDERS WITH TOOLS AS SHOWN
CENTURION PROGRAMMING AND OPERATION MANUAL
