HAAS SR-200
Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
SR-200
Condition:
Not Specified
Year:
2009
Stock #:
29363
Status:
Sold
Description:
EXCELLENT CONDITION
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

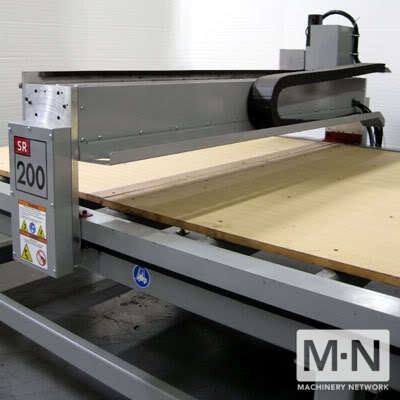

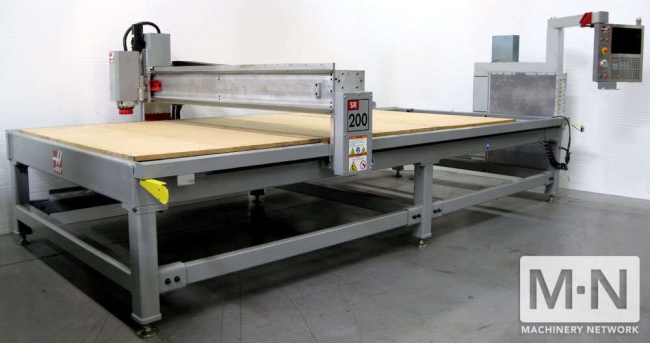

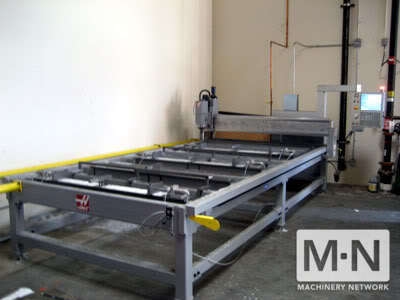

(1) USED HAAS SR-200 CNC ROUTER
NEW 2009
SPECIFICATIONS:

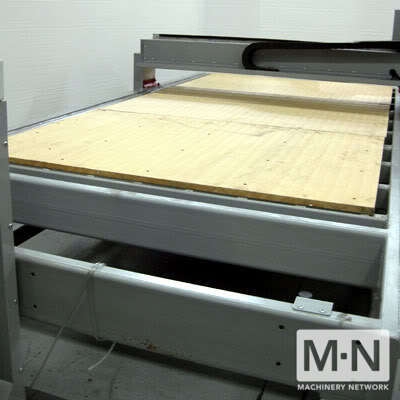

TABLE SIZE: 144"x72"
TRAVELS:
X-AXIS: 148"
Y-AXIS: 76"
Z-AXIS: 8"
DISTANCE BETWEEN COLUMNS: 86.5"
BRIDGE TO TABLE CLEARANCE: 6.25"
SPINDLE NOSE TO TABLE: 3"-11"

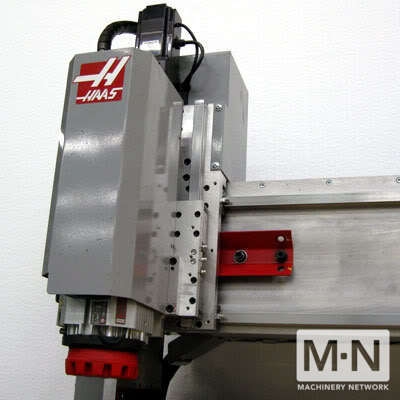

SPINDLE SPEED: 24,000 RPM
SPINDLE MOTOR: 8.9 HP
SPINDLE TAPER: 30 TAPER
MAX TORQUE: 3.85 FT/LB
FEEDRATES (X,Y,Z): 2000,2000,590 IPM
EQUIPPED WITH:

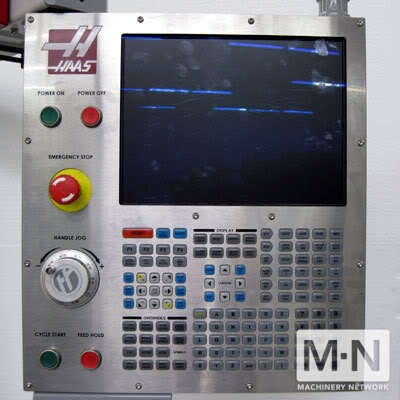

HAAS CNC CONTROL
MULTI-USE 3-AXIS PLATFORM
OPEN FRAME DESIGN
HIGH SPEED RAPIDS
15" COLOR LCD MONITOR w/ USB PORT
1" THICK MDF TABLE
SINGLE OR THREE PHASE OPERATION
NEW 2009
SPECIFICATIONS:
TABLE SIZE: 144"x72"
TRAVELS:
X-AXIS: 148"
Y-AXIS: 76"
Z-AXIS: 8"
DISTANCE BETWEEN COLUMNS: 86.5"
BRIDGE TO TABLE CLEARANCE: 6.25"
SPINDLE NOSE TO TABLE: 3"-11"
SPINDLE SPEED: 24,000 RPM
SPINDLE MOTOR: 8.9 HP
SPINDLE TAPER: 30 TAPER
MAX TORQUE: 3.85 FT/LB
FEEDRATES (X,Y,Z): 2000,2000,590 IPM
EQUIPPED WITH:
HAAS CNC CONTROL
MULTI-USE 3-AXIS PLATFORM
OPEN FRAME DESIGN
HIGH SPEED RAPIDS
15" COLOR LCD MONITOR w/ USB PORT
1" THICK MDF TABLE
SINGLE OR THREE PHASE OPERATION
