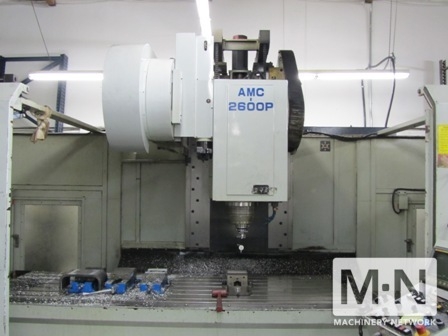

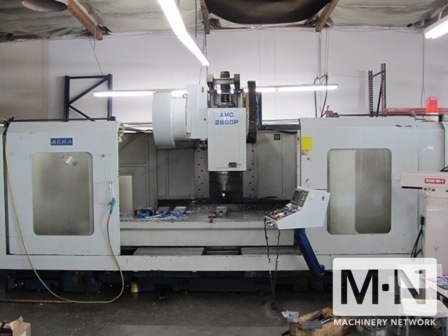

ACRA AMC-2600P
Type:
Vertical Machining Centers
Manufacturer:
ACRA
Model:
AMC-2600P
Condition:
Not Specified
Year:
2002
Stock #:
29279
Status:
Sold
Description:
FANUC OM, 102"x35"x41"
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED AMC 2600P CNC VERTICAL MACHINING CENTER
NEW 2002
SPECIFICATIONS:
TRAVELS:
X-AXIS: 102.4"
Y-AXIS: 35"
Z-AXIS: 41.3"
SPINDLE TO COLUMN: 36.2"
SPINDLE TO TABLE: 7.9"~37.4"

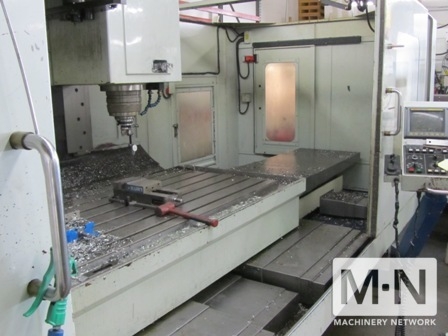

TABLE: 104.3"X35.4"
TYPE BASE: MEEHANITE, RIBBED
TYPE WAYS: PRECISION GROUND INTEGRAL BOX
3 AXES
NO OF WAYS ON Y AXIS: 6 (4 INTEGRAL, 2 OUTBOARD)
WIDTH OF Y AXIS SLIDEWAYS: 6"
HARDNESS & DEPTH: INDUCTION HARDENED TO 58 HRC
to 0.050"
BALLSCREW:
TYPE: DOUBLE NUT
SIZE (X/Y & Z)x PITCH: 63MM/50MMx10MM
MOUNTING: CLASS 5 BEARINGS, DOUBLE ANCHOR
FORCED LUBE (6)
INSTALLATION: PRE-TENSIONED, LASER ALIGNED

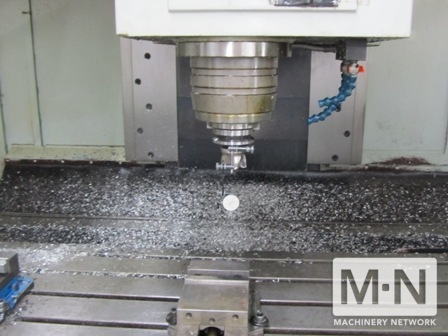

SPINDLE TAPER: BT-50
SPINDLE SPEED: 4,000 RPM
SPINDLE MOTOR: 30 HP
RAPID FEEDRATES: 394 IPM
CUTTING FEEDRATE: 0.01 - 197 IPM
POSITIONING: +- 0.0002"/12"
REPEATABILITY: +-0.0001"
ROUNDNESS: +-0.00039"/12" DIA.
TOOLS: 20 TOOLS

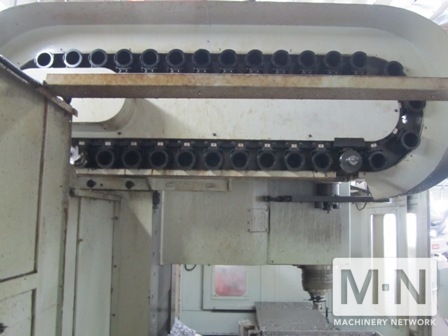

TYPE TOOL CHANGER: CAROUSEL, BI-DIRECTIONAL
(ARM TYPE OPT.)
MAX TOOL DIAMETER: 9.8"/11.8"
MAX TOOL WEIGHT: 33 LBS
SPINDLE MOTOR: 30 HP
AXES: 6.7 HP (AC DIGITAL)
COOLANT: 1.1 HP
CHIP AUGER (2): 1/4 HP
NET WEIGHT: 44,092 LBS.
FOOTPRINT: 206"x150"x125"
POWER: 35 KVA
AIR REQUIRED: 80 PSI
EQUIPPED WITH:

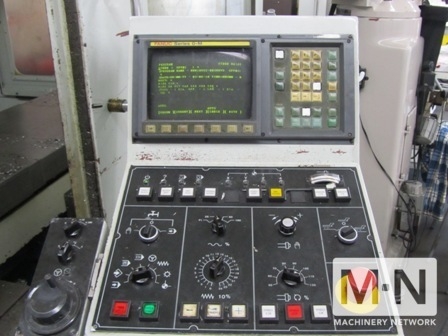

FANUC OM
TABLE SPLASH GUARD
ARMLESS TYPE AUTOMATIC TOOL CHANGER
PROGRAMMABLE COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM
SPINDLE AIR BLAST SYSTEM
WORKING LAMP
ALARM LAMP FOR ABNORMAL SITUATION
INDICATION LAMP FOR DWELL & END OF JOB
LEVELING BOLTS & PADS
BT#50 SPINDLE & ATC HTD BELT HEAD
PRE-EXTENDED BALLSCREWS
RS-232 TERMINAL INTERFACE PORT
MACHINE & CONTROL MANUALS
SCREW CHIP CONVEYOR BUILT IN SADDLE
TWO SPEEDS GEAR HEAD DRIVEN SPINDLE
NEW 2002
SPECIFICATIONS:
TRAVELS:
X-AXIS: 102.4"
Y-AXIS: 35"
Z-AXIS: 41.3"
SPINDLE TO COLUMN: 36.2"
SPINDLE TO TABLE: 7.9"~37.4"
TABLE: 104.3"X35.4"
TYPE BASE: MEEHANITE, RIBBED
TYPE WAYS: PRECISION GROUND INTEGRAL BOX
3 AXES
NO OF WAYS ON Y AXIS: 6 (4 INTEGRAL, 2 OUTBOARD)
WIDTH OF Y AXIS SLIDEWAYS: 6"
HARDNESS & DEPTH: INDUCTION HARDENED TO 58 HRC
to 0.050"
BALLSCREW:
TYPE: DOUBLE NUT
SIZE (X/Y & Z)x PITCH: 63MM/50MMx10MM
MOUNTING: CLASS 5 BEARINGS, DOUBLE ANCHOR
FORCED LUBE (6)
INSTALLATION: PRE-TENSIONED, LASER ALIGNED
SPINDLE TAPER: BT-50
SPINDLE SPEED: 4,000 RPM
SPINDLE MOTOR: 30 HP
RAPID FEEDRATES: 394 IPM
CUTTING FEEDRATE: 0.01 - 197 IPM
POSITIONING: +- 0.0002"/12"
REPEATABILITY: +-0.0001"
ROUNDNESS: +-0.00039"/12" DIA.
TOOLS: 20 TOOLS
TYPE TOOL CHANGER: CAROUSEL, BI-DIRECTIONAL
(ARM TYPE OPT.)
MAX TOOL DIAMETER: 9.8"/11.8"
MAX TOOL WEIGHT: 33 LBS
SPINDLE MOTOR: 30 HP
AXES: 6.7 HP (AC DIGITAL)
COOLANT: 1.1 HP
CHIP AUGER (2): 1/4 HP
NET WEIGHT: 44,092 LBS.
FOOTPRINT: 206"x150"x125"
POWER: 35 KVA
AIR REQUIRED: 80 PSI
EQUIPPED WITH:
FANUC OM
TABLE SPLASH GUARD
ARMLESS TYPE AUTOMATIC TOOL CHANGER
PROGRAMMABLE COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM
SPINDLE AIR BLAST SYSTEM
WORKING LAMP
ALARM LAMP FOR ABNORMAL SITUATION
INDICATION LAMP FOR DWELL & END OF JOB
LEVELING BOLTS & PADS
BT#50 SPINDLE & ATC HTD BELT HEAD
PRE-EXTENDED BALLSCREWS
RS-232 TERMINAL INTERFACE PORT
MACHINE & CONTROL MANUALS
SCREW CHIP CONVEYOR BUILT IN SADDLE
TWO SPEEDS GEAR HEAD DRIVEN SPINDLE
