Machinery Network > Used Inventory > KOMO VMC 40/240

KOMO VMC 40/240

Type:
Vertical Machining Centers
Manufacturer:
KOMO
Model:
VMC 40/240
Condition:
Not Specified
Year:
1998
Stock #:
28836
Status:
Sold
Description:
240"X24"X22", #40, F-16, 10K RPM
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

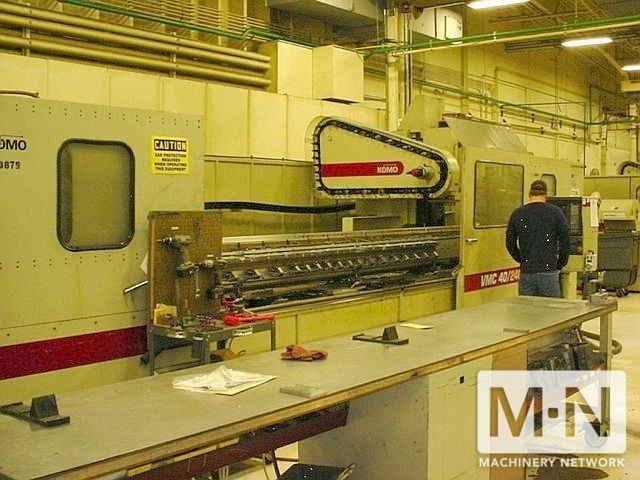

(1) USED KOMO VMC 40/240 TRAVELING COLUMN CNC VERTICAL MACHINING CENTER - NEW 1998

SPECIFICATIONS:
Table Size 280" X 24"
Table Travel X - Axis 242"
Y - Axis 24"
Z - Axis 22"
Spindle Nose CAT# 40 TAPER
Spindle Speed 10,000 RPM
Rapid Traverse Rate X 1000 IPM
Y,Z 600 IPM
Cutting Feed Rate 0-600 IPM

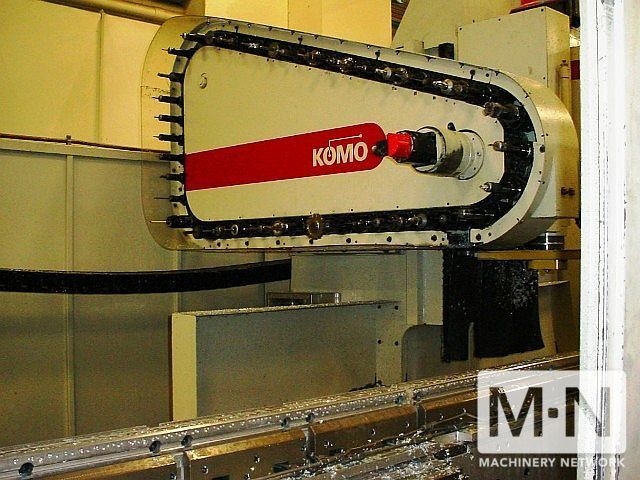

Number of Tool Change Position 47
Maximum Tool Diameter 4"
Maximum Tool Length 15.75"
Maximum Tool Weight 24 LBS.
Tool To Tool Change Time 3.4 SECS.
Main Motor 20 HP AC
Machine Weight 38,000 LBS.

EQUIPPED WITH:

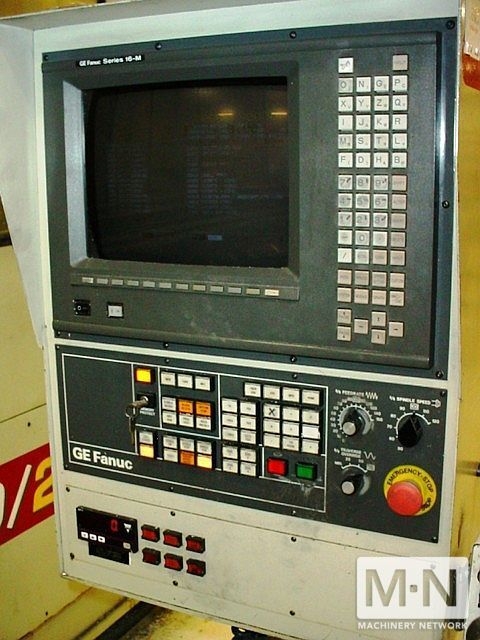

FANUC 16MB CNC CONTROL
X, Y-AXIS FEED BACK SCALE
MP10 PROBE
MANUAL PULSE GENERATOR
BARNES CLEAN ALL COOLANT THRU THE SPINDLE SYSTEM
FULL ENCLOSURE
HIGH SPEED MACHINING OPTION
RIGID TAPPING
LOOK AHEAD SOFTWARE
ALL AVAILABLE MANUALS
