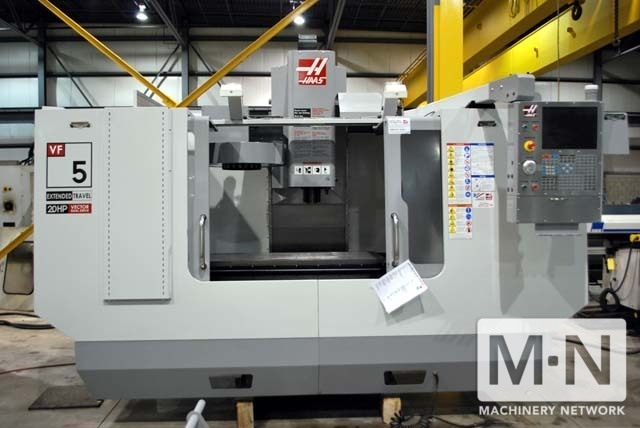

HAAS VF-5/40 XT

Type:

Vertical Machining Centers

Manufacturer:

HAAS

Model:

VF-5/40 XT

Condition:

Not Specified

Year:

2008

Stock #:

28653

Status:

Sold

Description:

60x26x25

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED HAAS MODEL VF-5/40XT VERTICAL MACHINING
CENTER WITH HAAS CONTROL, 60" X 26" X 25"

S/N 1068145 NEW 2008
SPECIFICATIONS:

TRAVELS
X-AXIS: 60"
Y-AXIS: 26"
Z-AXIS: 25"
SPINDLE NOSE TO TABLE: 7.9" - 32.9"

TABLE
LENGTH: 62"
WIDTH: 23"
T-SLOT WIDTH: 5/8"
T-SLOT CENTER DISTANCE: 3.15"
NUMBER OF STANDARD T-SLOTS: 7
MAX. WEIGHT ON TABLE: 4000 LBS

SPINDLE
MAX. RATING: 20 HP
MAX. SPEED: 7500 RPM
MAX. TORQUE: 75 FT-LB @ 1400 RPM
DRIVE SYSTEM: DIRECT SPEED BELT DRIVE G
TAPER SIZE: CT40 G
BEARING LUBRICATION: AIR/OIL INJECTION
COOLING: LIQUID COOLED

FEEDRATES
RAPIDS ON X-AXIS: 710 IPM
RAPIDS ON Y-AXIS: 710 IPM
RAPIDS ON Z-AXIS: 710 IPM
MAX. CUTTING: 500 IPM

AXIS MOTORS
MAX. THRUST X-AXIS: 3400 LBS
MAX. THRUST Y-AXIS: 3400 LBS
MAX. THRUST Z-AXIS: 5600 LBS

TOOL CHANGER
TYPE: CAROUSEL
CAPACITY: 20 G
MAX. TOOL DIAMETER (FULL): 3.5"
MAX. TOOL WEIGHT: 12 LB
TOOL TO TOOL (AVG.): 4.2 SEC
CHIP TO CHIP (AVG.): 4.5 SEC

GENERAL
AIR REQUIRED: 4 SCFM, 100 PSI
COOLANT CAPACITY: 55 GALLON
WEIGHT: 15,150 LBS

EQUIPPED WITH:

HAAS CNC CONTROL
HIGH INTENSITY LIGHTING
