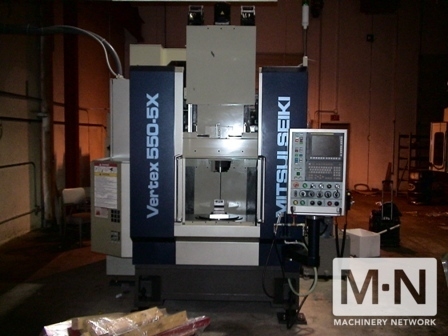

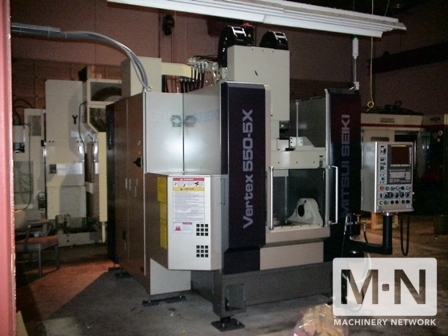

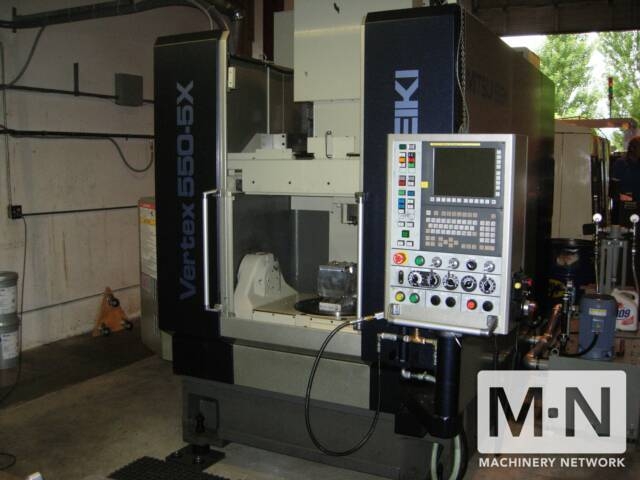

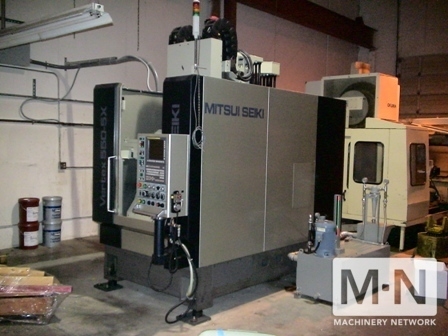

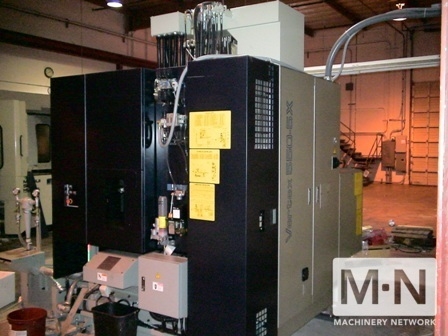

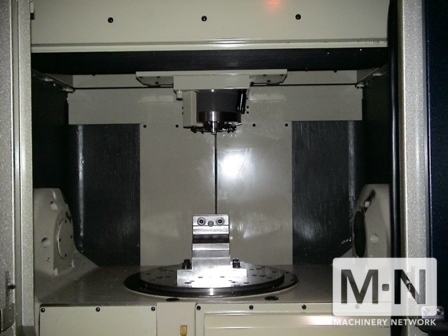

MITSUI SEIKI VERTEX 550-5X
Type:
Vertical Machining Centers
Manufacturer:
MITSUI SEIKI
Model:
VERTEX 550-5X
Condition:
Not Specified
Year:
2008
Stock #:
28372
Status:
Sold
Description:
FANUC 18iM, 21.7"x23.6"x19.7", CAT 40, CHIP CONVEYOR, CTS
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MITSUI SEIKI VERTEX 550-5X 5-AXIS HIGH PRECISION VERTICAL MACHINING CENTER
NEW 2008
SPECIFICATIONS:
TABLE SIZE: 15.7"x15.7"
MAX TABLE WEIGHT: 770 LBS
MOMENT: 148 LBFT.
TABLE SURFACE: TAPPED HOLE M12
HEIGHT FROM FLOOR TO TABLE TOP: 35.43"
TRAVELS:
X-AXIS: 21.7"
Y-AXIS: 23.6"
Z-AXIS: 19.7"
A-AXIS: +15~-105 DEG.
C-AXIS: 360 DEG.
DIST FROM SPINDLE TO TABLE: 3.94"-23.6"
MAX WORK SIZE: 19.7"x12.7"
MAX WORK SIZE WITH MAX TOOL DIA: 19.7"x12.7"
RAPID TRAVERSE RATES:
X,Y,Z AXES: 1,900 IPM
A AXIS: 30 RPM
C AXIS: 50 RPM
CUTTING FEED RATES:
X,Y,Z AXES: 0.0004 ~ 1,900 IPM
A AXIS: 0 ~ 30 RPM
C AXIS: 0 ~ 50 RPM
MINIMUM RESOLUTION:
X,Y,Z AXES: 0.0000039"
A & C AXES: 0.0001 DEG.
X,Y,&Z AXES: LINEAR SCALE FEEDBACK
A & C AXES: PRECISION ROTARY ENCODER
MAX CUTTING FORCE: 1102 LBS.
SPINDLE SPEED: 15,000 RPM
SPINDLE TAPER: CT 40
SPINDLE MOTOR: 10 HP
SPINDLE TORQUE: 48 FTLBS
TOOL CLAMP FORCE: 1769 LBS
AUTOMATIC TOOL CHANGER: 40 A.T.C
ELECTRICAL: AC 200/220V,
3 PHASE 50/60HZ, 60 KVA
AIR REQUIRED: 0.4 MPa, 1.0 m3/min
1200N lITER FOR STANDARD
FLOOR SPACE: 14.1'x10.8'
AXES POSITIONING ACCURACY:
X,Y,Z AXIS REPEATABILITY: +-0.00004"
A AXIS: +- 3 SEC.
C AXIS REPEATABILITY FOR ROTARY TABLE: +- 2 SEC.
EQUIPPED WITH:
FANUC 31iM CNC 5-AXIS CNC CONTROL
HI PRESSURE COOLANT THROUGH WITH CYCLONE FILTER
SCALES AND LOADED WITH OPTIONS!!
CHIP CONVEYOR
X,Y,Z AXES: ABSOLUTE LINEAR CLASS SCALE (HEIDENHAIN)
A AND C AXES: ABSOLUTE ROTARY INDUCTOSYN SCALE (MITSUBISHI)
DIRECT DRIVE SYSTEM
JIS B6339 PULL STUD
CERAMIC TYPE BALL BEARINGS
SPINDLE ORIENTATION: ELECTRIC SERVO SYSTEM
SYNCHRONIZE OIL TEMP WITH ROOM TEMPERATURE
OIL & AIR SPINDLE LUBRRICATION
-BANK OWNED !!
-MACHINE SELLS NEW FOR 450K
-MACHINE HOLDS MICRONS !!
178 CUTTING HOURS !!!!
NEW 2008
SPECIFICATIONS:
TABLE SIZE: 15.7"x15.7"
MAX TABLE WEIGHT: 770 LBS
MOMENT: 148 LBFT.
TABLE SURFACE: TAPPED HOLE M12
HEIGHT FROM FLOOR TO TABLE TOP: 35.43"
TRAVELS:
X-AXIS: 21.7"
Y-AXIS: 23.6"
Z-AXIS: 19.7"
A-AXIS: +15~-105 DEG.
C-AXIS: 360 DEG.
DIST FROM SPINDLE TO TABLE: 3.94"-23.6"
MAX WORK SIZE: 19.7"x12.7"
MAX WORK SIZE WITH MAX TOOL DIA: 19.7"x12.7"
RAPID TRAVERSE RATES:
X,Y,Z AXES: 1,900 IPM
A AXIS: 30 RPM
C AXIS: 50 RPM
CUTTING FEED RATES:
X,Y,Z AXES: 0.0004 ~ 1,900 IPM
A AXIS: 0 ~ 30 RPM
C AXIS: 0 ~ 50 RPM
MINIMUM RESOLUTION:
X,Y,Z AXES: 0.0000039"
A & C AXES: 0.0001 DEG.
X,Y,&Z AXES: LINEAR SCALE FEEDBACK
A & C AXES: PRECISION ROTARY ENCODER
MAX CUTTING FORCE: 1102 LBS.
SPINDLE SPEED: 15,000 RPM
SPINDLE TAPER: CT 40
SPINDLE MOTOR: 10 HP
SPINDLE TORQUE: 48 FTLBS
TOOL CLAMP FORCE: 1769 LBS
AUTOMATIC TOOL CHANGER: 40 A.T.C
ELECTRICAL: AC 200/220V,
3 PHASE 50/60HZ, 60 KVA
AIR REQUIRED: 0.4 MPa, 1.0 m3/min
1200N lITER FOR STANDARD
FLOOR SPACE: 14.1'x10.8'
AXES POSITIONING ACCURACY:
X,Y,Z AXIS REPEATABILITY: +-0.00004"
A AXIS: +- 3 SEC.
C AXIS REPEATABILITY FOR ROTARY TABLE: +- 2 SEC.
EQUIPPED WITH:
FANUC 31iM CNC 5-AXIS CNC CONTROL
HI PRESSURE COOLANT THROUGH WITH CYCLONE FILTER
SCALES AND LOADED WITH OPTIONS!!
CHIP CONVEYOR
X,Y,Z AXES: ABSOLUTE LINEAR CLASS SCALE (HEIDENHAIN)
A AND C AXES: ABSOLUTE ROTARY INDUCTOSYN SCALE (MITSUBISHI)
DIRECT DRIVE SYSTEM
JIS B6339 PULL STUD
CERAMIC TYPE BALL BEARINGS
SPINDLE ORIENTATION: ELECTRIC SERVO SYSTEM
SYNCHRONIZE OIL TEMP WITH ROOM TEMPERATURE
OIL & AIR SPINDLE LUBRRICATION
-BANK OWNED !!
-MACHINE SELLS NEW FOR 450K
-MACHINE HOLDS MICRONS !!
178 CUTTING HOURS !!!!
