MIGHTY COMET
Type:
Vertical Machining Centers
Manufacturer:
MIGHTY
Model:
COMET
Condition:
Not Specified
Year:
1996
Stock #:
28145
Status:
Sold
Description:
MITSUBUSHI 520A CNC CONTROL, 20 TOOLS, 60x30x20, BOX WAYS
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

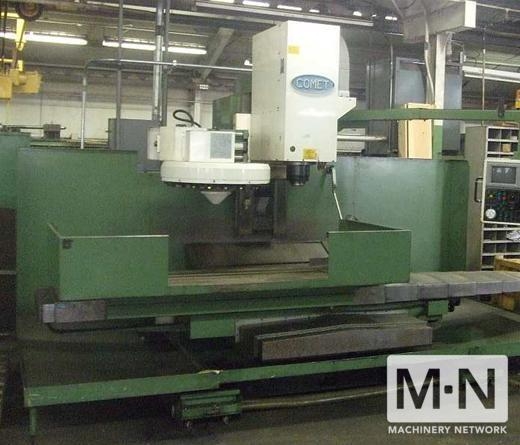

(1) MIGHTY COMET "VIPER" CNC VERTICAL MACHINING CENTER
NEW 1996
SPECIFICATIONS:
X-AXIS TRAVEL 58.5"
Y-AXIS TRAVEL 28.5"
Z-AXIS TRAVEL 24.5"

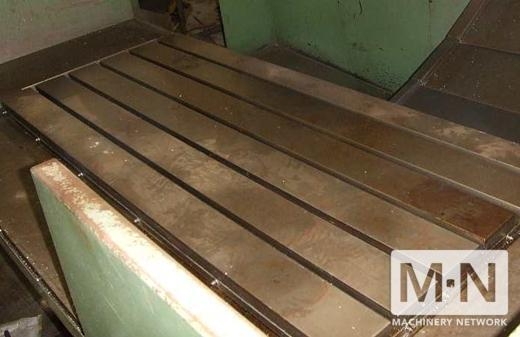

TABLE WORKING SURFACE 63" X 30"
TABLE WEIGHT CAPACITY 3,000 LBS
DIST OF SPINDLE END TO TABLE 7.4" TO 31.9"
DIST OF SPINLDE CENTER TO COLUMN 27"
SPINDLE TAPER BT- 50
SPINDLE SPEED (2 SPEED GEARED HEAD) 50 TO 4,250 RPM
SPINDLE DRIVE MOTOR 20 HP HIGH TORQUE AC MOTOR
CUTTING FEED RATE 0 TO 276 IPM
RAPID TRAVERSE 590 IPM

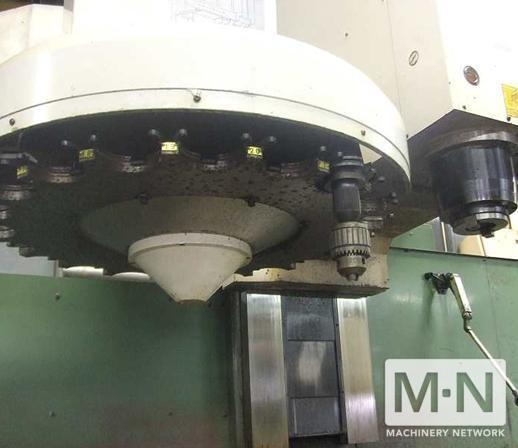

TOOL STORAGE CAPACITY 20 ATC
MAX TOOL WEIGHT 33 LBS
MAX TOOL SIZE (DIAMETER X LENGTH) 6" X 15"
APPROX MACHINE DIMENSIONS 149" X 110" X 110"
APPROX MACHINE WEIGHT 25,000 LBS
EQUIPPED WITH:

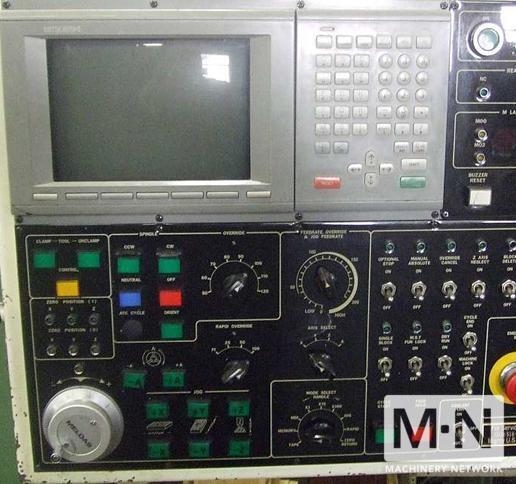

MITSUBUSHI 520A CNC CONTROL
CANNED CYCLES
CUSTOM MACROS & VARIABLES
GRAPHICS
DRY RUN FUNCTION
PITCH ERROR COMP
AUTO POWER OFF
HIGH SPEED RIGID TAP
HELICAL & CIRCULAR INTERPOLATION
RS-232 PORT
BOX WAYS ALL AXES
FULL CHIP ENCLOSURE & COOLANT
AIR BLAST THRU SPINDLE
THIS MACHINE IS UNDER POWER AND AVAILABLE FOR INSPECTION
NEW 1996
SPECIFICATIONS:
X-AXIS TRAVEL 58.5"
Y-AXIS TRAVEL 28.5"
Z-AXIS TRAVEL 24.5"
TABLE WORKING SURFACE 63" X 30"
TABLE WEIGHT CAPACITY 3,000 LBS
DIST OF SPINDLE END TO TABLE 7.4" TO 31.9"
DIST OF SPINLDE CENTER TO COLUMN 27"
SPINDLE TAPER BT- 50
SPINDLE SPEED (2 SPEED GEARED HEAD) 50 TO 4,250 RPM
SPINDLE DRIVE MOTOR 20 HP HIGH TORQUE AC MOTOR
CUTTING FEED RATE 0 TO 276 IPM
RAPID TRAVERSE 590 IPM
TOOL STORAGE CAPACITY 20 ATC
MAX TOOL WEIGHT 33 LBS
MAX TOOL SIZE (DIAMETER X LENGTH) 6" X 15"
APPROX MACHINE DIMENSIONS 149" X 110" X 110"
APPROX MACHINE WEIGHT 25,000 LBS
EQUIPPED WITH:
MITSUBUSHI 520A CNC CONTROL
CANNED CYCLES
CUSTOM MACROS & VARIABLES
GRAPHICS
DRY RUN FUNCTION
PITCH ERROR COMP
AUTO POWER OFF
HIGH SPEED RIGID TAP
HELICAL & CIRCULAR INTERPOLATION
RS-232 PORT
BOX WAYS ALL AXES
FULL CHIP ENCLOSURE & COOLANT
AIR BLAST THRU SPINDLE
THIS MACHINE IS UNDER POWER AND AVAILABLE FOR INSPECTION
