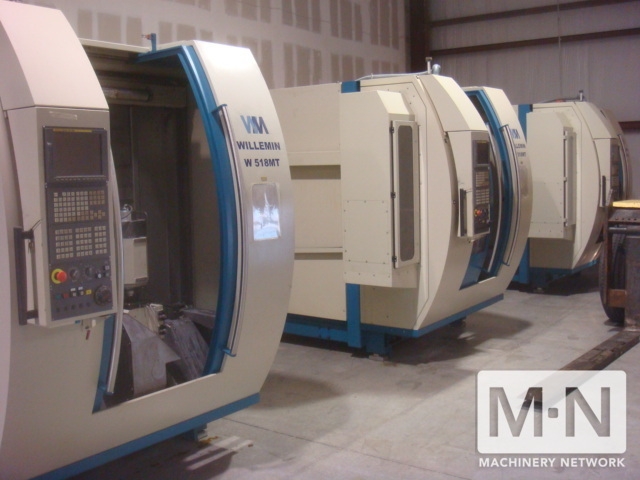

WILLEMIN 518MT

Type:

Vertical Machining Centers

Manufacturer:

WILLEMIN

Model:

518MT

Condition:

Not Specified

Year:

2004

Stock #:

27556

Status:

Sold

Description:

8-AXIS MILL-TURN CENTER, 24.8x12.6x19.7, RENISHAW PROBE, RT, 2.5" BAR CAP, 24 ATC, TOOLING, 20KRPM, 21.5HP

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) WILLEMAN-MACODEL 518MT 8-AXIS MILL-TURN CENTER
5 AXIS SIMULTANEOUS MULTI-PROCESS MACHINING CENTER
NEW: 2004

SPECIFICATIONS:
Control Fanuc 16i MB
Serial Number 103
X Axis Travel 630mm/ 24.8"
Y Axis Travel 320mm/ 12.6"
Z Axis Travel 500mm/ 19.7"
B Axis Angular movement -10 degrees / +100 degrees
A Axis Milling
A Axis 360 degree /S2 = 3,000 rpm(turning)
U Axis 400mm (16")
W Axis 360 degree - increment 0.02 degree
Bar Capacity 65mm/ 2.56"
Tool Changer 24 ATC
Tooling HSK-A63
Spindle Speed 20,000 rpm
Horsepower 21.5 hp

EQUIPPED WITH:
Renishaw Probing
Rigid Tapping
Coolant tank
All available manuals
Excellent Condition – Machine from Medical Facility. Machines were properly prepared and inspected by Willemin Serviceman.

Location: Florida - Warehouse
New Price $465,000
