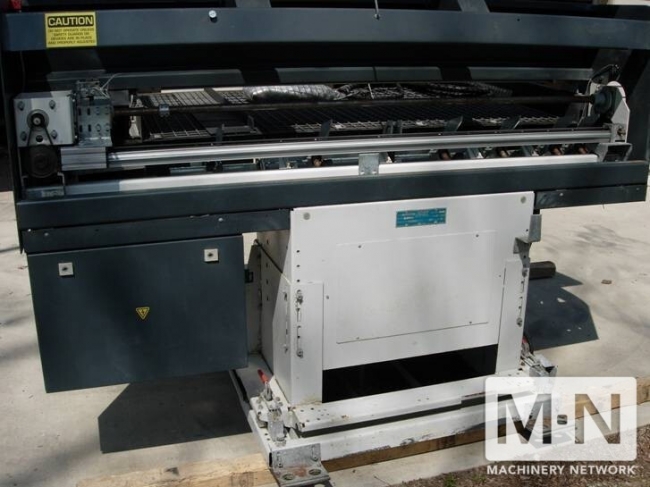

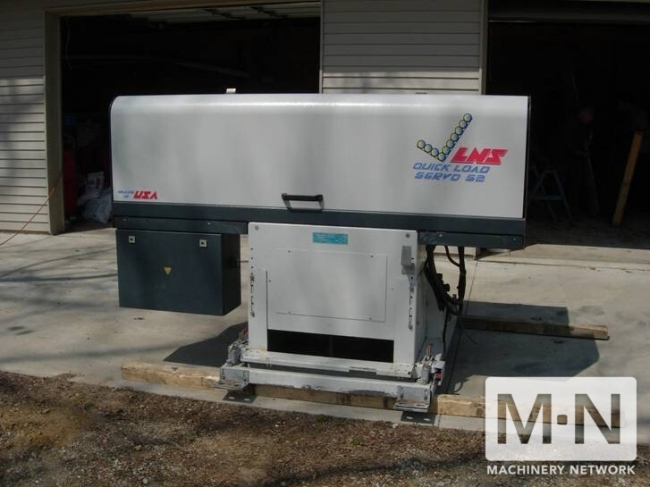

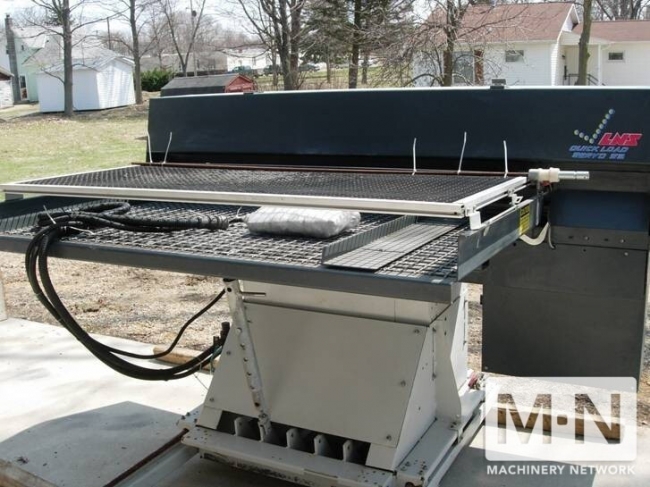

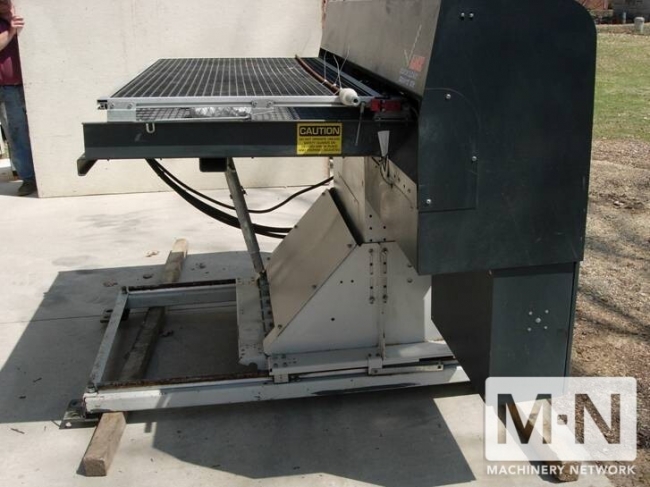

LNS QUICK LOAD SERVO S2

Type:

BAR LOADER/MAGAZINE TYPE, (Hydraulic & Mech.)

Manufacturer:

LNS

Model:

QUICK LOAD SERVO S2

Condition:

Not Specified

Year:

2002

Stock #:

26624

Status:

Sold

Description:

4.75" MAX DIAMETER, 63" MAX LENGTH, 4000 IPM FEED RATE

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

1) USED LNS QUICK LOAD SERVO S2 BARFEEDER NEW:2002

VOLTAGE: 220V 3PH

CATALOGUE SPECIFICATIONS:

Round Bar Diameter Capacity ...................... 1/4" to 4-3/4" Range

Maximum Feed Length For Bars...................... 63"

Height Floor to Feed Guide (Adjustable) .......... 35.5" - 55"

Maximum Feed Rate................................. 4000 IPM

Complete Changeover Time of Different Diameters... 15 Seconds

Complete Load Cycle Time of New Bar Stock......... 15 Seconds

Approximate Machine Dimensions.................... 54" x 81"

Approximate Machine Height........................ 69"

Approximate Machine Weight........................ 1,750 lbs

MACHINE DESCRIPTION: The Quick Load Servo S2 Automatically Makes all Changeover Adjustments after Answering Three Simple Questions Prompted by the Remote Control. 1) Shape? 2) Diameter? 3) Part Length? Changeover is Complete in Seconds. The Quick Load Servo S2 Takes the Information and Automatically Makes These Adjustments: All Bar Feed Mechanical Adjustments are Made to the Centerline of Machine Spindle, Storage Rack Loading Mechanism Adjusts to Bar Diameter, Ensuring One Bar is Loaded at a Time, Feed Rate is Adjusted, Torque Rate is Adjusted, The X or Z-Axis Retract System Allows Quick and Easy Change of the Lathe Spindle Liners.
