FLOW AF-6080

Type:

WATER JET CUTTING, CNC

Manufacturer:

FLOW

Model:

AF-6080

Condition:

Not Specified

Year:

2005

Stock #:

25818

Status:

Sold

Description:

6x8, 5 Axis, 50 HP, Siemens 840D ctrl, ESL pump, Paser head

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

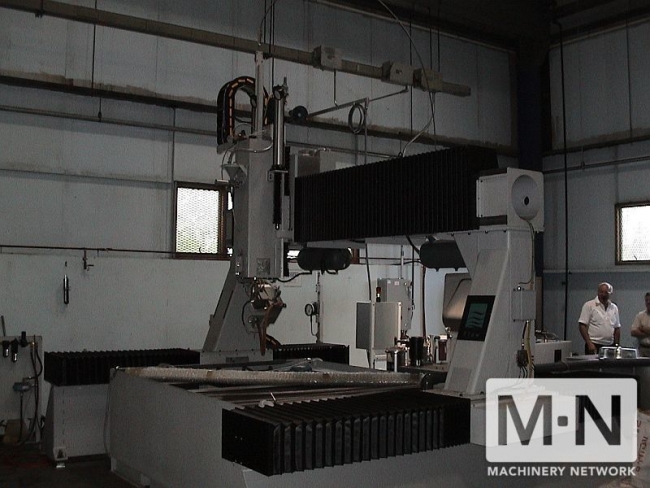

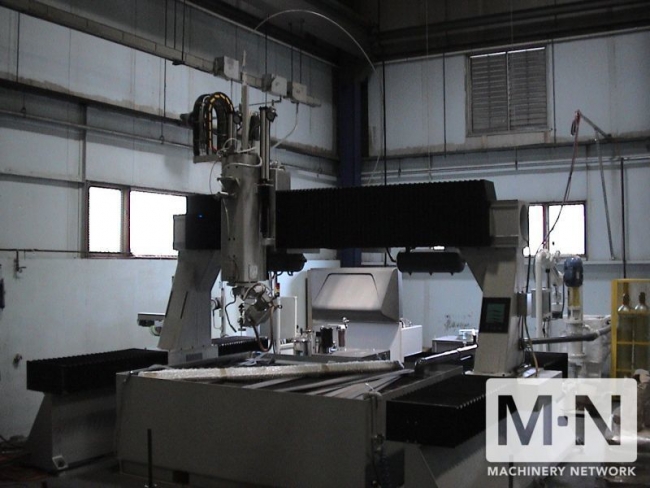

(1) USED 6'x8' FLOW MODEL AF-6080 5 AXIS WATERJET CUTTING SYSTEM - NEW 2005

SYSTEM HAS NEVER BEEN USED!

SPECIFICATIONS:
TRAVELS - X AXIS: 72"
- Y AXIS: 96"
- Z AXIS: 24"
- C AXIS: 360 DEG.
- B AXIS: 180 DEG (+/- 90 DEG)
FEEDRATES - X, Y & X AXES: 10-600 IPM
- C & B AXES: 90 DEG/SEC
POSITIONING ACCURACY - X,Y & Z: +/- .005"
- C & B: +/- .50 DEG
MACHINE REPEATABILITY - X, Y & Z: +/- .003"
- C & B: +/- .25 DEG.
MAX. PUMP OUTPUT PRESSURE 60,000 PSI
PUMP MOTOR: 50 HP

EQUIPPED WITH:

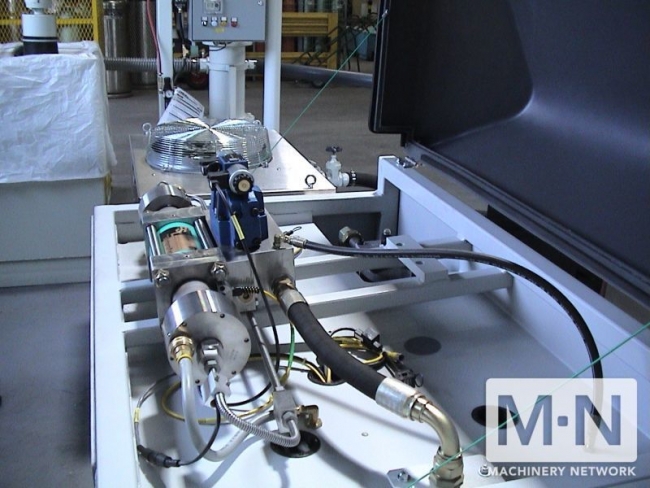

FLOW 7XES-60 ESL 50 HP INTENSIFIER PUMP

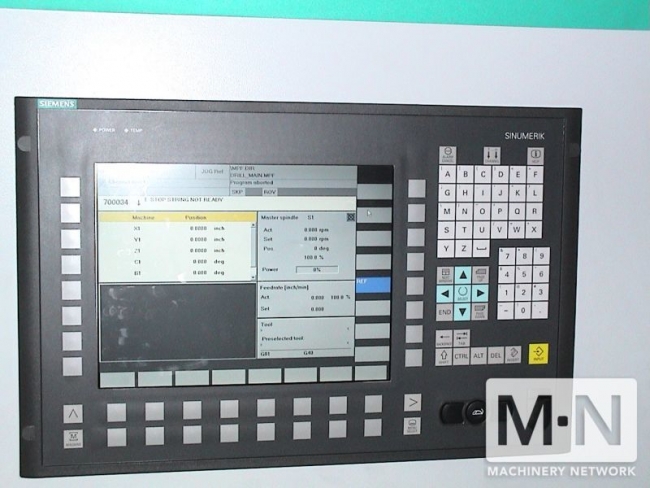

SIEMENS 840D 32-BIT CNC CONTROLLER WITH EXPANDED MEMORY

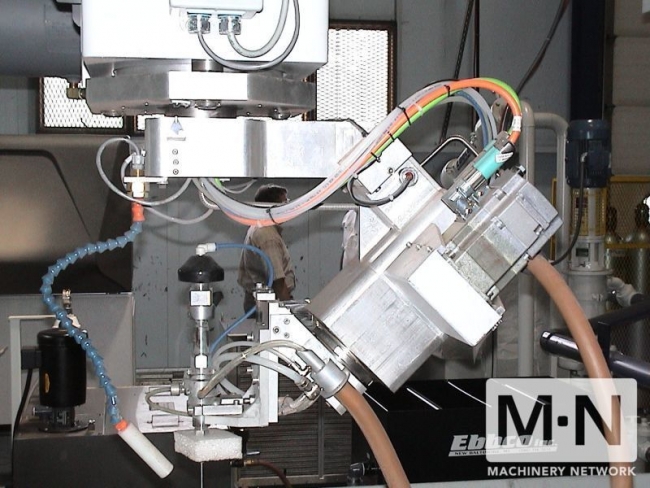

PASER ECL PLUS ABRASIVEJET 5 AXIS CUTTING HEAD
BULK MEDIA HOPPER
COMPLETE ASSORTMENT OF CONSUMMABLE PARTS
LARGE AMOUNT OF UNUSED GARNET
FULL FLOW WARRANTY

EBBCO FILTRATION AND GARNET REMOVAL SYSTEM AVAILABLE
