SACEM MST-110

Type:

BORING MILLS, HORIZONTAL, TABLE TYPE

Manufacturer:

SACEM

Model:

MST-110

Condition:

Not Specified

Year:

1974

Stock #:

25621

Status:

Sold

Description:

4-3/8" SPINDLE DIAMETER, ISO #50, 1200 RPM, 25HP, ROTARY TABLE

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

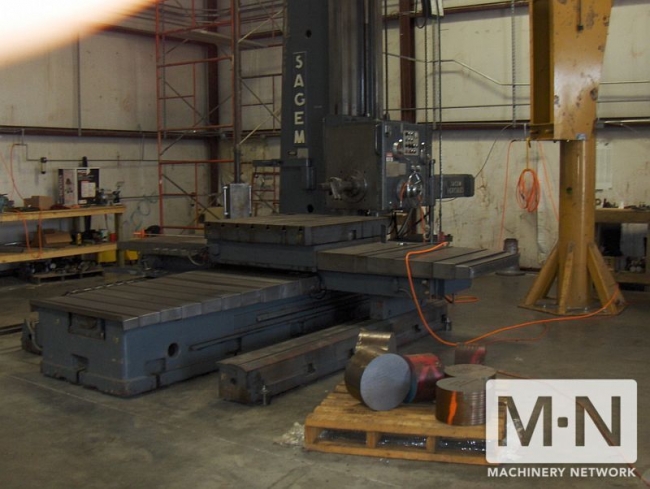

1) USED SACEM 4-3/8" TABLE-TYPE HORIZONTAL BORING MILL
MODEL MST-110 NEW: 1974

SPECIFICATIONS:

SPINDLE DIAMETER: 4-3/8"
SPINDLE TAPER: ISO #50
SPINDLE TRAVEL(W-AXIS): 35.5"
TABLE CROSS TRAVEL(X-AXIS): 78.75"
SPINDLE HEAD VERTICAL TRAVEL(Y-AXIS): 78.75"
SADDLE TRAVEL WITH TAILSTOCK:(Z-AXIS): 59"
WITHOUT TAILSTOCK: 83"
TABLE DIMENSIONS, L X W: 49-5/8" X 55"
TABLE LOAD CAPACITY: MAX 17,600 LBS
SPINDLE SPEEDS RANGE(18): 6-1200 RPM
SPINDLE FEEDS RANGE (35): 0.001-0.5 IPM
METRIC PITCH RANGE(14): 0.25-12MM
WHITWORTH PITCHES(14): 2-96 TPI
POWER RAPID TRAVERSE: 78.75"
SPINDLE MOTOR: 25 HP
FLOOR SPACE R-L X F-B APPROX: 254-1/8" X 137-3/8"
OVERALL HEIGHT: 181-3/4"
APPROXIMATE WEIGHT: 45,200 LBS

EQUIPPED WITH:
POWER DRAW BAR

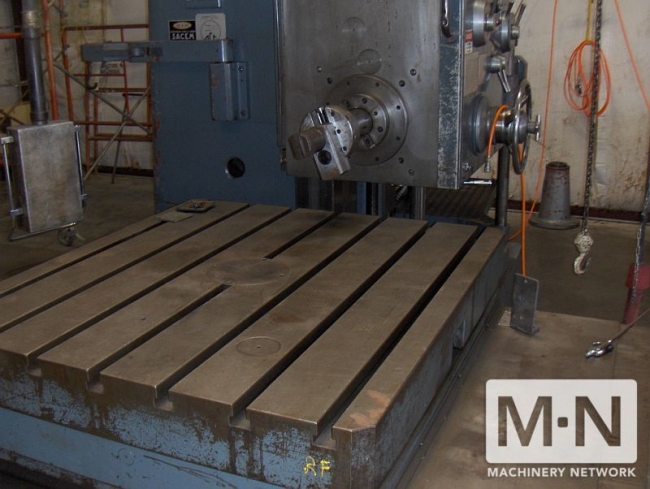

ROTARY TABLE
TAILSTOCK
INCH/METRIC THREADING
SPINDLE STIFFNER
TELESCOPIC STEEL WAY COVERS (PRISTINE CONDITION) FOR LONGITUDINAL & CROSS TRAVELS
RAPID TRAVERSE
ALL AVAILABLE MANUAL
