TOSHIBA VMC-85E
Type:
Vertical Machining Centers
Manufacturer:
TOSHIBA
Model:
VMC-85E
Condition:
Not Specified
Year:
1994
Stock #:
25217
Status:
Sold
Description:
TOSNUC 777 CONTROL, 98"X33.5"X27.5" , CAT 50 , 40 ATC, 4500 RPM
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

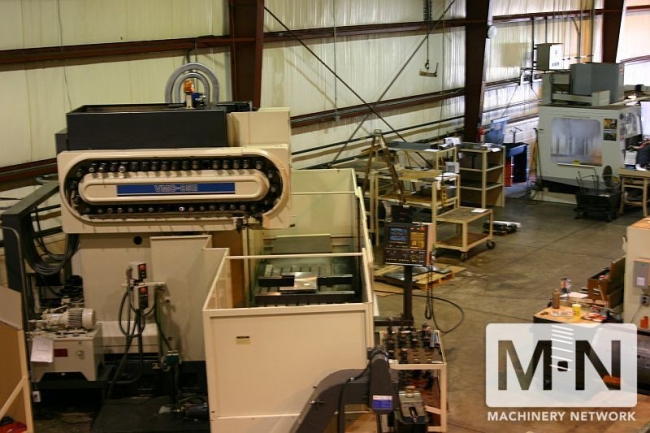

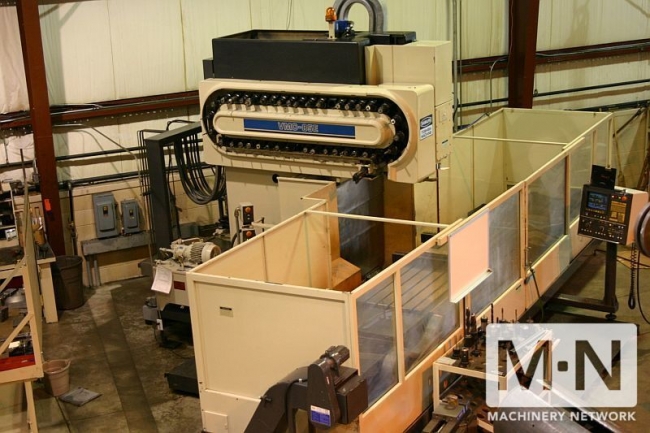

1) USED TOSHIBA MODEL VMC 85E CNC VERTICAL MACHINING CENTER
NEW 1994
SPECIFICATIONS:
TABLE SIZE 114.2" X 31.5" TABLE
TRAVEL
X - AXIS 98"
Y - AXIS 33.5"
Z - AXIS 27.5"
DIST. SPINDLE NOSE - TBL TOP 9.8" - 37.4"
TABLE LOAD CAPACITY 11,000 LBS.
SPINDLE NOSE CAT # 50
SPINDLE SPEED 20-4500 RPM
NUMBER OF GEAR RANGES 2
MAX SPINDLE TORQUE 723 FT.LBS.@ 214 RPM

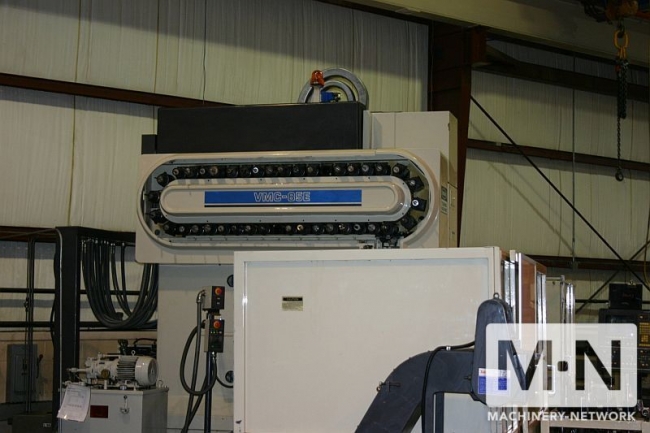

TOOL MAGAZINE 40 ATC
MAX TOOL DIA. 4.3"/7.9"
MAX TOOL WEIGHT 33 LBS.
MAX.TOOL LENGTH 17.7"
MAIN MOTOR 35/25 HP AC
MACHINE WEIGHT 40,600 LBS.
EQUIPPED WITH:

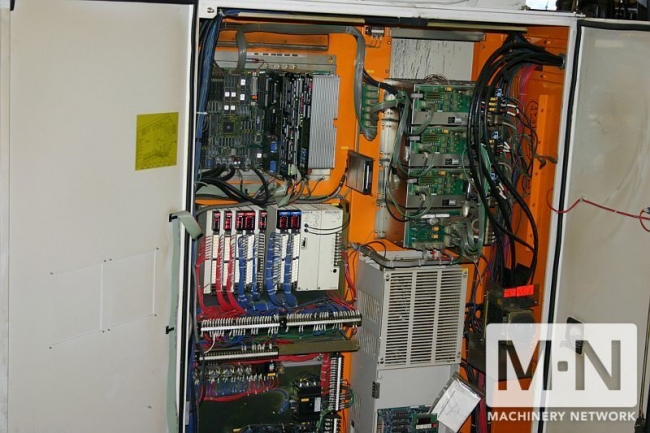

TOSNUC 777M CNC CONTROL,

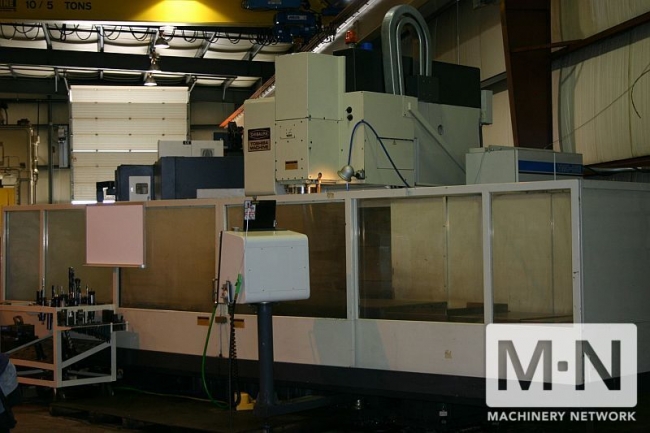

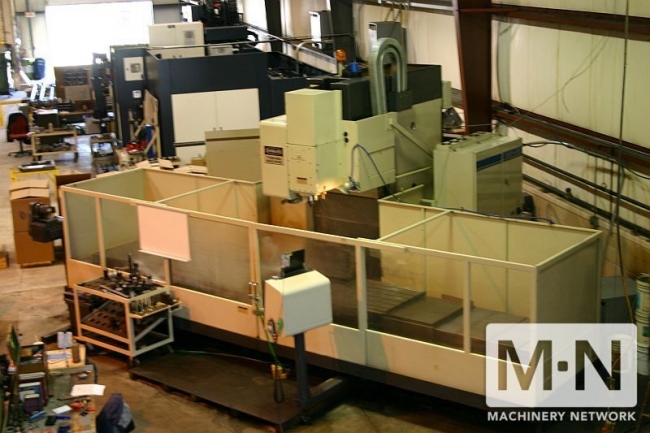

FULL ENCLOSURE

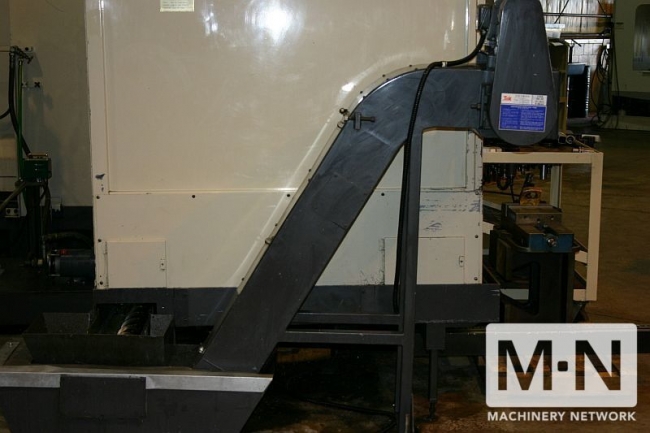

CHIP CONVEYOR
NEW 1994
SPECIFICATIONS:
TABLE SIZE 114.2" X 31.5" TABLE
TRAVEL
X - AXIS 98"
Y - AXIS 33.5"
Z - AXIS 27.5"
DIST. SPINDLE NOSE - TBL TOP 9.8" - 37.4"
TABLE LOAD CAPACITY 11,000 LBS.
SPINDLE NOSE CAT # 50
SPINDLE SPEED 20-4500 RPM
NUMBER OF GEAR RANGES 2
MAX SPINDLE TORQUE 723 FT.LBS.@ 214 RPM
TOOL MAGAZINE 40 ATC
MAX TOOL DIA. 4.3"/7.9"
MAX TOOL WEIGHT 33 LBS.
MAX.TOOL LENGTH 17.7"
MAIN MOTOR 35/25 HP AC
MACHINE WEIGHT 40,600 LBS.
EQUIPPED WITH:
TOSNUC 777M CNC CONTROL,
FULL ENCLOSURE
CHIP CONVEYOR
