VAN DORN 500HP80 WIDE PLATEN
Type:
INJECTION MOLDING, HORIZONTAL/VERTICAL
Manufacturer:
VAN DORN
Model:
500HP80 WIDE PLATEN
Condition:
Not Specified
Year:
1998
Stock #:
25163
Status:
Sold
Description:
500 TON 80 oz , PATHFINDER 5000 CONTROL ** SOLD **
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

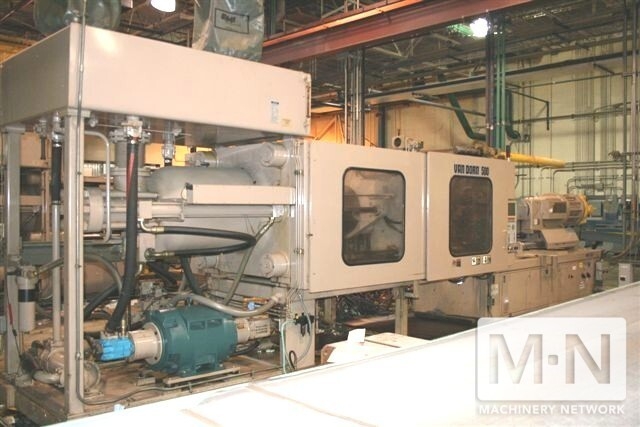

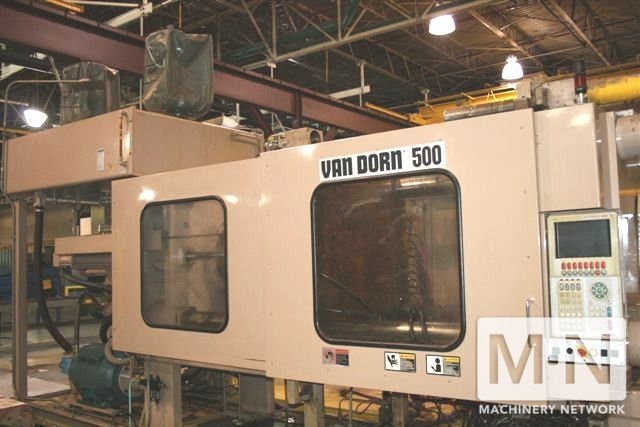

(1) USED 500-TON,80 OZ VAN DORN INJECTION MOLDING
MACHINE - MODEL 500HP80-LP " WIDE PLATEN"
SERIAL #'S 0846 MFG 5/1998
SPECIFICATIONS:
TONNAGE: 500 TONS
SHOT SIZE: 80 OZ
PLATEN DIMENSIONS: 51" X 47"
TIE BAR SPACING: 36.5" X 32.5"
EJECTOR STROKE: 6"
CLAMP STROKE: 40"
MIN/MAX MOLD HEIGHT: 12"/27.5"
MIN/MAX DAYLIGHT: 24"/67.5" WITHOUT SPACERS AND KNOCKOUT PLATE
EQUIPPED WITH:

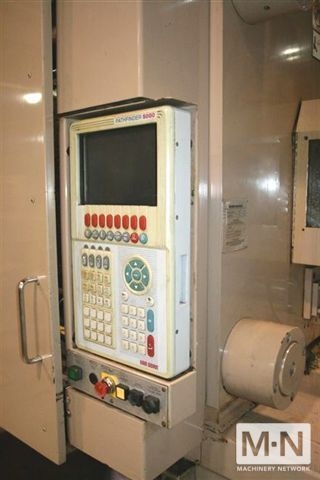

PATHFINDER 5000 CONTROL
EXTENDED TIE BARS
EXTENDED DAYLIGHT 26" W/SPACERS REMOVED
COREPULL
CORE AND EJECTOR KEY SWITCH
PREMIUM FILTRATION
ROBOT INTERFACE
MOTION NO MOTION
ROBOT INTERFACE
MACHINE - MODEL 500HP80-LP " WIDE PLATEN"
SERIAL #'S 0846 MFG 5/1998
SPECIFICATIONS:
TONNAGE: 500 TONS
SHOT SIZE: 80 OZ
PLATEN DIMENSIONS: 51" X 47"
TIE BAR SPACING: 36.5" X 32.5"
EJECTOR STROKE: 6"
CLAMP STROKE: 40"
MIN/MAX MOLD HEIGHT: 12"/27.5"
MIN/MAX DAYLIGHT: 24"/67.5" WITHOUT SPACERS AND KNOCKOUT PLATE
EQUIPPED WITH:
PATHFINDER 5000 CONTROL
EXTENDED TIE BARS
EXTENDED DAYLIGHT 26" W/SPACERS REMOVED
COREPULL
CORE AND EJECTOR KEY SWITCH
PREMIUM FILTRATION
ROBOT INTERFACE
MOTION NO MOTION
ROBOT INTERFACE
