CHIRON DZ-18W MAGNUM

Type:

MACHINING CENTERS, VERTICAL, N/C & CNC

Manufacturer:

CHIRON

Model:

DZ-18W MAGNUM

Condition:

Not Specified

Year:

1998

Stock #:

24862

Status:

Sold

Description:

FANUC 21M, 3 AXIS, 2 APC, MOVING COLUMN, 2 X 36ATC, CAT 40, 10,500 RPM

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

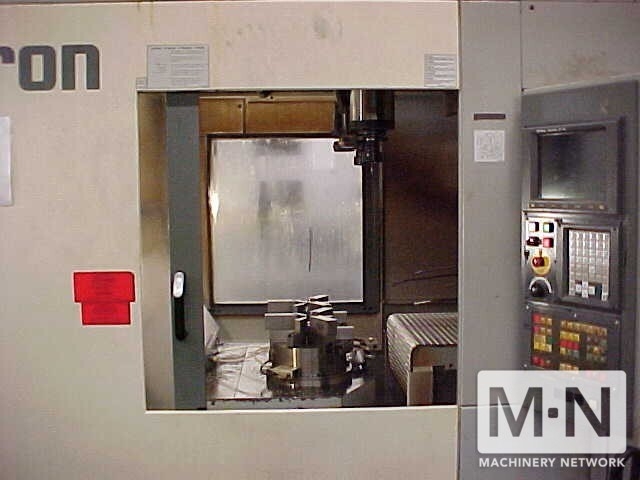

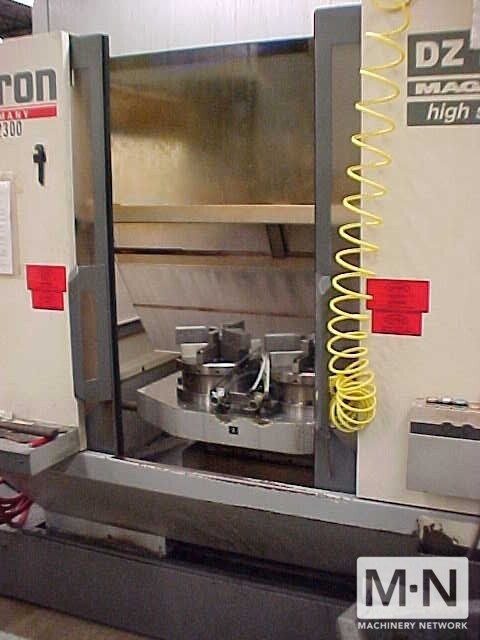

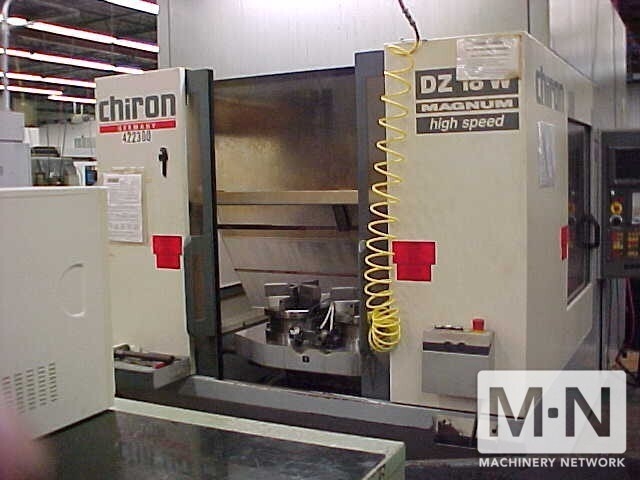

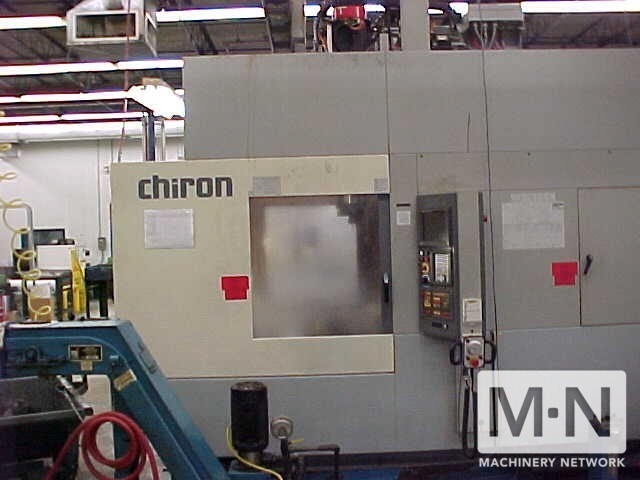

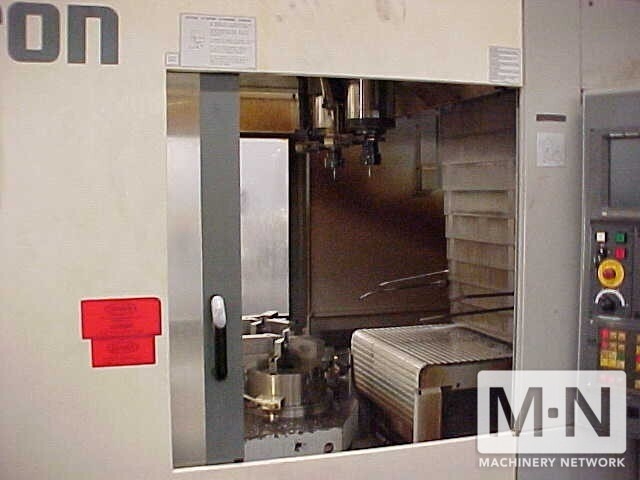

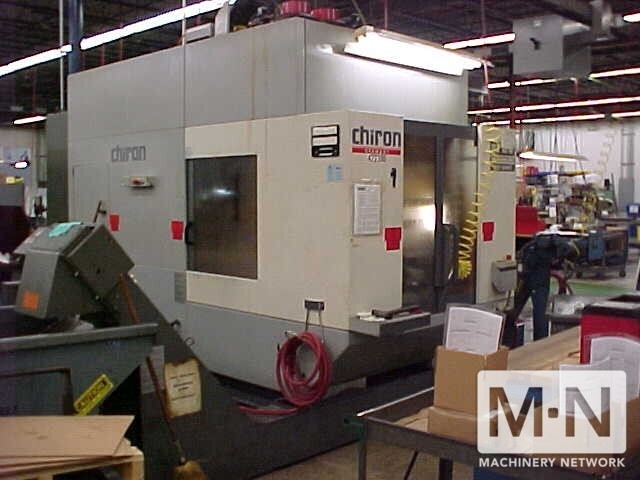

1) USED CHIRON DZ-18W MAGNUM CNC TWIN SPINDLE MOVING COLUMN VERTICAL MACHINING CENTER WITH 2APC NEW 1998

SPECIFICATIONS:
TRAVEL - X AXIS: 16"
- Y AXIS: 16"
- Z AXIS: 25"
SPINDLE DISTANCE IN X-AXIS: 12.5"
CLAMPING SURFACE: 2 X 33.5"X18.5"
SPINDLE SPEED: 10,050 RPM
MAIN MOTOR: 20/25 HP
SPINDLE TAPER: CAT 40
TOOLS: X X 36 ATC
MAX. TOOL DIA: 2.5"
MAX. TOOL WEIGHT: 11"
MAX. WEIGHT OF WORK PIECE: 550/880 LBS
TOOL CHANGE TIME 0.9 SECONDS
CHIP-TO-CHIP TIME 2.4 SECONDS

EQUIPPED WITH:
FANUC 21M CNC CONTROL
RIGID TAPPING
HELICAL & CIRCULAR & 3D INTERPOLATION
METRIC/INCH SWITCHABLE
DRILLING AND MILLING CYCLES
32 TOOL OFFSETS
SPINDLE ORIENTATION
CHIP CONVEYOR
